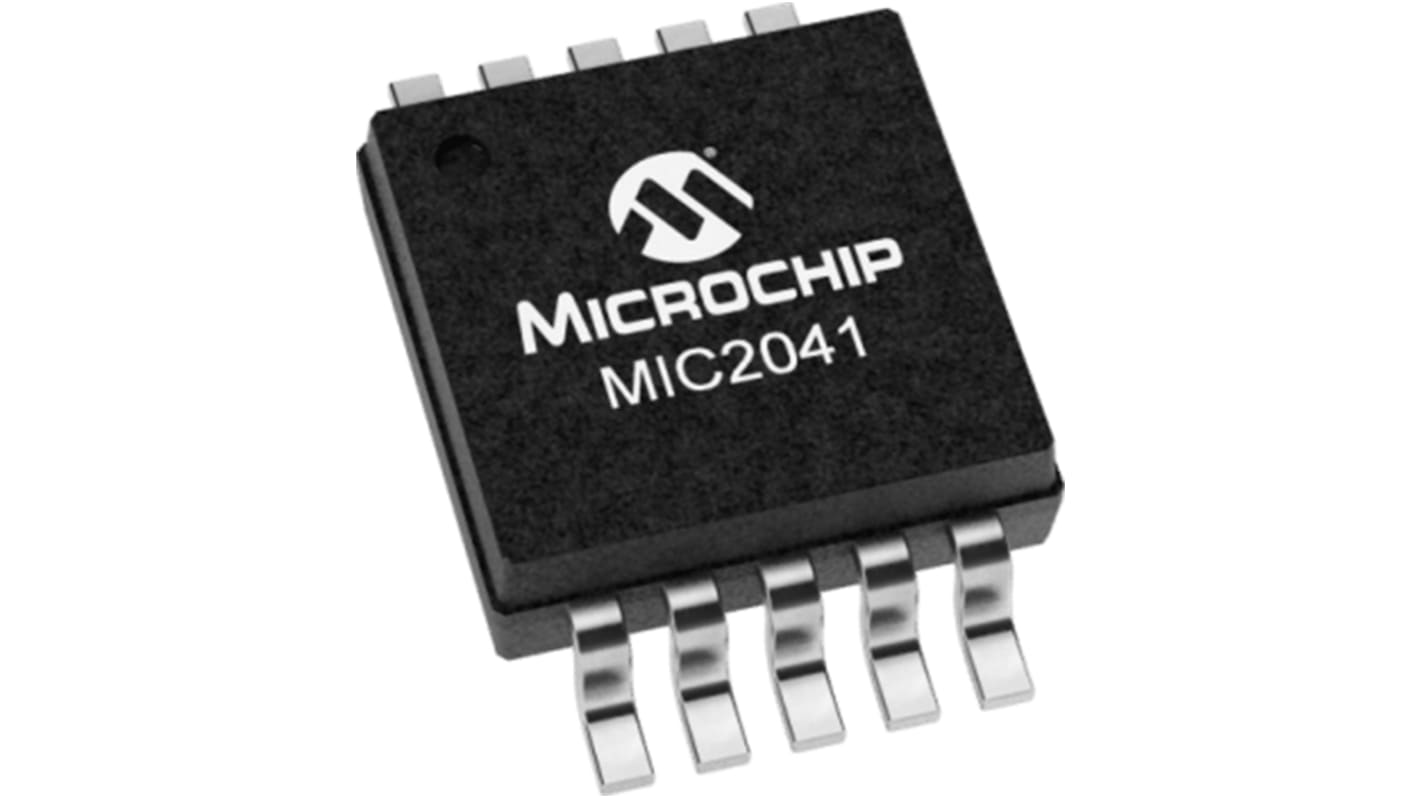

Microchip MIC2041-1YMM, 1High Side, High Side Switch Power Switch IC 10-Pin, MSOP
- RS Stock No.:
- 177-0551
- Mfr. Part No.:
- MIC2041-1YMM
- Brand:
- Microchip
Available to back order for despatch when stock is available
Added
Price Each (In a Pack of 10)
£0.669
(exc. VAT)
£0.803
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 + | £0.669 | £6.69 |
| *price indicative | ||
- RS Stock No.:
- 177-0551
- Mfr. Part No.:
- MIC2041-1YMM
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The MIC2040 and MIC2041 are high side MOSFET switches optimized for general purpose power distribution applications that require circuit protection. The devices switch up to 5.5V and as low as 0.8V while offering both programmable current limiting and thermal shutdown to protect the device and the load.
75mΩ max. on-resistance
0.8V to 5.5V operating range
Adjustable current limit
Up to 1.5A continuous output current
Short circuit protection with thermal shutdown
Circuit breaker mode (MIC2041)
75mΩ max. on-resistance
0.8V to 5.5V operating range
Adjustable current limit
Up to 1.5A continuous output current
Short circuit protection with thermal shutdown
Circuit breaker mode (MIC2041)
Fault status flag
Undervoltage lockout
Output MOSFET reverse current flow block when disabled
Very fast reaction to short-circuits
Low quiescent current
0.8V to 5.5V operating range
Adjustable current limit
Up to 1.5A continuous output current
Short circuit protection with thermal shutdown
Circuit breaker mode (MIC2041)
75mΩ max. on-resistance
0.8V to 5.5V operating range
Adjustable current limit
Up to 1.5A continuous output current
Short circuit protection with thermal shutdown
Circuit breaker mode (MIC2041)
Fault status flag
Undervoltage lockout
Output MOSFET reverse current flow block when disabled
Very fast reaction to short-circuits
Low quiescent current
Specifications
Attribute | Value |
|---|---|
| Power Switch Type | High Side Switch |
| Power Switch Topology | High Side |
| Switch On Resistance | 75mΩ |
| Number of Channels | 1 |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Current | 1.5A |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Pin Count | 10 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3 x 3 x 0.92mm |
| Series | MIC2040 |
