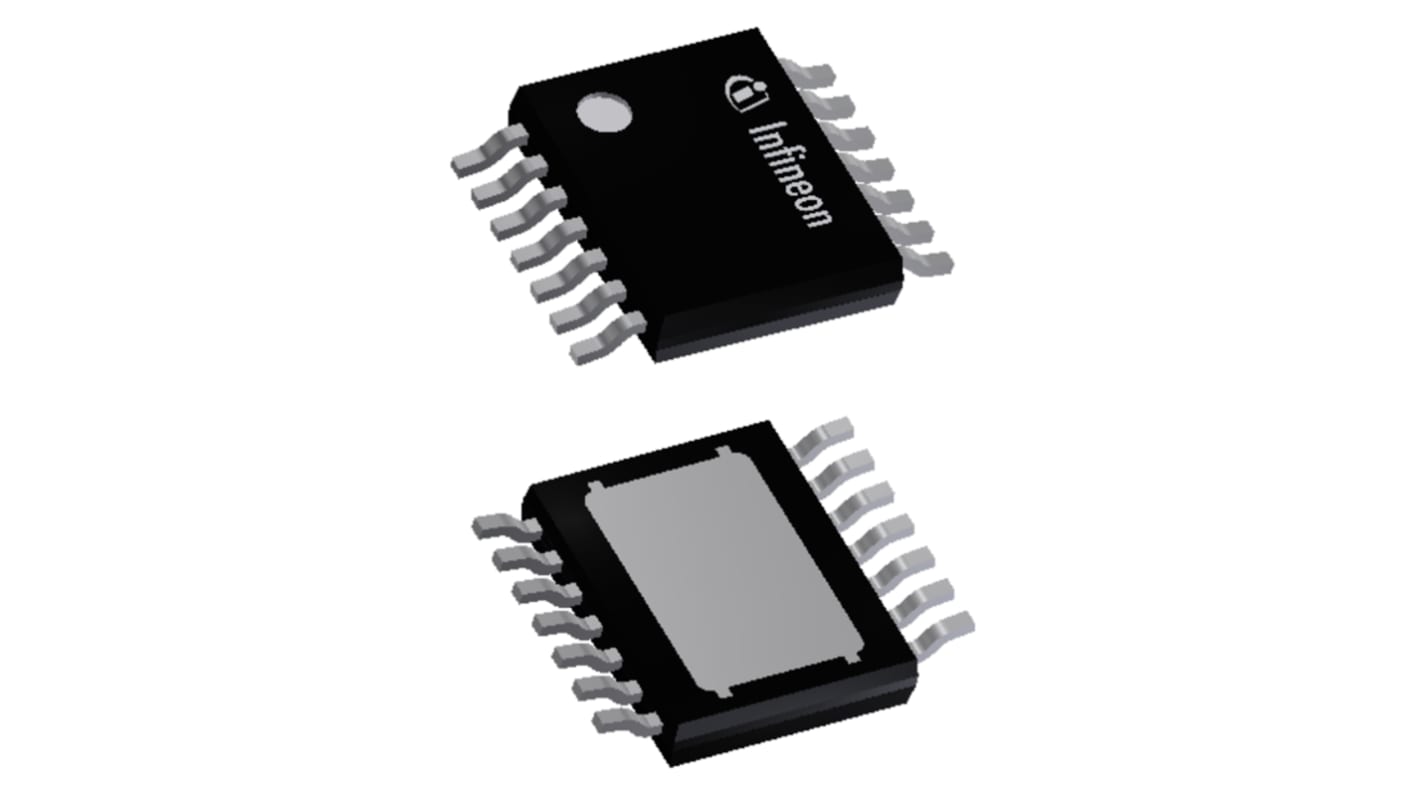

Infineon BTS70041EPPXUMA1, 1High Side, High Side Power Switch IC 14-Pin, TSDSO

  • RS Stock No. 175-1418
  • Mfr. Part No. BTS70041EPPXUMA1
  • Brand Infineon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

Infineon

The BTS7004-1EPP is a smart high side power switch, providing protection functions and diagnosis. It has an electric rating of 28V and 3mA and nominal load current 15A (DC). This device is used in a potential application.

Features and Benefits

• Absolute and dynamic temperature limitation with controlled reactivation
• Capable for inrush currents up to 107A
• Green product (RoHS compliant)
• High current PROFET™ 12V family
• Open load in on and off state
• Operating temperature ranges between -40°C and 150°C
• Overcurrent protection (tripping) with Intelligent latch
• Overvoltage protection with external components
• Proportional load current sense with high accuracy (+/-5% calibrated)
• Qualified in accordance with AEC Q100 grade 1
• ReverSave™ for low power dissipation in reverse polarity
• ReverSave™ for low power dissipation in reverse polarity
• Short circuit to ground and battery detection
• Typical Rds(on) of 4mΩ @ 25°C in small TSDSO-14 package

Specifications
Attribute Value
Power Switch Type High Side
Power Switch Topology High Side
Switch On Resistance 8mΩ
Number of Channels 1
Maximum Operating Supply Voltage 28 V
Maximum Operating Current 3mA
Mounting Type Surface Mount
Package Type TSDSO
Pin Count 14
Maximum Operating Temperature +150 °C
Minimum Operating Temperature -40 °C
Dimensions 4.9 x 3.9 x 0.95mm
Available to back order for despatch 24/03/2021
Price Each (On a Reel of 3000)
£ 0.985
(exc. VAT)
£ 1.182
(inc. VAT)
Units
Per unit
Per Reel*
3000 +
£0.985
£2,955.00
*price indicative
