- RS Stock No.:
- 790-3319
- Mfr. Part No.:
- FTR-F1CA012V
- Brand:
- Fujitsu
- RS Stock No.:
- 790-3319
- Mfr. Part No.:
- FTR-F1CA012V
- Brand:
- Fujitsu
Technical Reference
Legislation and Compliance
Product Details

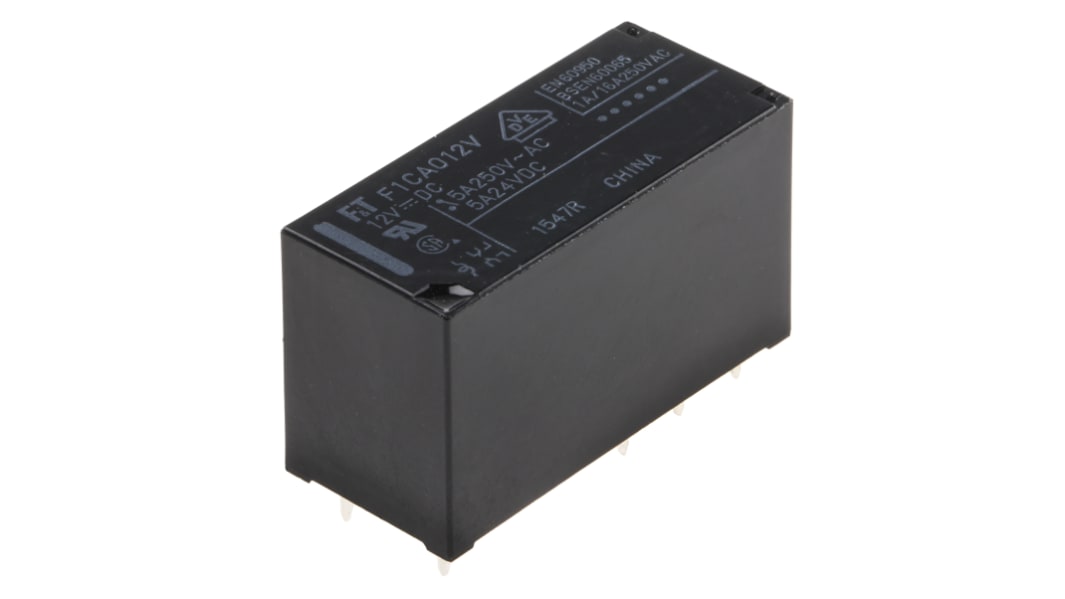

FTR-F1 Series Power Relay
FTR-F1 Low profile power relay from Fujitsu.
2 Form C contact form
Gold plated silver tin oxide contacts
Contact Rating 5 A @ 250 V ac / 24 V dc
Gold plated silver tin oxide contacts
Contact Rating 5 A @ 250 V ac / 24 V dc
Standards
UL, CSA
Fujitsu
Specifications
Attribute | Value |
---|---|
Coil Voltage | 12V dc |
Contact Configuration | DPDT |
Mounting Type | PCB Mount |
Switching Current | 5A |
Number of Poles | 2 |
Latching | No |
Terminal Type | PCB Pin |
Maximum Switching Voltage AC | 400V ac |
Maximum Switching Voltage DC | 300V dc |
Length | 29mm |
Coil Resistance | 270Ω |
Coil Power | 530mW |
Life | 100 x 10³ Operations |
Height | 16.5mm |
Isolation Coil To Contact | 10kV |
Depth | 12.8mm |
Contact Material | Gold Plated |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +75°C |
Maximum Switching Power AC | 1.25 kVA |
Maximum Switching Power DC | 120 W |
Application | Power |
