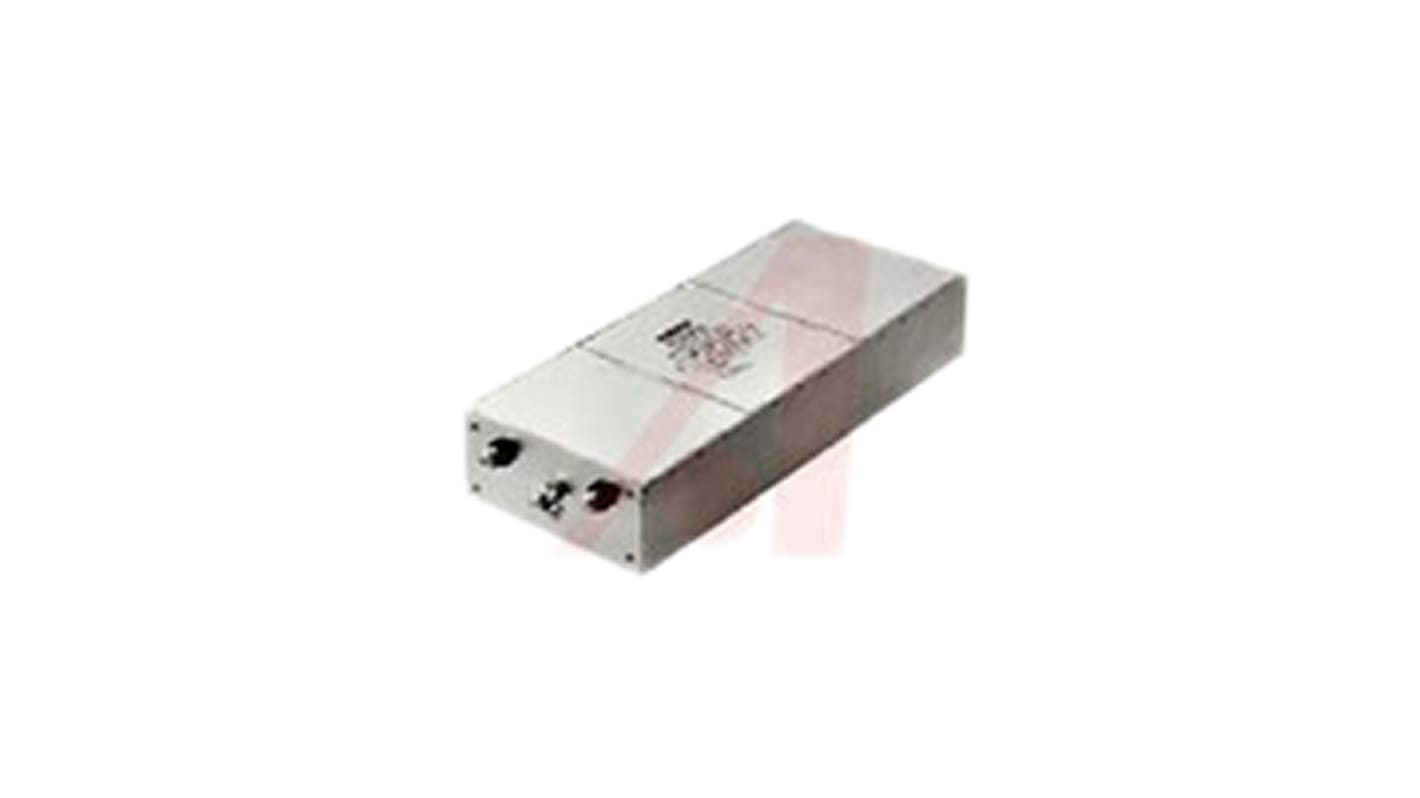

Schaffner, FN700 6A 250 V ac DC to 400Hz, Chassis Mount EMI Filter, Screw, Single Phase
- RS Stock No.:
- 883-8446
- Mfr. Part No.:
- FN700Z-6-06
- Brand:
- Schaffner
Discontinued
- RS Stock No.:
- 883-8446
- Mfr. Part No.:
- FN700Z-6-06
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 6A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Screw | |
| Number of Phases | 1 | |
| Number of Stages | Three Stage | |
| Series | FN700 | |
| Operating Frequency | DC to 400Hz | |
| Length | 200mm | |
| Depth | 80mm | |
| Capacitance | 1 μF, 2.5 μF | |
| Height | 50mm | |
| Inductance | 17.1 mH, 50 μH | |
| Dimensions | 200 x 80 x 50mm | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 0.44 mA | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 330kΩ | |
| Select all | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 6A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Screw | ||
Number of Phases 1 | ||
Number of Stages Three Stage | ||
Series FN700 | ||
Operating Frequency DC to 400Hz | ||
Length 200mm | ||
Depth 80mm | ||
Capacitance 1 μF, 2.5 μF | ||
Height 50mm | ||
Inductance 17.1 mH, 50 μH | ||
Dimensions 200 x 80 x 50mm | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 0.44 mA | ||
Maximum Operating Temperature +85°C | ||
Resistance 330kΩ | ||
- COO (Country of Origin):
- HU
FN700 Series
The FN700 Series of Schaffner EMC/EMI Filters. Designed to meet highest filter attenuation requirements over a wide range starting from a few kilohertz up to 3GHz. All models are highly reliable and excellent quality.
High surge voltage protection
Chassis mount
Various current ratings available
Chassis mount
Various current ratings available
