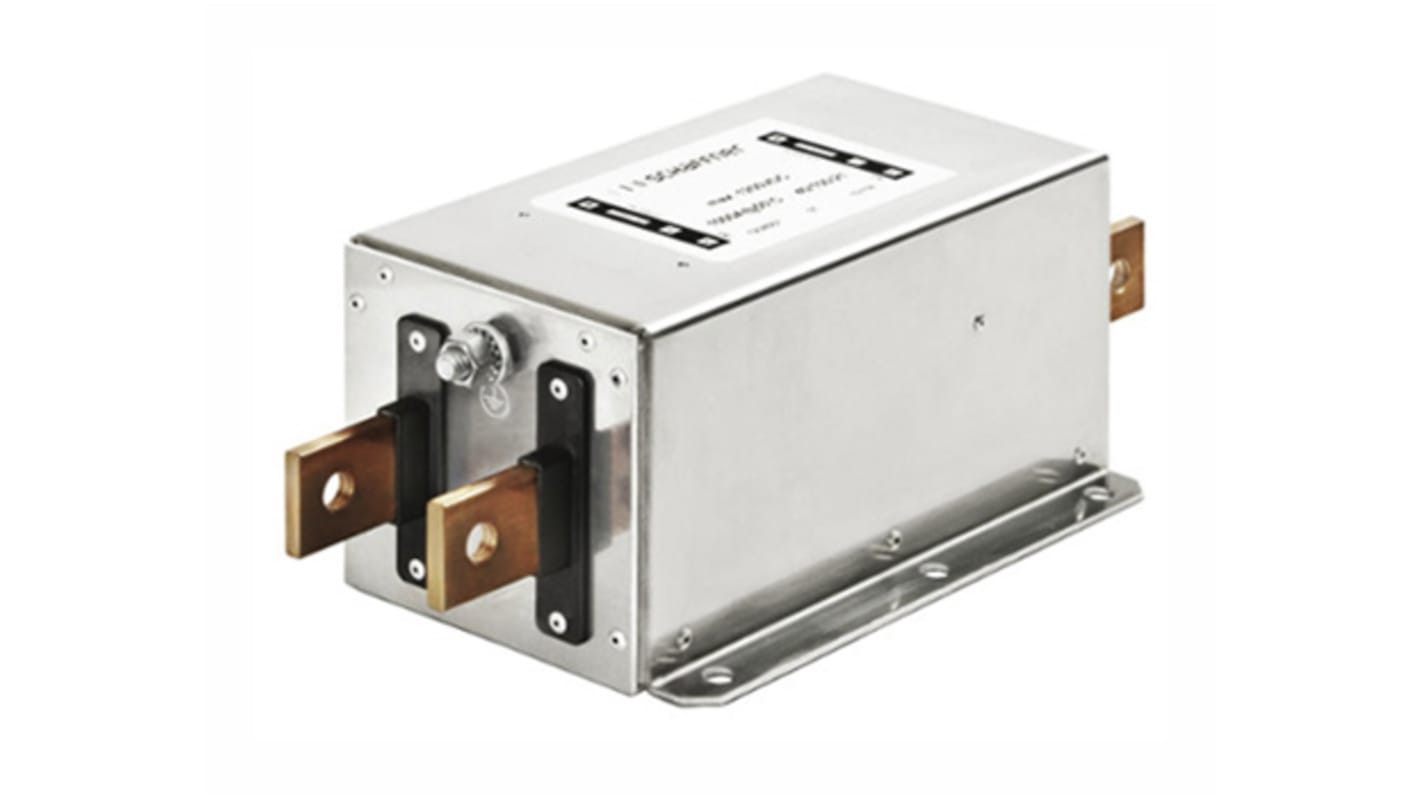

Schaffner, FN2200 600A 1200 V dc DC, Screw Mount EMI Filter, Tab, Single Phase

  • RS Stock No. 881-2432
  • Mfr. Part No. FN2200-600-99
  • Brand Schaffner
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

FN2200 Series

Schaffner FN 2200 series DC filters aid in the control of conducted emissions on the panel side of a PV inverter system, significantly reducing the potential for high-frequency interference panel radiation. The FN 2200 series filters also protect the solar panel from HF stray and leakage currents which can cause pre-mature aging in the PV modules. FN 2200 filters are primarily designed for PV inverters. However, they can potentially also be used in other DC applications within published specifications, such as UPS, DC motor drives or DC quick chargers.

Compact design
Reduces conducted emissions
Helps prevent premature panel aging

Specifications
Attribute Value
Maximum Current Rating 600A
Maximum Voltage Rating 1200 V dc
Mounting Type Screw Mount
Termination Style Tab
Number of Phases 1
Number of Stages Single Stage
Series FN2200
Operating Frequency DC
Length 300mm
Depth 190mm
Height 110mm
Dimensions 300 x 190 x 110mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +100°C
Power Loss 29W
