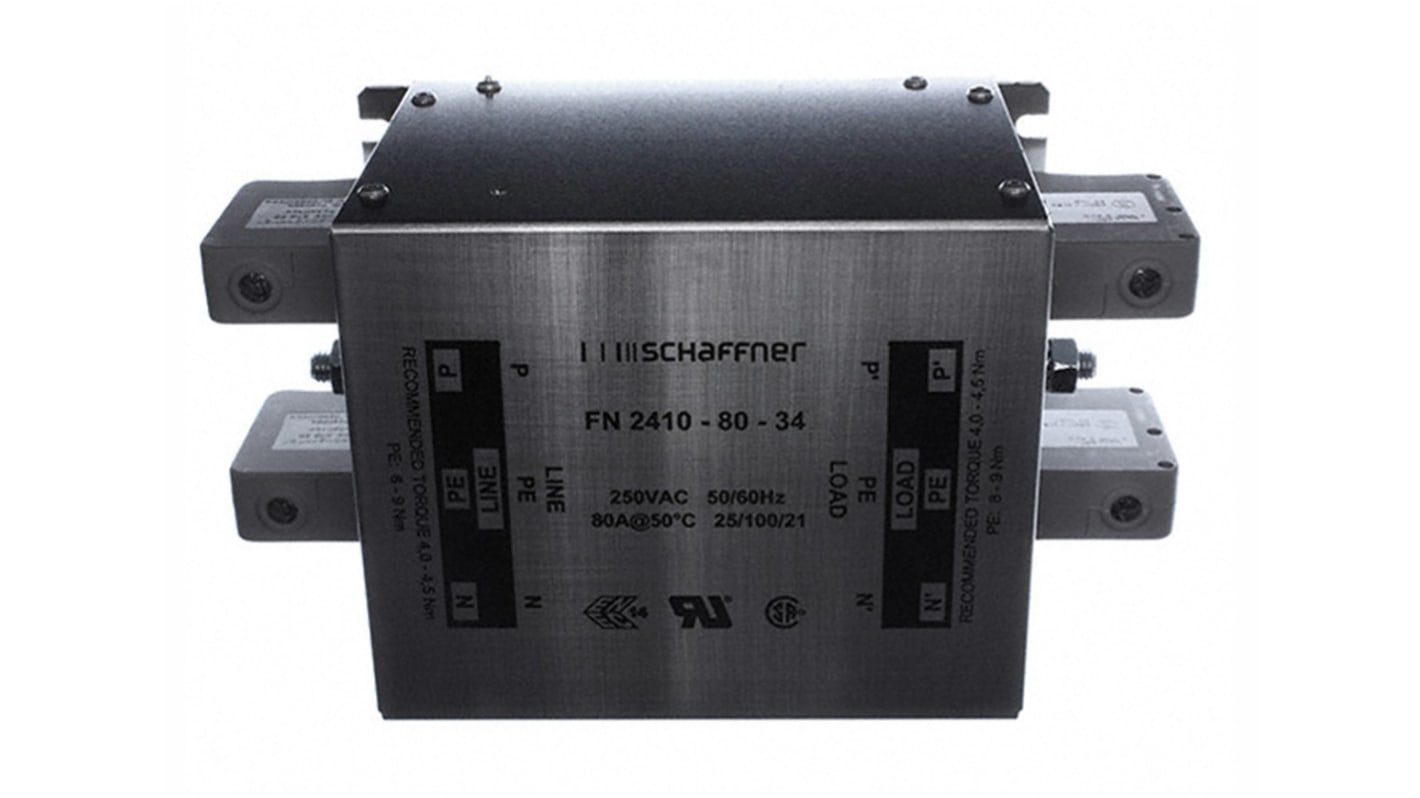

Schaffner, FN2410H 80A 520 V ac 250Hz, Chassis Mount EMC Filter, Terminal Block 2 Phase
- RS Stock No.:
- 518-6351
- Mfr. Part No.:
- FN2410H-80-34
- Brand:
- Schaffner
5 In stock - FREE next working day delivery available
Added
Price Each
£191.52
(exc. VAT)
£229.82
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £191.52 |
| 5 - 9 | £186.54 |
| 10 - 24 | £181.75 |
| 25 + | £177.16 |
- RS Stock No.:
- 518-6351
- Mfr. Part No.:
- FN2410H-80-34
- Brand:
- Schaffner
Technical Reference
Legislation and Compliance
Product Details
FN2410H Series
For applications with high interference levels
Current ratings up to 100A
Can be used across two phases in a three-phase network, handling voltages up to 520VAC
Current ratings up to 100A
Can be used across two phases in a three-phase network, handling voltages up to 520VAC
Standards
EN 133 200
Approvals
UL1283, CSA22.2 No.8 1986
Approvals
UL1283, CSA22.2 No.8 1986
Specifications
Attribute | Value |
|---|---|
| Maximum Current Rating | 80A |
| Maximum Voltage Rating | 520 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Terminal Block |
| Number of Phases | 2 |
| Number of Stages | Single Stage |
| Series | FN2410H |
| Operating Frequency | 250Hz |
| Length | 218mm |
| Depth | 115mm |
| Height | 100mm |
| Dimensions | 218 x 115 x 100mm |
| Leakage Current | 3.4 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Power Loss | 9.9W |
