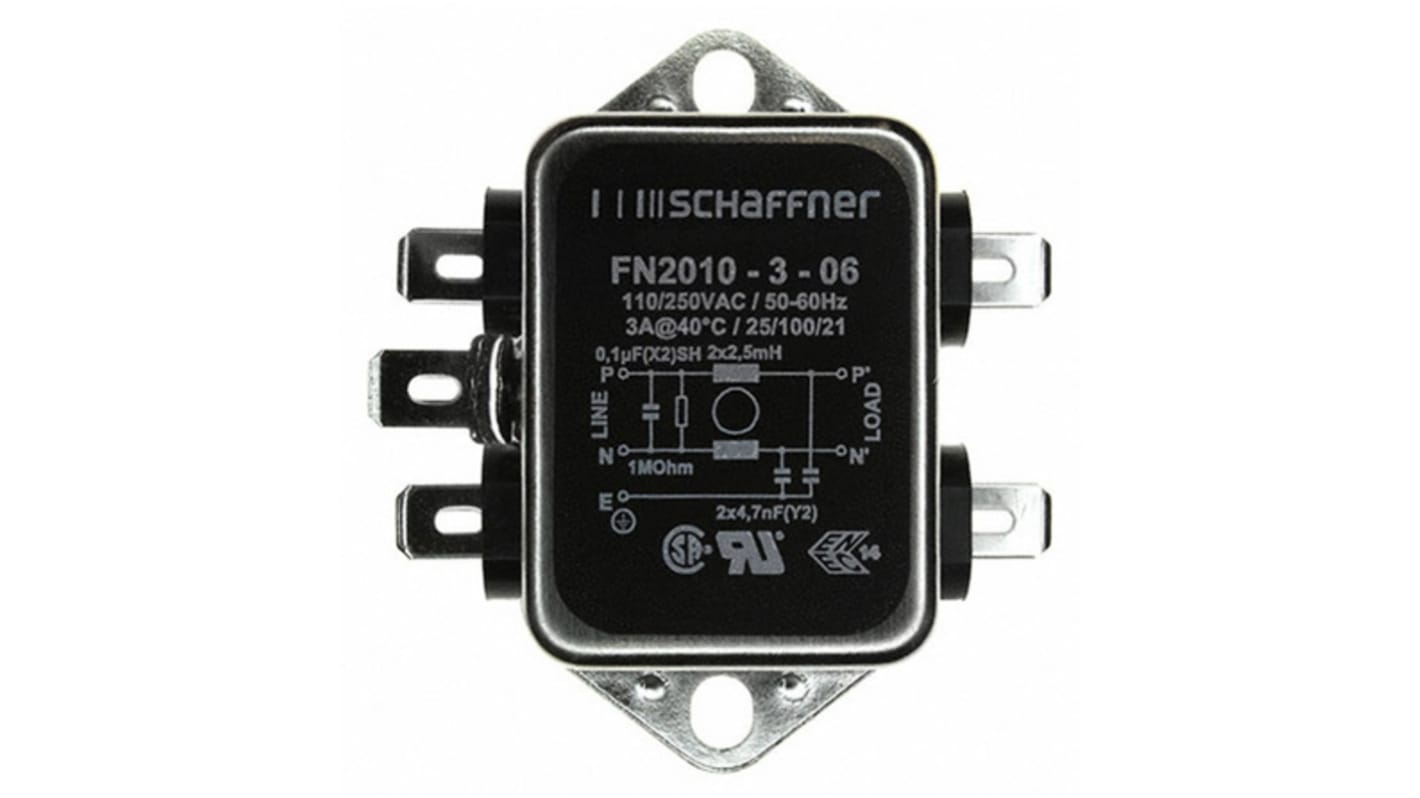

Schaffner, FN2010 3A 250 V ac/dc 0 → 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase
- RS Stock No.:
- 219-2779
- Mfr. Part No.:
- FN2010-3-06
- Brand:
- Schaffner
92 In stock - FREE next working day delivery available
56 available from Europe for delivery within 1 working day(s).
Added
Price Each
£12.64
(exc. VAT)
£15.17
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £12.64 |
| 10 - 24 | £11.76 |
| 25 - 49 | £10.99 |
| 50 - 99 | £10.36 |
| 100 + | £9.61 |
- RS Stock No.:
- 219-2779
- Mfr. Part No.:
- FN2010-3-06
- Brand:
- Schaffner
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
FN2010 Series
Low cost chassis mount filters in an aluminium case
General purpose filtering applications
Connection by Faston type terminals
General purpose filtering applications
Connection by Faston type terminals
Approvals
UL recognised component, CSA certified, VDE
Specifications
Attribute | Value |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | FN2010 |
| Operating Frequency | 0 → 400Hz |
| Length | 64mm |
| Depth | 35mm |
| Height | 24.3mm |
| Capacitance | 4.7 nF, 100nF |
| Inductance | 2.5 mH |
| Dimensions | 64 x 35 x 24.3mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.74 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
| Power Loss | 1.1W |
