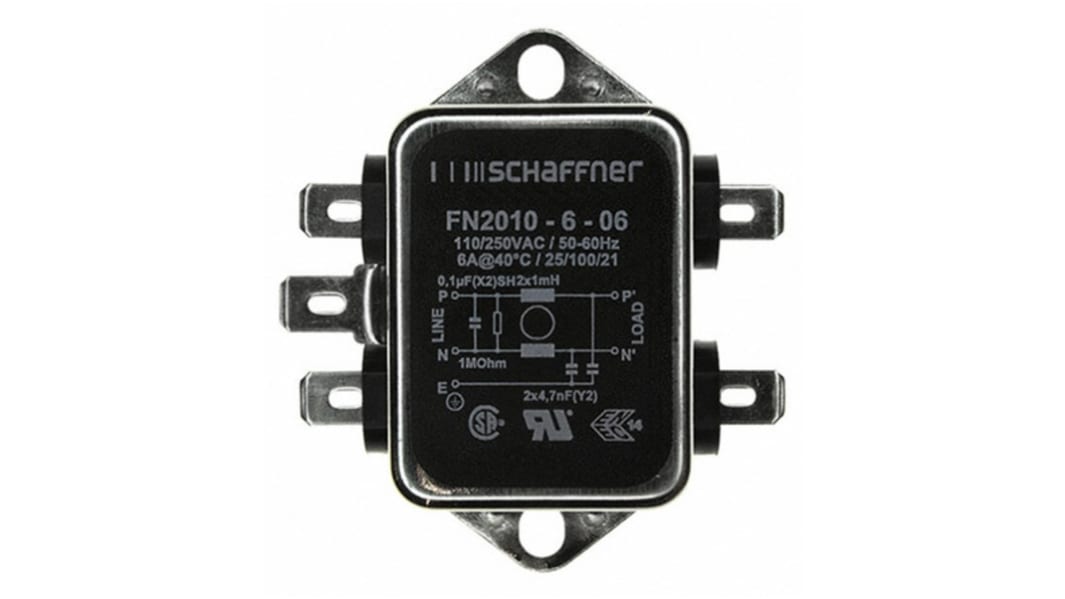

Schaffner, FN2010 6A 250 V ac/dc 0 → 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase
- RS Stock No.:
- 170-4995
- Mfr. Part No.:
- FN2010-6-06
- Brand:
- Schaffner
600 In stock - FREE next working day delivery available
Added
Price Each (In a Box of 60)
£10.199
(exc. VAT)
£12.239
(inc. VAT)
| Units | Per unit | Per Box* |
| 60 + | £10.199 | £611.94 |
| *price indicative | ||
- RS Stock No.:
- 170-4995
- Mfr. Part No.:
- FN2010-6-06
- Brand:
- Schaffner
Technical Reference
Legislation and Compliance
Product Details
FN2010 Series
Low cost chassis mount filters in an aluminium case
General purpose filtering applications
Connection by Faston type terminals
General purpose filtering applications
Connection by Faston type terminals
Approvals
UL recognised component, CSA certified, VDE
Approvals
UL; CSA ; VDE
Specifications
Attribute | Value |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | FN2010 |
| Operating Frequency | 0 → 400Hz |
| Length | 64mm |
| Depth | 35mm |
| Capacitance | 4.7 nF, 100nF |
| Height | 24.3mm |
| Inductance | 1 mH |
| Dimensions | 64 x 35 x 24.3mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.74 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
| Power Loss | 1.7W |
