- RS Stock No.:
- 239-860
- Brand:
- RS PRO
Discontinued product
- RS Stock No.:
- 239-860
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FI
Product Details

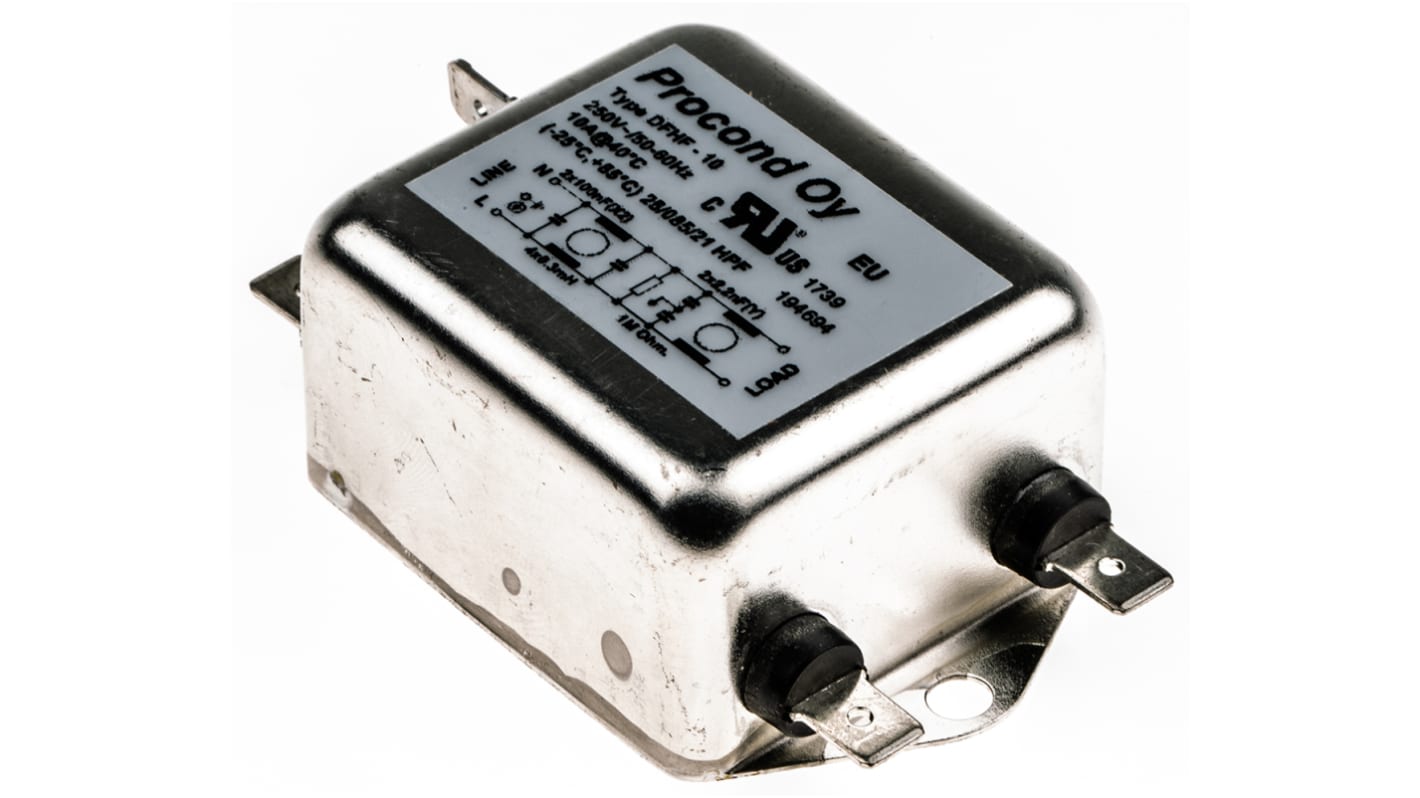

RS PRO Chassis Mounting RFI Filter, 10 A, 250 V AC, 400 Hz, Tab
Need to protect your electrical circuitry from RFI (radio frequency interference)? This RFI filter from RS PRO is designed just for that. It attenuates intensive, high-frequency noise in both the common and differential modes, so it's versatile and well-suited for use with sensitive equipment. A capacitor discharge resistor is built into the component to prevent any electrical hazards when the filter is turned off, ensuring the safety of your work environment.
The component has tabs intended for push-on connections or soldering, which allows for a secure and quick setup. It's also designed for chassis mounting, so it can be installed on a panel or similar surface. This type of filter is frequently used for preventing data loss, malfunction or degradation in telecommunications equipment, household appliances and medical devices. Engineers have stringently tested this part for quality, reliability and safety.
The component has tabs intended for push-on connections or soldering, which allows for a secure and quick setup. It's also designed for chassis mounting, so it can be installed on a panel or similar surface. This type of filter is frequently used for preventing data loss, malfunction or degradation in telecommunications equipment, household appliances and medical devices. Engineers have stringently tested this part for quality, reliability and safety.
Features and Benefits
- Capacitance of 0.1 x 2 μF (microfarads), 2200 x 2 pF (picofarads)
- Dimensions of 46 (length) x 76 (depth) x 28 mm (height)
- Inductance of 0.3 x 2 mH (millihenry)
- Leakage current of 0.2 mA (milliamperes)
- Current rating of 10 A
- Voltage rating of 250 V (voltz) AC
- Operating frequency of 400 Hz (hertz)
- Operating temperature range of -25°C to +85°C
- Chassis mounting
- Two stages
- Resistance of 1 MΩ
- Tab termination style
Approvals
CSA; VDE; SEMKO
Specifications
Attribute | Value |
---|---|
Maximum Current Rating | 10A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | Chassis Mount |
Termination Style | Tab |
Number of Stages | Two Stage |
Series | DFHF |
Operating Frequency | 400Hz |
Length | 46mm |
Depth | 76mm |
Height | 28mm |
Capacitance | 0.1 x 2 μF, 2200 x 2pF |
Dimensions | 46 x 76 x 28mm |
Inductance | 0.3 x 2 mH |
Minimum Operating Temperature | -25°C |
Leakage Current | 0.2 mA |
Maximum Operating Temperature | +85°C |
Resistance | 1MΩ |
