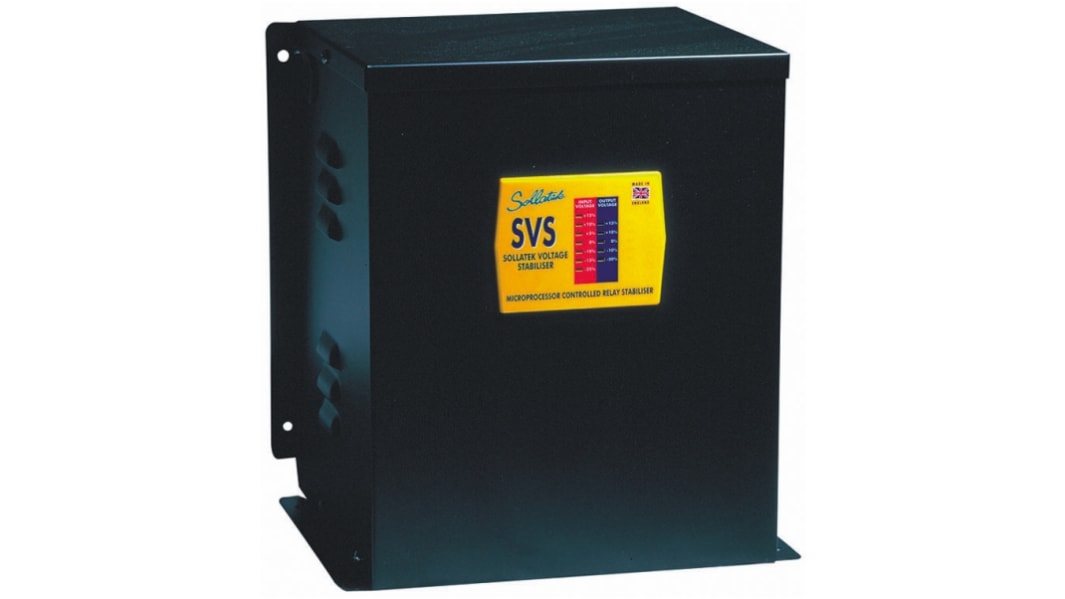

Sollatek Voltage Stabilizer 230V ac 75A Over Voltage and Under Voltage, 17250VA, Wall Mount

  • RS Stock No. 548-9458
  • Mfr. Part No. 98275000
  • Brand Sollatek
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): EG
Product Details

Microprocessor Controlled Voltage Stabilisers - SVS Range

From Sollatek, the Voltright SVS range of voltage stabilisers protects electrical equipment by monitoring the mains voltage and stabilising any rises or drops, ensuring a constant voltage and suppressing any surges or spikes. The SVS series accommodates voltage fluctuations across a very wide range, and maintains an output voltage that is accurate to within fine tolerances. The Voltright voltage stabiliser have microprocessor controlled operation resulting in extremely fast reaction times.

Suitable for all electronic and electrical devices, Sollatek voltage stabilisers are particularly useful in applications such as medical refrigeration and air conditioning.

Features and Benefits:

• All-electronic construction with no moving parts
• Easy to install and has a small foot print
• Input Range: 230Vac -29% → +23%
• Output Accuracy: Input = 171 → 275V, Output = 230Vac ± 6%, Input = 164 → 171V, Output = 230Vac ± 10%, Input = 274 → 285V, Output = 230Vac ± 10%
• Correction Speed: 750Volts / Second
• Response Within 15 Millisecond
• Wave form distortion: None
• Electronic switching
• Frequency: 45-75Hz
• Input connection: UK13 = BS1363 3 Pin (Flat Blade) Plug, Euro = Schuko Plug , TC = Screw terminals
• Output connection: UK13 = BS1363 3 Pin (Flat Blade) Socket, Euro = Schuko Socket, TC = Screw terminals

Standards

EN 50022 - 81- 82, EN 61000-4-2 to 4-6 & 4 -11

Standards

EN 50022 - 81- 82, EN 61000-4-2 to 4-6 & 4 -11

Specifications
Attribute Value
Input Voltage 230V ac
Output Voltage 230V ac
Output Power 17250VA
Output Current 75A
Mounting Type Wall Mount
Maximum Operating Frequency 75Hz
Maximum Temperature +55°C
Minimum Operating Frequency 45Hz
Minimum Temperature 0°C
Electrical Phase 1
Standards Met ISO9001:2008
Protection Type Over Voltage and Under Voltage
Wiring Configuration L N E
Voltage Protection Mode Under and Over Voltage
4 In stock for FREE next working day delivery
Price Each
£ 800.87
(exc. VAT)
£ 961.04
(inc. VAT)
Units
Per unit
1 - 9
£800.87
10 - 19
£720.78
20 - 24
£648.70
25 - 49
£583.83
50 +
£525.45
