Acc Silicones 740010300 White Dielectric, Shock Resistance, Vibration Resistance Silicone Potting Compound

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

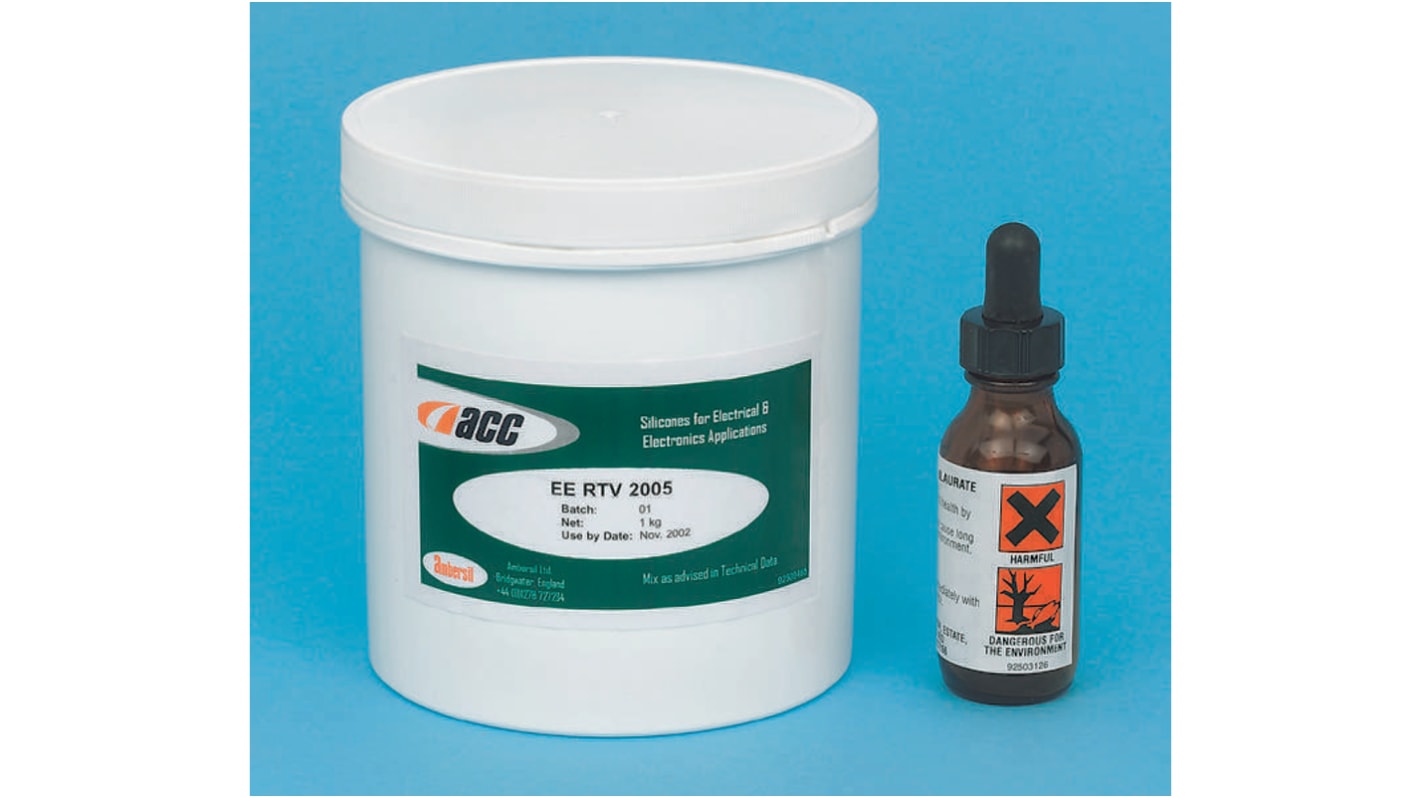

SE2005 Silicone Encapsulant

SE2005 is a readily pourable, white, two component silicone elastomer which cures on addition of the catalyst to a resilient rubber. The hardness of the cured material is 40-45° IRHD. It is used to provide protection from vibration, thermal or mechanical shock.

Key Features:

24 hour room temperature curing
Deep section cure
Free flowing, low viscosity
Stable up to 200°C
Dispensing equipment not necessary

Silicone Compounds - ACC

Specifications
Attribute Value
Product Material Silicone
Package Type Dual Cartridge
Package Size 1000 g
Special Properties Dielectric, Shock Resistance, Vibration Resistance
Cure Time 24 h
Hardness 40 Shore A
Thermal Conductivity 0.24W/mK
Colour White
Maximum Operating Temperature +220°C
Minimum Operating Temperature -50°C
Operating Temperature Range -50 → +220 °C
3 In stock for FREE next working day delivery
Price Each
£ 89.05
(exc. VAT)
£ 106.86
(inc. VAT)
Units
Per unit
1 - 5
£89.05
6 - 14
£85.50
15 +
£83.71
