RS PRO Clear Chemical Resistance, Mark Resistance, Scratch Resistance, UV Light Resistance, Weather Resistance,

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

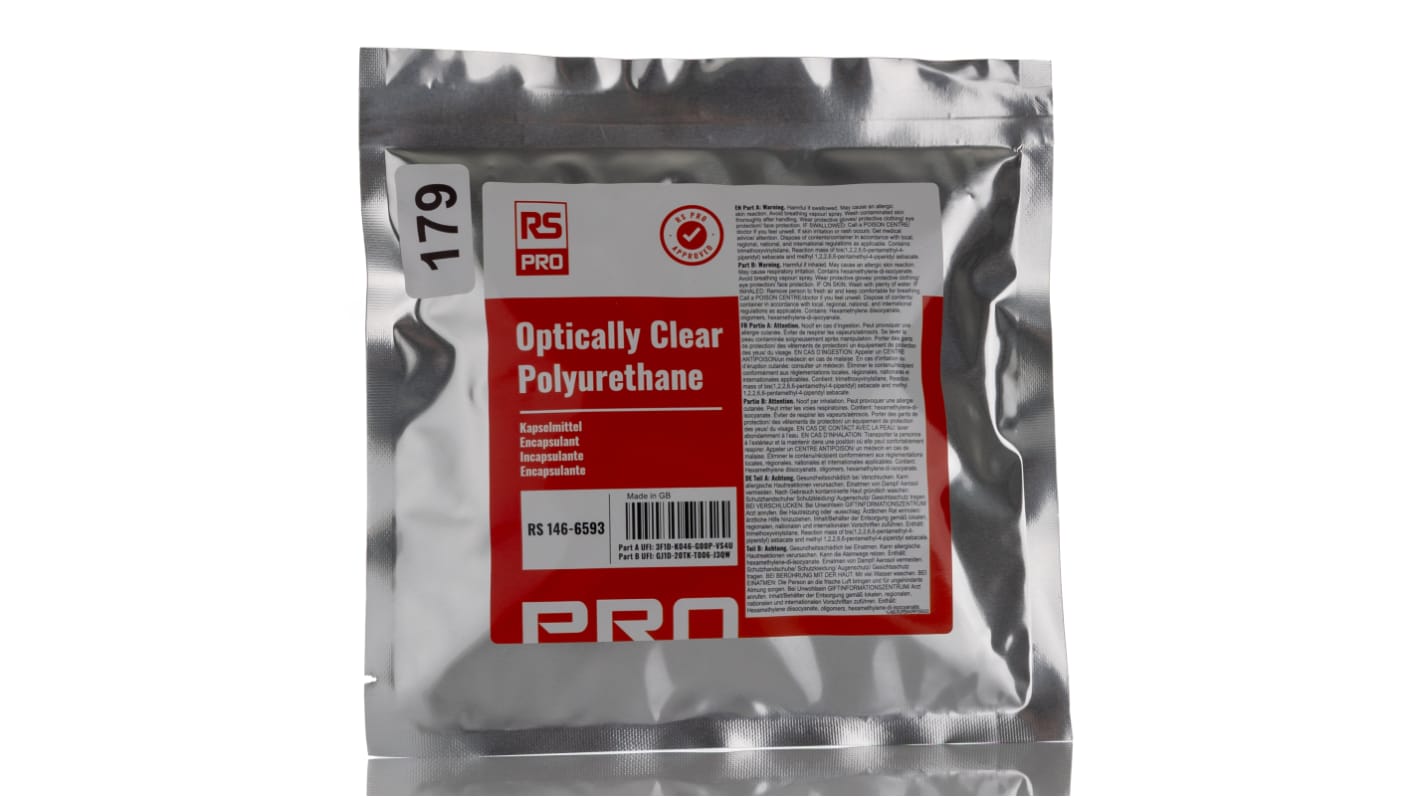

RS PRO Polyurethane Resin

The RS PRO polyurethane resin is an optically clear compound, making it ideal for LED encapsulation. It is suitable for aesthetic as well as a protective application over the top of the luminaire. Due to the aliphatic chemical nature of the resin chemistry, the cured resin is naturally resistant to the yellowing effects of UV light. It shows excellent weather resistance, as well as chemical resistance against a range of chemicals. This enables this clear, though yet flexible resin to be used in a range of applications, both indoor or outdoor.

Features and Benefits

• Water white transparency
• High resistance to acids and alkalis, water and mould growth
• Excellent ability to process
• Resistant to mark, scratches, UV light, weather and chemicals
• Cure time of 4 hours at 60°C and 24 hours at 23°C
• Hardness is 75 Shore A
• Thermal conductivity of 0.2W/mK
• Volume resistivity of 10^14Ω cm
• Dielectric strength of 11kV/mm
• Cure time (23 °C) is 24 hours
• Operating temperature ranges between -40⁰C and 120⁰C

Applications

• LED applications
• Outdoor applications

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Specifications
Attribute Value
Product Material PUR
Package Type Pack
Package Size 250 g
Special Properties Chemical Resistance, Mark Resistance, Scratch Resistance, UV Light Resistance, Weather Resistance, Yellowing Resistance
Cure Time 4 h @ 60 °C, 24 h @ 23 °C
Hardness 75 Shore A
Thermal Conductivity 0.2W/mK
Colour Clear
Maximum Operating Temperature +120°C
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +120 °C
Volume Resistivity 10^14Ω cm
Physical Form Viscous Liquid
Viscosity Measurement 700 (Part A) mPa/s, 900 (Mixed) mPa/s, 1200 (Part B) mPa/s
Dielectric Strength 11kV/mm
Viscosity Description Low
Chemical Composition Polyurethane Resin
56 In stock for FREE next working day delivery
Price Each
£ 16.99
(exc. VAT)
£ 20.39
(inc. VAT)
Units
Per unit
1 - 5
£16.99
6 - 14
£16.31
15 +
£15.97
