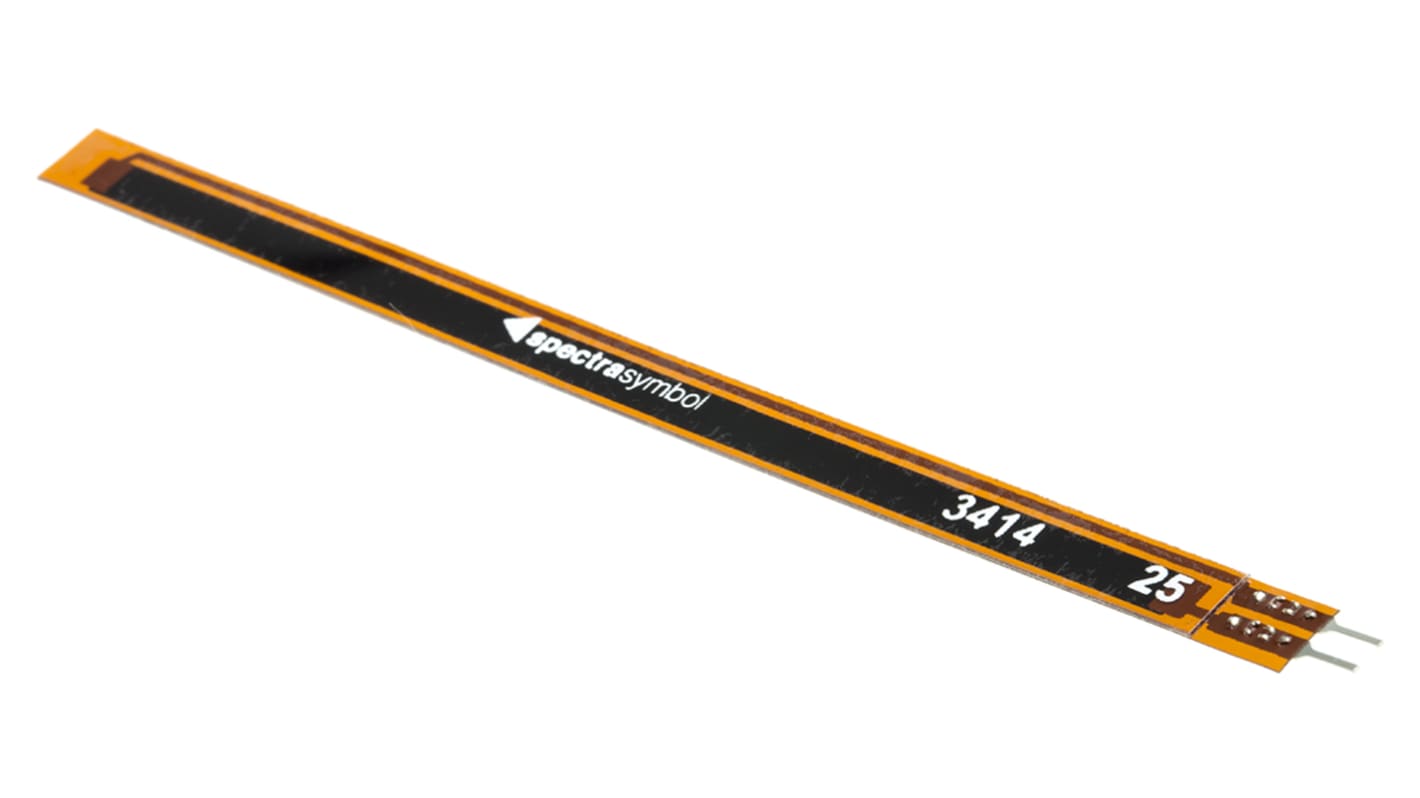

SPECTRASYMBOL FS-L-0095-103-ST Linear Flex Potentiometer, 10kΩ, ±30%, 0.5W

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Flex Resistive Sensor

Angle displacement measurement sensor
Bends and flexes physically with motion of device
Possible uses; Robotics, Gaming (Virtual Motion), Medical Devices, Computer Peripherals, Musical Instruments and Physical Therapy
Simple construction with low Profile
Life cycle more than 1 million operations
Flat resistance 10kΩ
Bend Resistance linear range 60kΩ to 110kΩ

Position Sensors

Specifications
Attribute Value
Potentiometer Type Linear
Maximum Resistance 10 kΩ
Number of Turns 1
Power Rating 0.5W
Mounting Type Through Hole
Termination Style Crimpflex Female Receptacle
Length 112.24mm
Depth 6.35mm
Height 0.43mm
Tolerance ±30%
Dimensions 112.24 x 6.35 x 0.43mm
Maximum Operating Temperature +80°C
Minimum Operating Temperature -35°C
Series FS
Discontinued product
