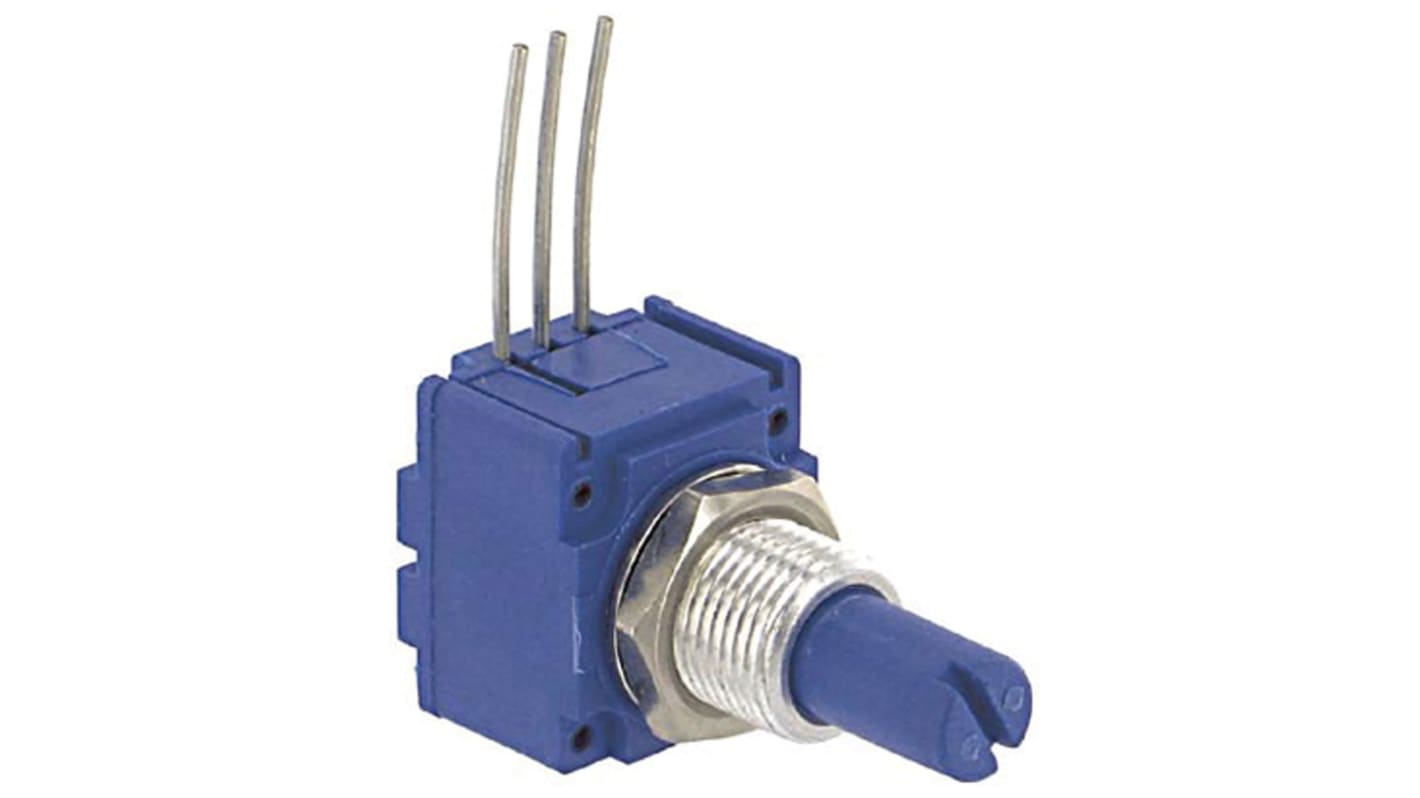

Bourns 100kΩ Linear Potentiometer, Panel Mount (Through Hole), 91A1A-B24-B20L
- RS Stock No.:
- 170-9497
- Mfr. Part No.:
- 91A1A-B24-B20L
- Brand:
- Bourns
Discontinued product
- RS Stock No.:
- 170-9497
- Mfr. Part No.:
- 91A1A-B24-B20L
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
Product Details
16 mm 91 Series
Bourns 91 Series are single turn, rotary linear potentiometers.
Features and Benefits:
Available in various pin-out configurations
One piece shaft and rotor assembly
Panel and PCB mountable
Conductive plastic resistance element
Linear and audio (log) output track options
Long mechanical life (100000 cycles)
Plastic or metal slotted shaft
Available in various pin-out configurations
One piece shaft and rotor assembly
Panel and PCB mountable
Conductive plastic resistance element
Linear and audio (log) output track options
Long mechanical life (100000 cycles)
Plastic or metal slotted shaft
Supplied with
Metal lock washer and nut.
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Linear |
| Maximum Resistance | 100kΩ |
| Number of Turns | 1 |
| Power Rating | 1W |
| Electrical Taper | Linear |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | Pin |
| Shaft Length | 19.05mm |
| Shaft Diameter | 6.35 mm |
| Tolerance | ±20% |
| Series | 91 |
