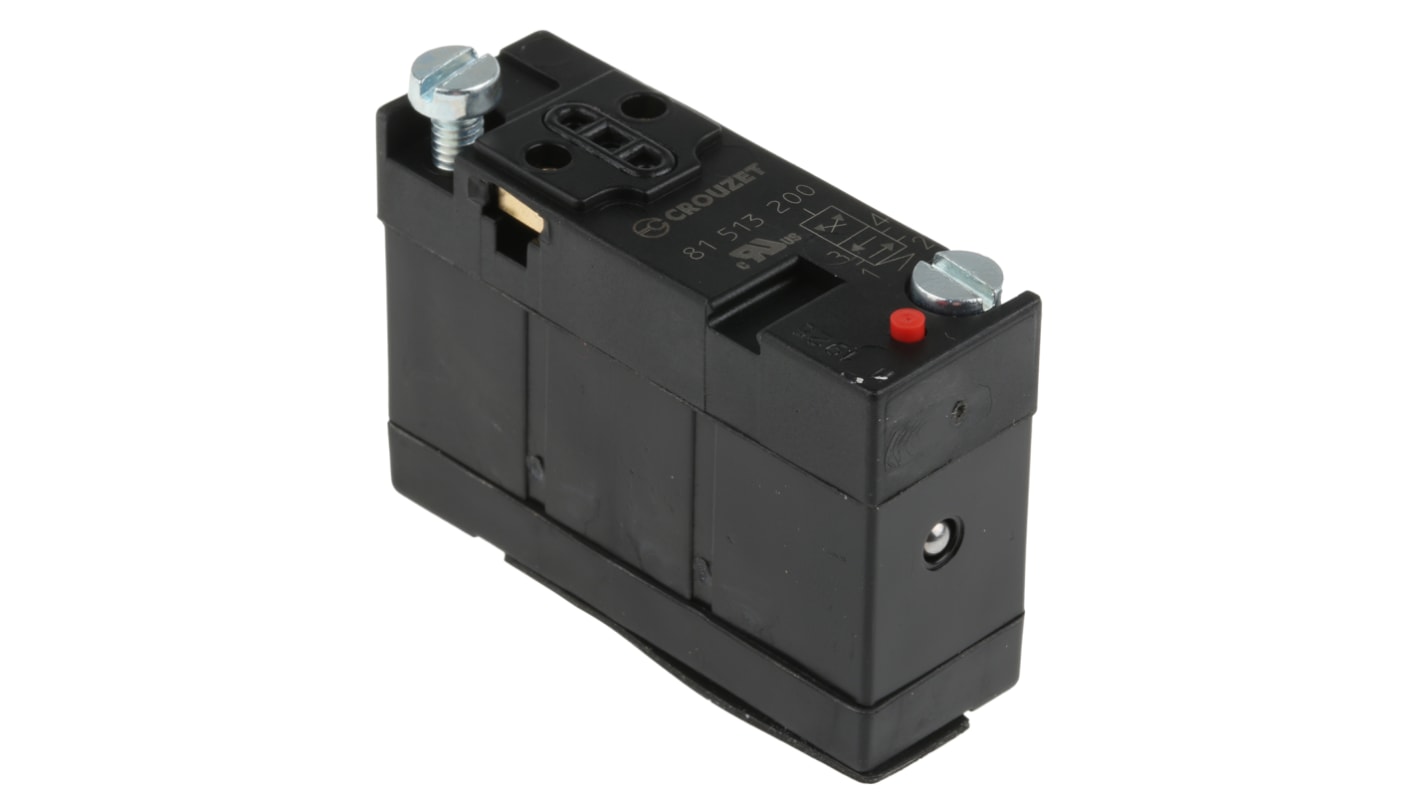

Crouzet 4/2 Pneumatic Solenoid Valve - Pilot/Spring 81 Series
- RS Stock No.:
- 722-851
- Mfr. Part No.:
- 81513200
- Brand:
- Crouzet
11 In stock - FREE next working day delivery available
21 available from Europe for delivery within 1 working day(s).
Added
Price Each
£41.29
(exc. VAT)
£49.55
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £41.29 |
| 5 - 9 | £39.23 |
| 10 - 24 | £37.15 |
| 25 - 49 | £35.09 |
| 50 + | £33.04 |
- RS Stock No.:
- 722-851
- Mfr. Part No.:
- 81513200
- Brand:
- Crouzet
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Crouzet Solenoid Valve Module
The Crouzet 81 series 4/2 ports electro-pneumatic miniature solenoid valve has a maximum flow rate of 300NL/min. This monostable valve acts as a functional interface between electrical/electronic control systems and pneumatic drives. It is suitable for compressed air or inert gas and is oil-free. air is filtered up to 50μ.
Warning
Whilst generally considered a safe source of energy, Compressed Air must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.
Warning
Whilst generally considered a safe source of energy, Compressed Air must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.
Features and Benefits
Ideal for use with programmable controllers
Operating pressure ranges between 3bar and 8bar
Operating temperature ranges between -10°C and 50°C
Rapid installation and easy maintenance
Operating pressure ranges between 3bar and 8bar
Operating temperature ranges between -10°C and 50°C
Rapid installation and easy maintenance
Certifications
IP65 rated
Specifications
Attribute | Value |
|---|---|
| Function | 4/2 |
| Actuation Type | Pilot/Spring |
| Manufacturer Series | 81 |
| Mounting Style | DIN Rail |
| Number of Ports | 4/2 |
| Maximum Flow Rate | 300NL/min |
| Minimum Operating Pressure | 3bar |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Pressure | 8bar |
| Maximum Operating Temperature | +50°C |
