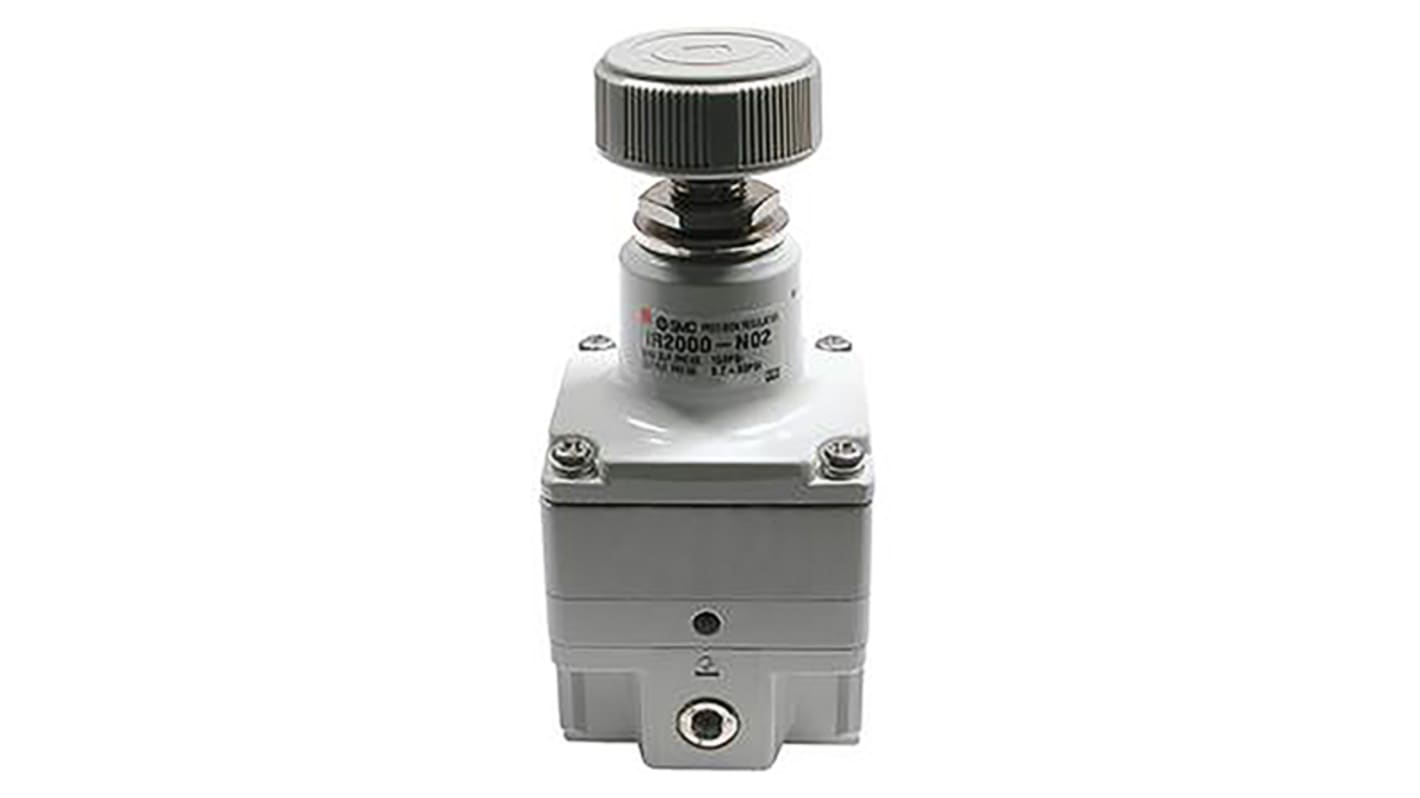

SMC NPT 1/8 Pneumatic Regulator -, 1/8, 1MPa max. input
- RS Stock No.:
- 850-8993
- Mfr. Part No.:
- IR1000-N01G
- Brand:
- SMC
3 In stock - FREE next working day delivery available
Added
Price Each
£76.25
(exc. VAT)
£91.50
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £76.25 |
| 5 - 9 | £73.12 |
| 10 + | £71.17 |
- RS Stock No.:
- 850-8993
- Mfr. Part No.:
- IR1000-N01G
- Brand:
- SMC
Technical Reference
Legislation and Compliance
Product Details
Precision IR Series
Air requirements; Dry, filtered to 0.3μm
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets
Note
See separate product range for mounting brackets and accessories
Caution
(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline
Specifications
Attribute | Value |
|---|---|
| Port Connection | NPT 1/8 |
| Maximum Input Pressure | 1MPa |
| Manufacturer Series | IR1000 |
| Pressure Gauge Port Size | R 1/8 |
| Port Connection Thread Size | 1/8 |
| Pressure Gauge Port Thread Size | 1/8in |
| Maximum Flow Rate | ≤4.4L/min |
| Integral Check Valve | Yes |
| Port Connection Thread Standard | NPT |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
| Pressure Gauge Port Thread Standard | R |
