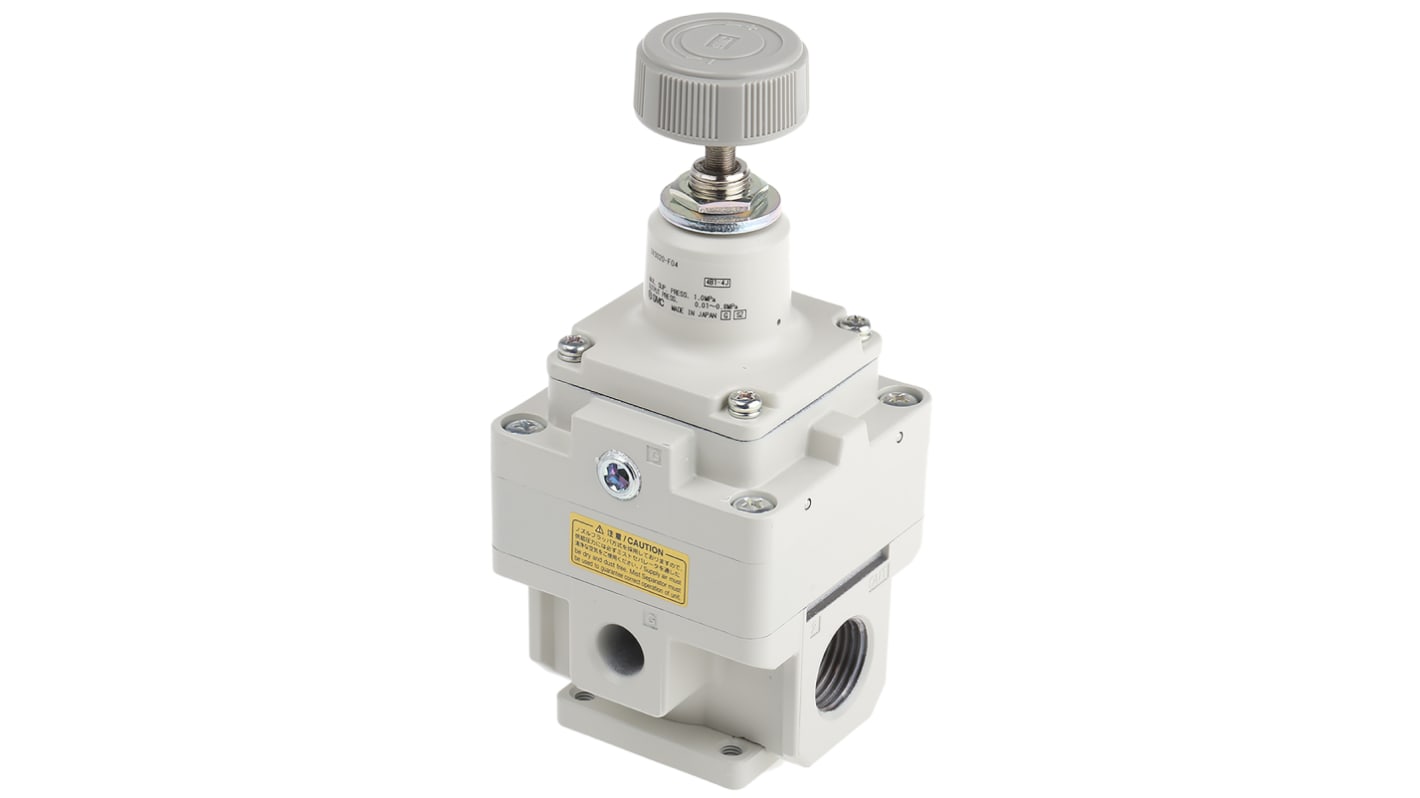

SMC G 1/2 Pneumatic Regulator - 0.005MPa to 0.8MPa, 1/2in, 1MPa max. input
- RS Stock No.:
- 700-8802
- Mfr. Part No.:
- IR3020-F04
- Brand:
- SMC
2 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price Each
£149.30
(exc. VAT)
£179.16
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £149.30 |
| 5 - 9 | £140.49 |
| 10 + | £134.66 |
- RS Stock No.:
- 700-8802
- Mfr. Part No.:
- IR3020-F04
- Brand:
- SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details
Precision IR Series
Air requirements; Dry, filtered to 0.3μm
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets
Note
See separate product range for mounting brackets and accessories
Caution
(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline
Specifications
Attribute | Value |
|---|---|
| Port Connection | G 1/2 |
| Maximum Outlet Pressure | 0.8MPa |
| Minimum Outlet Pressure | 0.005MPa |
| Maximum Input Pressure | 1MPa |
| Manufacturer Series | IR3000 |
| Pressure Gauge Port Size | G 1/8 |
| Port Connection Thread Size | 1/2in |
| Pressure Gauge Port Thread Size | 1/8in |
| Typical Flow Rate | 5000L/min |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
| Pressure Gauge Port Thread Standard | G |
- RS Stock No.:
- 700-8802
- Mfr. Part No.:
- IR3020-F04
- Brand:
- SMC
