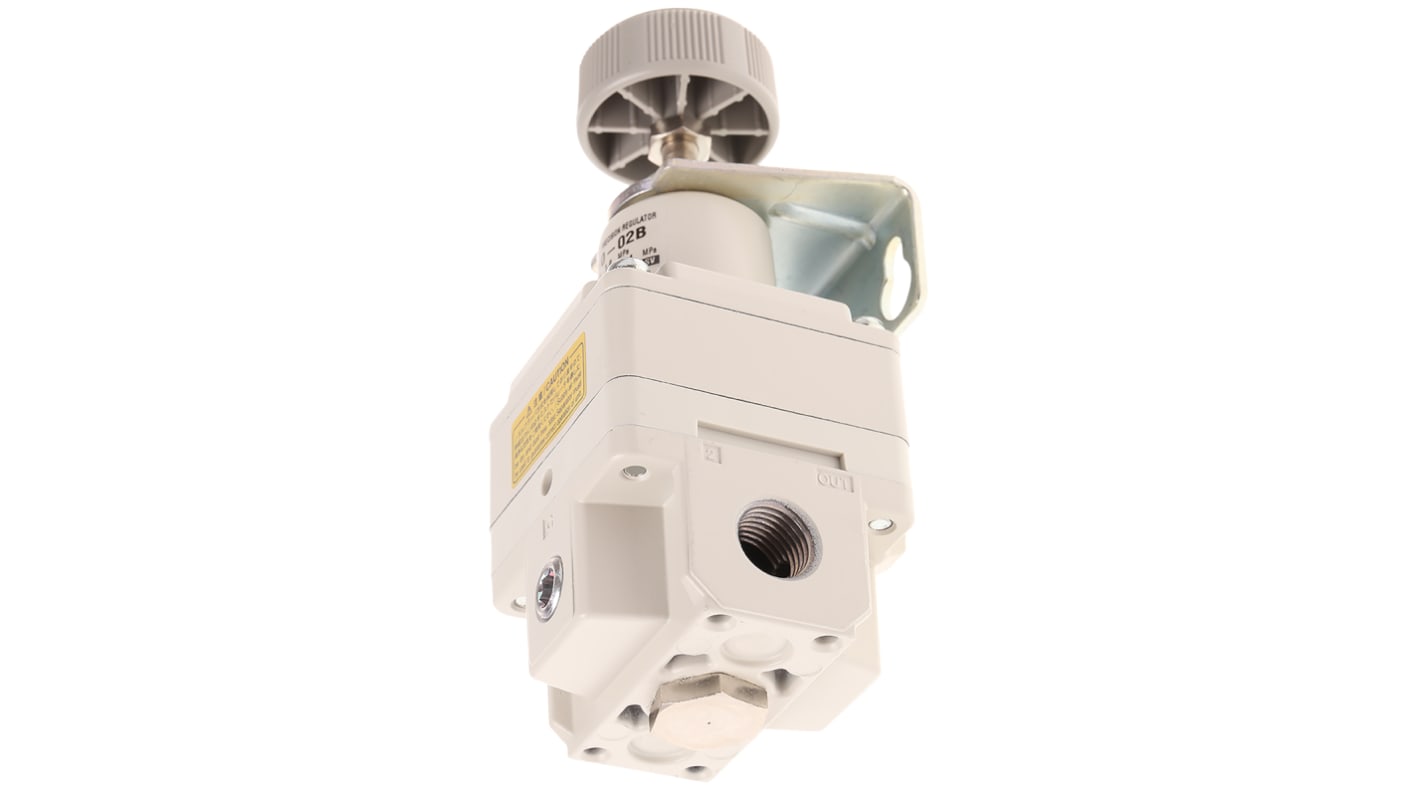

SMC Rc 1/4 Pneumatic Regulator - 0.01MPa to 0.4MPa, 1/4in, 1MPa max. input
- RS Stock No.:
- 314-0937
- Mfr. Part No.:
- IR2010-02B
- Brand:
- SMC
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£107.30
(exc. VAT)
£128.76
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £107.30 |
| 5 - 9 | £100.98 |
| 10 + | £96.77 |
- RS Stock No.:
- 314-0937
- Mfr. Part No.:
- IR2010-02B
- Brand:
- SMC
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Precision IR Series
Air requirements; Dry, filtered to 0.3μm
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets
Note
See separate product range for mounting brackets and accessories
Caution
(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline
Specifications
Attribute | Value |
|---|---|
| Port Connection | Rc 1/4 |
| Maximum Outlet Pressure | 0.4MPa |
| Minimum Outlet Pressure | 0.01MPa |
| Maximum Input Pressure | 1MPa |
| Manufacturer Series | IR2000 |
| Pressure Gauge Port Size | Rc 1/8 |
| Port Connection Thread Size | 1/4in |
| Pressure Gauge Port Thread Size | 1/8in |
| Typical Flow Rate | 1200L/min |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | Rc |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
| Pressure Gauge Port Thread Standard | Rc |
