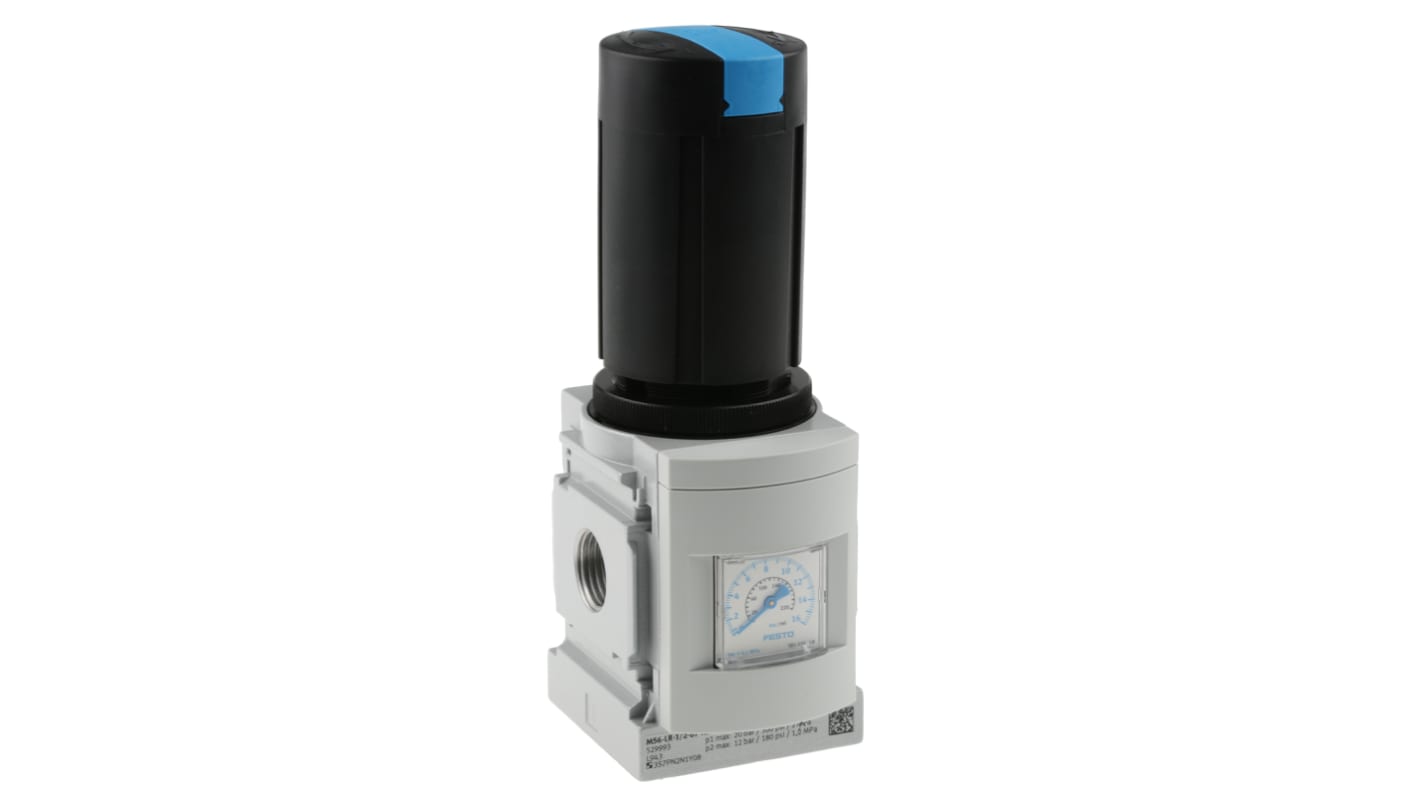

Festo G 1/2 Pneumatic Regulator - 0.5bar to 12bar, 1/2in, 14bar max. input, 529993
- RS Stock No.:
- 121-5681
- Mfr. Part No.:
- MS6-LR-1/2-D7-AS
- Brand:
- Festo
15 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£63.28
(exc. VAT)
£75.94
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £63.28 |
| 5 - 9 | £60.74 |
| 10 + | £58.22 |
- RS Stock No.:
- 121-5681
- Mfr. Part No.:
- MS6-LR-1/2-D7-AS
- Brand:
- Festo
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details
MS-LR Series Pressure Regulator
Festo MS-LR series pressure regulators maintain a constant working pressure, regardless of the pressure variations in the system and air consumption. The MS-LR series features excellent regulation characteristics with low hysteresis and primary pressure compensation.
Features and Benefits
- The MS-LR series feature regulators which are available with and without secondary venting
- They benefit from a high flow rate with minimal pressure drop
- Two pressure gauge connections allow for different fitting options, with a return flow option already integrated within the pressure regulator
- The pressure regulator has a compressed air and inert gases operating medium, with a directly controlled diaphragm regulator design structure
- Optional pressure sensor and rotary knob pressure gauge
- For installation into a control panel
Festo Pneumatic Regulator, 5500L/min Standard Nominal Flow Rate,G1/2 Port Connections - MS6-LR-1/2-D7-AS
When tension builds, this pneumatic regulator from Festo gives you direct control over airflow. Its diaphragm regulator maintains constant working pressure throughout system variations. The result? A high standard nominal flow rate of 5,500L/min and minimal pressure drop. Demanding industrial applications call for robust regulation, and this unit fits the bill by taking on inputs up to 14 bar. Two straight-line G-port connections make it easy to fit your pressure gauge, with 12.7mm parallel threads ensuring stability.
Features & Benefits
• Aluminium die-cast housing ensures a long performance life with high corrosion resistance
• Lockable rotary knob keeps settings secure
• Low hysteresis reduces lag time between input and output, for a quick response when you need it
• Compatible with media operating in tough conditions between -10°C and +60°C
• Mounts into your control panel in a snap, with all accessories included
• Lockable rotary knob keeps settings secure
• Low hysteresis reduces lag time between input and output, for a quick response when you need it
• Compatible with media operating in tough conditions between -10°C and +60°C
• Mounts into your control panel in a snap, with all accessories included
Applications
• Textile industry
• Medical equipment
• Agricultural machinery
• Medical equipment
• Agricultural machinery
What size is this pneumatic regulator?
To maximise efficiency and fit neatly into your system, this regulator packs its functions into a compact unit size of 62 (L) x 77 (W) x 185mm (H).
How much does the unit weigh?
The regulator tips the scales at 730g, making it a lightweight choice that minimises strain on your pneumatic circuit.
Regulators and Filter Regulators
Specifications
Attribute | Value |
|---|---|
| Port Connection | G 1/2 |
| Maximum Outlet Pressure | 12bar |
| Minimum Outlet Pressure | 0.5bar |
| Maximum Input Pressure | 14bar |
| Manufacturer Series | MS |
| Pressure Gauge Port Size | G 1/2 |
| Port Connection Thread Size | 1/2in |
| Pressure Gauge Port Thread Size | 1/2in |
| Maximum Flow Rate | 7500L/min |
| Typical Flow Rate | 5500L/min |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Model Number p | 529993 |
| Overall Dimensions | 62 x 77 x 185mm |
| Pressure Gauge Port Thread Standard | G |
| Overall Width | 77mm |
| Overall Length | 62mm |
| Overall Height | 185mm |
