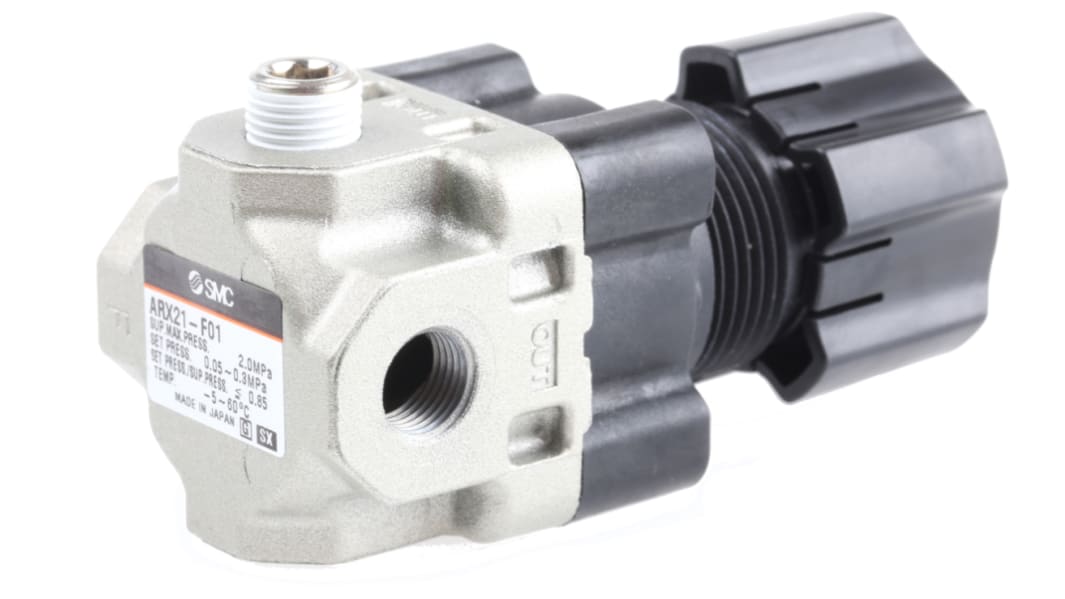

SMC Air Regulator G 1/8

  • RS Stock No. 210-682
  • Mfr. Part No. ARX21-F01
  • Brand SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

ARX 20 pressure regulators

ARX series piston type regulators are compatible with a primary supply pressure of 2.0MPa and ideal for pressure adjustment of air blowing applications. Compact in design with easy-to-operate adjustment handle.

Piston regulators featuring a wide range of output pressures.
Black stamped steel housing.
Brass cover and polycarbonate connector.
Pressure gauge and mounting bracket can be ordered separately.

Specifications
Attribute Value
Port Connection G 1/8
Minimum Outlet Pressure 0.05MPa
Maximum Outlet Pressure 0.3MPa
Maximum Input Pressure 2MPa
Manufacturer Series ARX20
Pressure Gauge Port Size Rc 1/8
Port Connection Thread Size 1/8 in
Pressure Gauge Port Thread Size 1/8 in
Maximum Flow Rate 60L/min
Integral Check Valve Without Check Valve
Port Connection Thread Standard G
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Pressure Gauge Port Thread Standard Rc
16 in stock for FREE next working day delivery
23 available from Europe for delivery within 1 working day(s)
Price Each
£ 14.52
(exc. VAT)
£ 17.42
(inc. VAT)
Units
Per unit
1 - 4
£14.52
5 - 9
£13.67
10 +
£13.10
