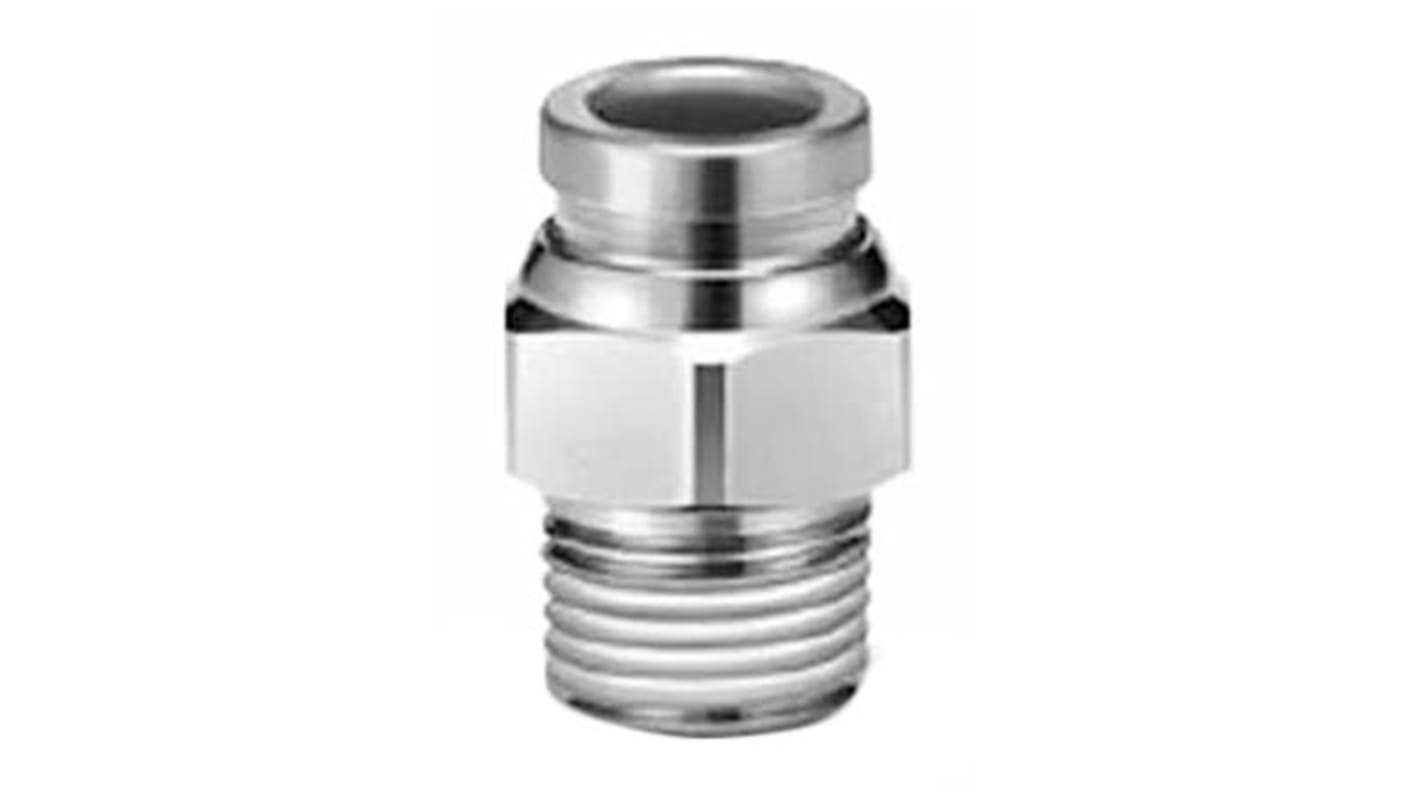

SMC Pneumatic Quick Connect Coupling Stainless Steel

  • RS Stock No. 884-1758
  • Mfr. Part No. KQG2H10-01S
  • Brand SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

Male Connector - KQG2 Series

SMC’s KQG2 stainless steel range provides engineers with a choice of high performance, lightweight, compact push in fittings for when resistance to corrosion, chemicals and high temperatures is vital. 30% smaller and 62% lighter than the existing KQG range and available to tubing diameters from 3.2 to 16mm. Suitable for use with compressed air, water, steam and able to perform across a diverse range of pressure (-100kPa to 1MPa) and temperature conditions (-5°C to +150°C).

Threaded, Tube-to-Tube & Adaptors - SMC KQG2

KQG2 SUS316 Stainless Steel Fittings

SMC KQG2 series one-touch pneumatic fittings are manufactured from SUS316 stainless steel, offering corrosion resistant properties that are better than grade 304 stainless steel. SUS316 stainless steel offers higher pitting and corrosion resistance properties, and is especially suitable for chloride environments.

Applications

KQG2 series one-touch fittings make use of FKM seals and may be used with a variety of tubing including nylon, soft nylon, polyurethane, polyolefin, FEP and PFA. The fittings are suitable for use with steam and are grease-free.

Specifications
Attribute Value
Maximum Operating Pressure 1 MPa, 3 (Proof) MPa
Minimum Operating Temperature -5°C
Maximum Operating Temperature 150°C
2 In stock for FREE next working day delivery
Price Each
£ 17.87
(exc. VAT)
£ 21.44
(inc. VAT)
Units
Per unit
1 - 4
£17.87
5 - 9
£16.82
10 +
£16.12
