Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

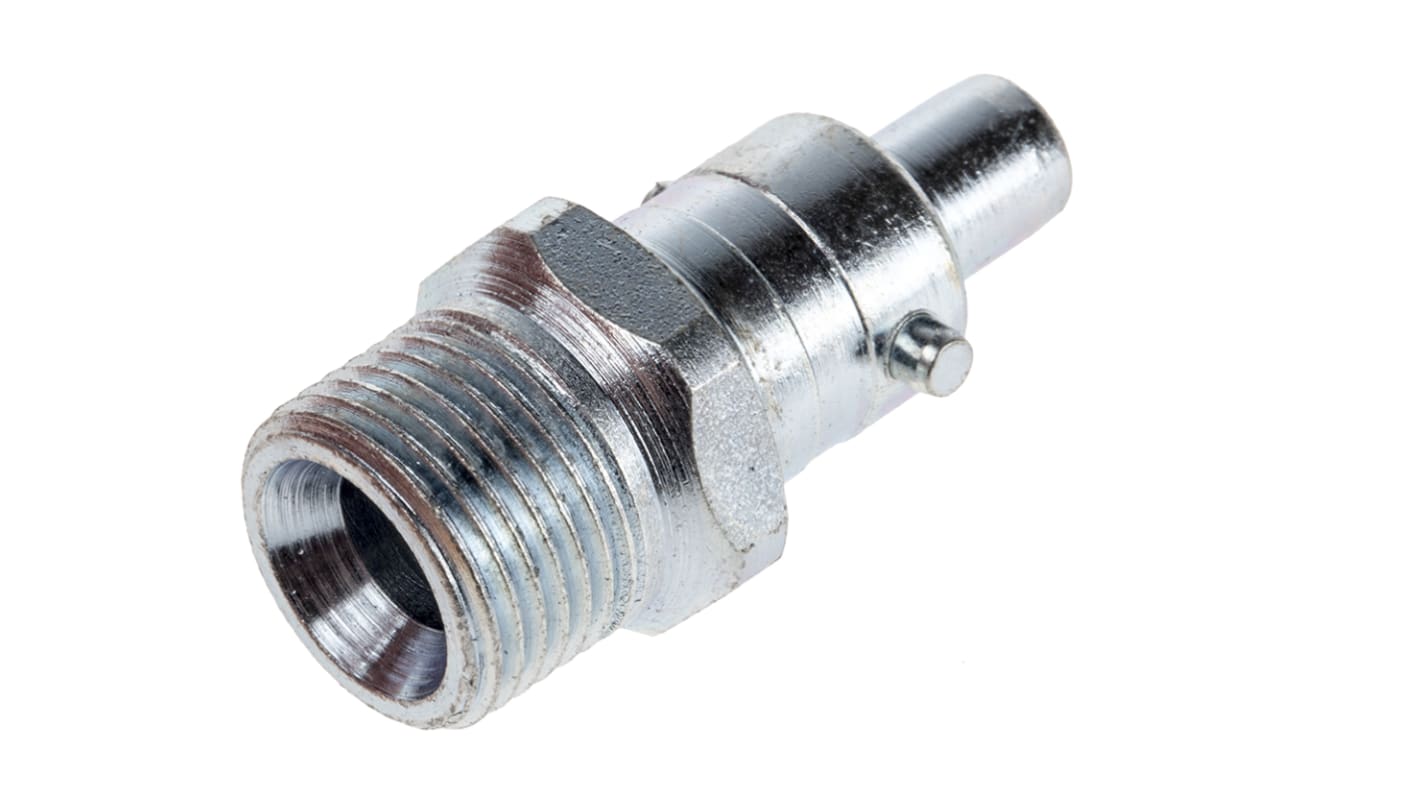

Bayonet Couplings
All couplings are of the single shut-off type, with a positive, bayonet type connection. The bayonet heads prevent accidental disconnection. The adaptors and couplings are suitable for most fixed air applications.
Maximum operating pressure of 35 bar
Bayonet Couplings
All couplings are of the single shut-off type, with a positive, bayonet type connection. Maximum operating pressure is 35 bar and temperature range is -20°C to +100°C.
Specifications
Attribute | Value |
---|---|
Threaded Connection | G 3/8 Male |
Coupling Gender | Male |
Connection Standard | PCL |
Thread Size | 3/8in |
Manufacturer Series | AA |
Connection Type | Threaded |
Material | Steel |
Thread Gender | Male |
Thread Standard | G |
Maximum Operating Pressure | 35bar |
Finish | Zinc Plated |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +100°C |
