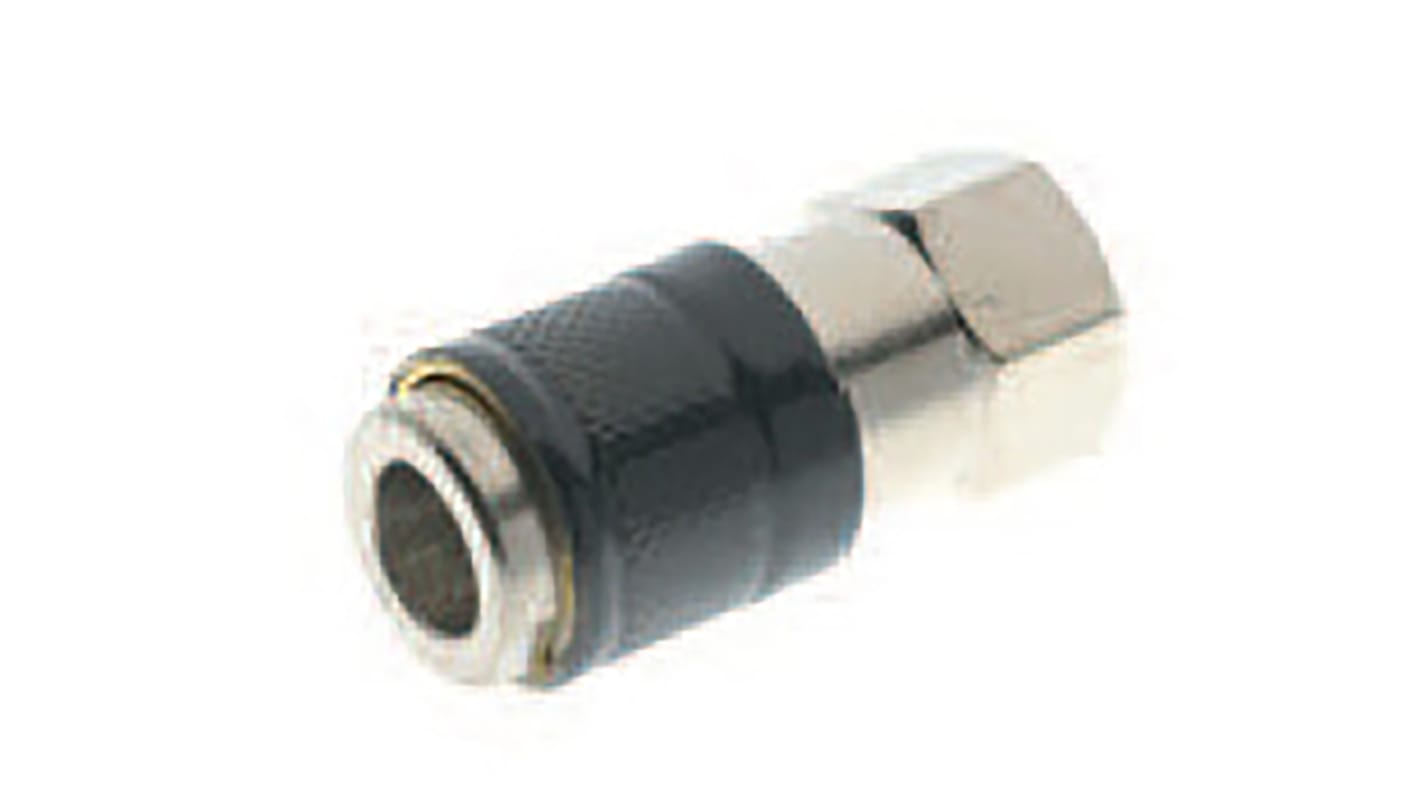

RS PRO Nickel Plated Brass Female Quick Air Coupling, G 1/8 Female Threaded
- RS Stock No.:
- 176-1928
- Brand:
- RS PRO
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 176-1928
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
RS Pro DN5 quick connect couplings with MIGNON DOUBLE SHUT OFF profile. Interchangeable with RECTUS/LEGRIS, PARKER 21/90, CAMOZZI 5050 - 5150 and CEJN 200
- Working Pressure: 0 bar to 12 bar (1.2 MPa)
- Working Temperature: - 20 °C to + 80 °C
- Fluid: Compressed air
- Working Pressure: 0 bar to 12 bar (1.2 MPa)
- Working Temperature: - 20 °C to + 80 °C
- Fluid: Compressed air
Specifications
Attribute | Value |
|---|---|
| Threaded Connection | G 1/8 Female |
| Coupling Gender | Female |
| Thread Size | 1/8in |
| Connection Type | Threaded |
| Material | Nickel Plated Brass |
| Thread Gender | Female |
| Thread Standard | BSP |
| Maximum Operating Pressure | 12bar |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
