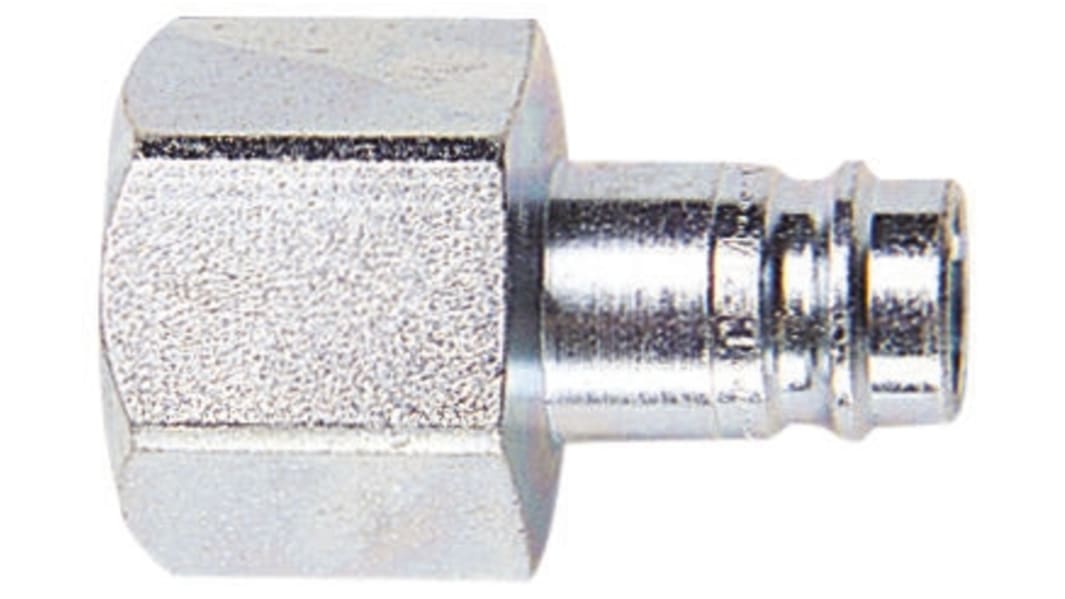

CEJN Pneumatic Quick Connect Coupling Steel 1/2 in Threaded

  • RS Stock No. 498-595
  • Mfr. Part No. 104105205
  • Brand CEJN
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): SE
Product Details

CEJN 410 Series, 10.4mm Flow Diameter

CEJN Euro standard series 410 couplings are designed with a high-flow valve. They are easy-to-handle, can be one-hand operated and offer a long service life. The series 410 vented safety version is disconnected in two stages in order to vent the coupling and minimise the risk of sudden component separation, which has the potential to cause operator injury. Full automatic operation ensures easy handling. The vented safety version complies with ISO Standard 4414 and EN 983.

Nominal Flow Diameter 10.4mm
Strong and durable
Easy to connect
Available in standard and safety versions
Two stage safety types
Interchanges with Rectus 27 series
Zinc-plated steel body material
NBR seal material

Standards

The vented safety version complies with ISO Standard 4414 and EN 983

Euro Standard

Specifications
Attribute Value
Coupling Gender Female
Threaded Connection G 1/2 Female
Manufacturer Series 410
Connection Type Threaded
Thread Size 1/2in
Material Steel
Thread Gender Female
Thread Standard G
Maximum Operating Pressure 16 bar
Finish Zinc Plated
Seal Material Nitrile Rubber
Minimum Operating Temperature -20°C
Maximum Operating Temperature +100°C
11 In stock for FREE next working day delivery
Price Each
£ 8.36
(exc. VAT)
£ 10.03
(inc. VAT)
Units
Per unit
1 - 4
£8.36
5 - 9
£8.01
10 - 24
£7.84
25 +
£7.69
