SMC Pressure Sensor 65kPa, 12 24V dc, IP40 50 kPa

  • RS Stock No. 700-7572
  • Mfr. Part No. PSE550-28
  • Brand SMC
Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): JP
Product Details

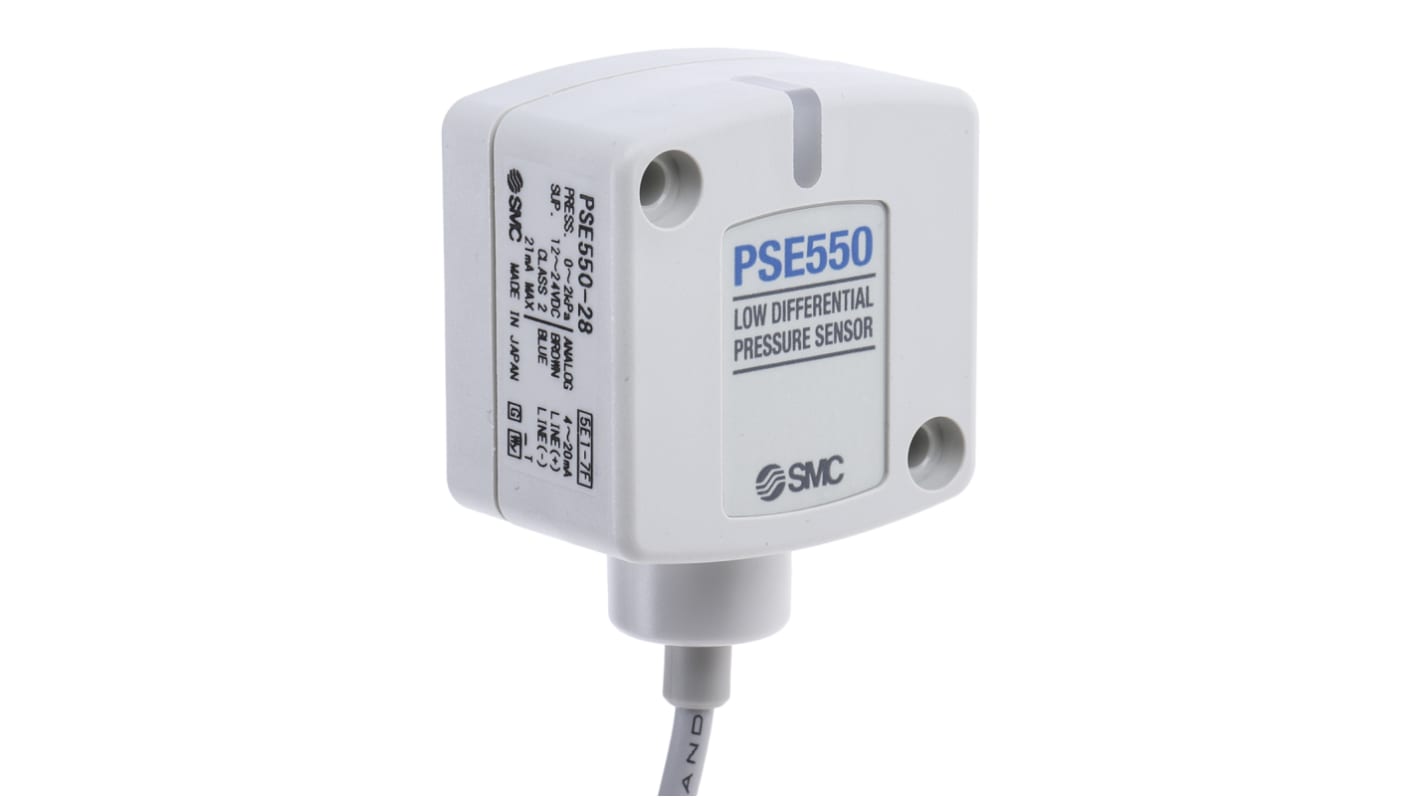

Low-differential Pressure Sensor without connector or bracket

High-sensitivity differential pressure sensor with an analogue output, suitable for use with the SMC PSE201 & PSE303 controllers. (See stock nos. 537-2675 and 537-2697) The sensor is ideal for checking the performance of dust and air conditioning filters, and duct sensing applications.

Light weight and easy to install
E-con 4-pole signal connector
4mm hose tail port connections
Power-on indicator LED
Temperature Range 0 to 50°C
Weight 35g
Comes without connector or bracket

Specifications
Attribute Value
Suitable Media Air, Gas
Proof Pressure 65kPa
Supply Voltage 12 24V dc
IP Rating IP40
Minimum Operating Pressure -50kPa
Maximum Operating Pressure 50 kPa
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
2 in stock for FREE next working day delivery
3 available from Europe for delivery within 1 working day(s)
Price Each
£ 147.75
(exc. VAT)
£ 177.30
(inc. VAT)
Units
Per unit
1 - 4
£147.75
5 +
£139.07
