Festo Pressure Sensor, 35V dc, IP65, IP67 +10 bar

  • RS Stock No. 175-2225
  • Mfr. Part No. SPAW-B11R-G12M-2PA-M12
  • Brand Festo
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

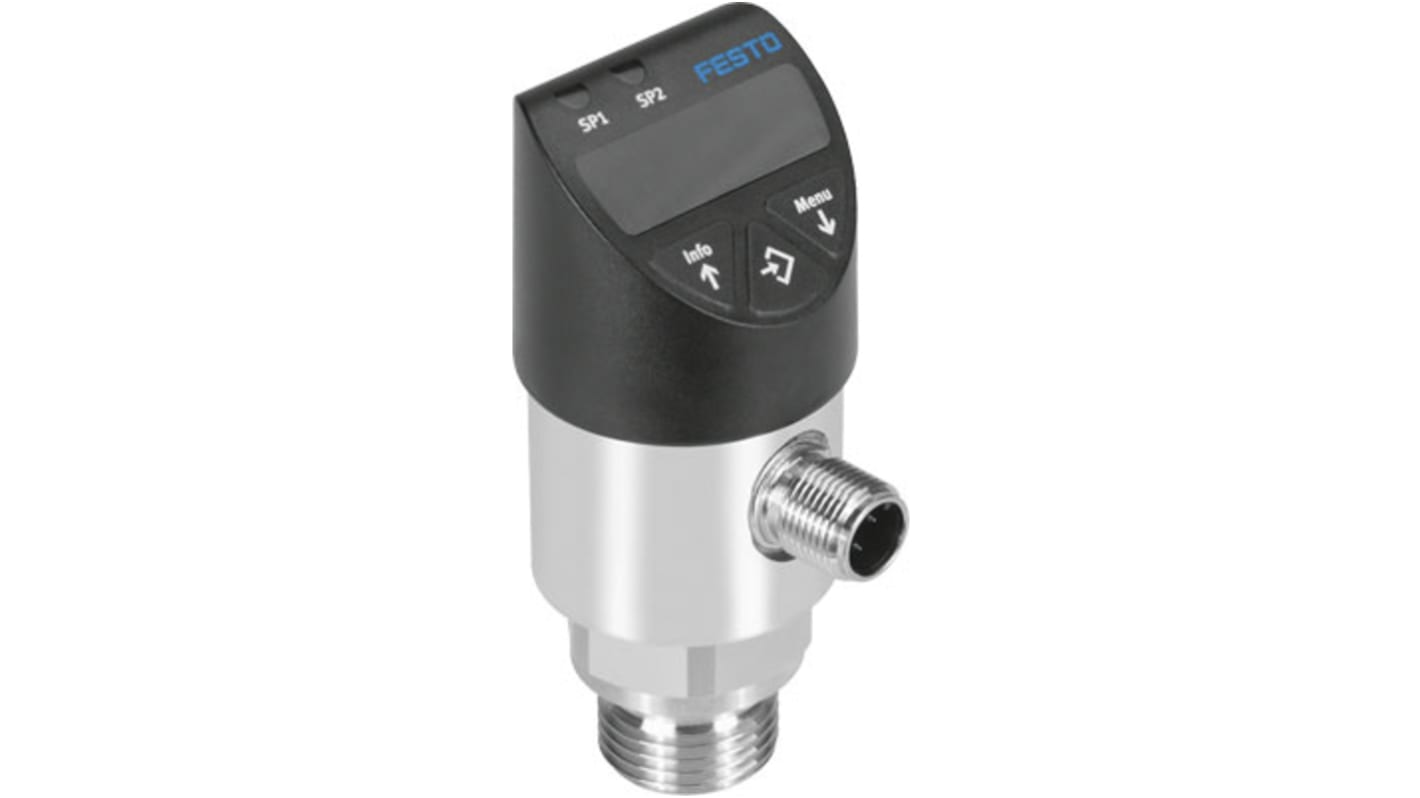

Festo Pressure Sensor

The Festo SPAW series pressure sensor is designed to measure media pressures with piezoresistive stainless steel measuring cell. It works on 35V supply voltage. The sensor measures the pressure in range of -1bar to 10bar. It has a switchable element function with normally open or normally closed contact. The sensor has a G1/2 top pneumatic connection with an external thread. It has a 4 digit, 320° rotatable LED display.

Features and Benefits

• Service temperature ranges between 0°C and 80°C
• Switching electrical output is of 2xPNP type and 1 analogue output range from 4mA to 20mA
• Numerical percentage pressure indicator
• M12x1, A-coded plug connector electrical connection
• Accuracy is ±1% FS
• Protection against tampering using security code

Applications

• High pressure pneumatic systems
• Pressure monitoring of liquid media

Certifications

• cULus approved
• CE certified
• IP67 rated
• IP65 rated

Specifications
Attribute Value
Suitable Media Air, Gas, Liquid
Supply Voltage 35V dc
IP Rating IP65, IP67
Port Connection G 1/2
Minimum Operating Pressure -1bar
Maximum Operating Pressure +10 bar
Minimum Operating Temperature 0°C
Maximum Operating Temperature +80°C
