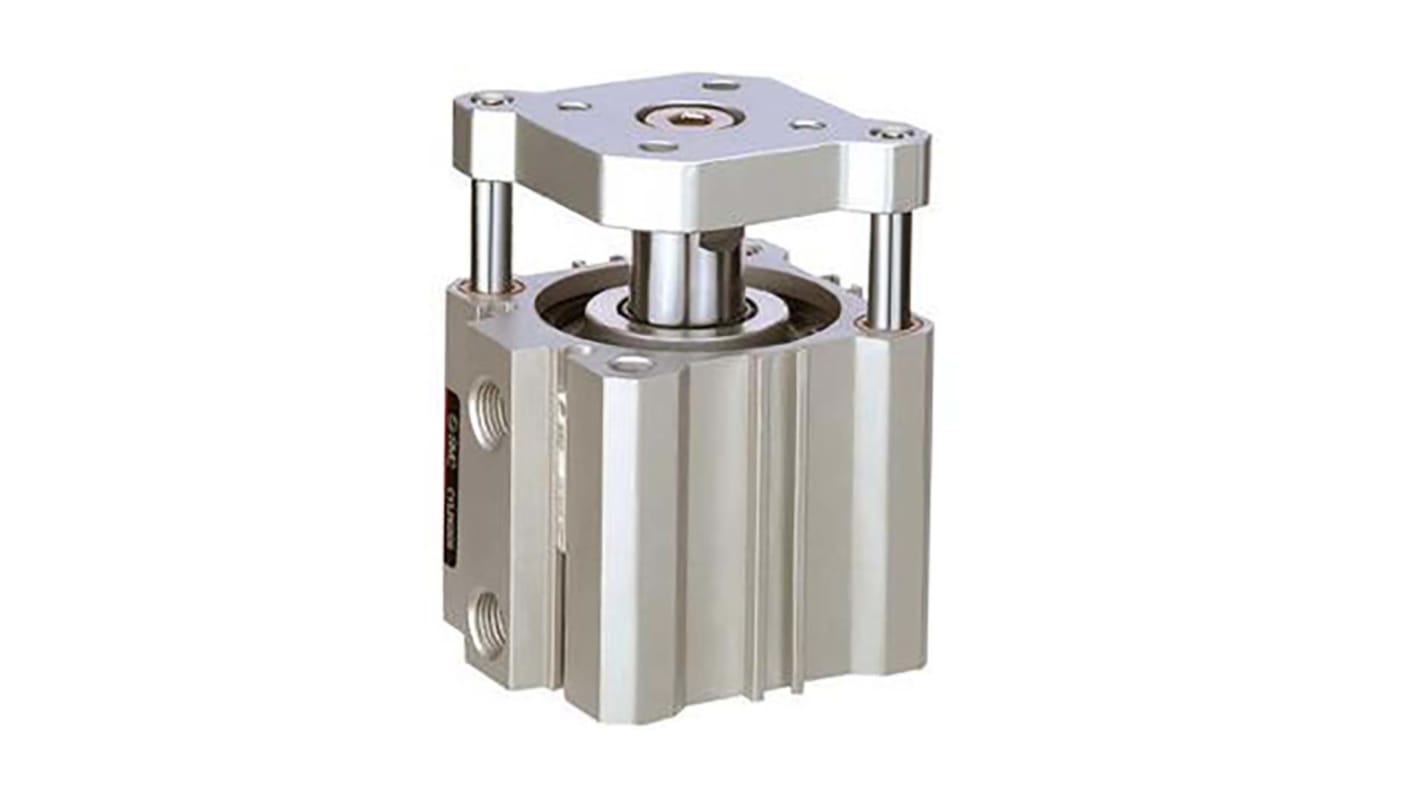

SMC Pneumatic Compact Cylinder - 32mm Bore, 75mm Stroke, CQM Series, Double Acting
- RS Stock No.:
- 196-4515
- Mfr. Part No.:
- CDQMB32TF-75
- Brand:
- SMC
Subtotal (1 unit)*
£121.90
(exc. VAT)
£146.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £121.90 |
*price indicative
- RS Stock No.:
- 196-4515
- Mfr. Part No.:
- CDQMB32TF-75
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Manufacturer Series | CQM | |
| Action | Double | |
| Stroke | 75mm | |
| Bore | 32mm | |
| Port Connection | G 1/8 | |
| Pneumatic Connection | G 1/8 | |
| Cushioning Type | Rubber Bumper | |
| Dimensions | 58.5 x 125 x 45mm | |
| Width | 125mm | |
| Length | 58.5mm | |
| Height | 45mm | |
| Maximum Operating Pressure | 1 MPa | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +60°C | |
| Weight | 564g | |
Select all | ||
|---|---|---|
Brand SMC | ||
Manufacturer Series CQM | ||
Action Double | ||
Stroke 75mm | ||
Bore 32mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Cushioning Type Rubber Bumper | ||
Dimensions 58.5 x 125 x 45mm | ||
Width 125mm | ||
Length 58.5mm | ||
Height 45mm | ||
Maximum Operating Pressure 1 MPa | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Weight 564g | ||
- COO (Country of Origin):
- JP
Guide rod type compact cylinder
Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Standard strokes (mm): 5 to 100
4 times the lateral load resistance of the CQ2K
Non-rotating accuracy 0.2 or less
Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Standard strokes (mm): 5 to 100
4 times the lateral load resistance of the CQ2K
Non-rotating accuracy 0.2 or less
