- RS Stock No.:
- 389-6618
- Mfr. Part No.:
- B53004FS
- Brand:
- Parker
Available to back order for despatch 21/05/2024
Added
Price Each
£261.79
(exc. VAT)
£314.15
(inc. VAT)
Units | Per unit |
1 - 4 | £261.79 |
5 - 9 | £251.32 |
10 + | £240.85 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 389-6618
- Mfr. Part No.:
- B53004FS
- Brand:
- Parker
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

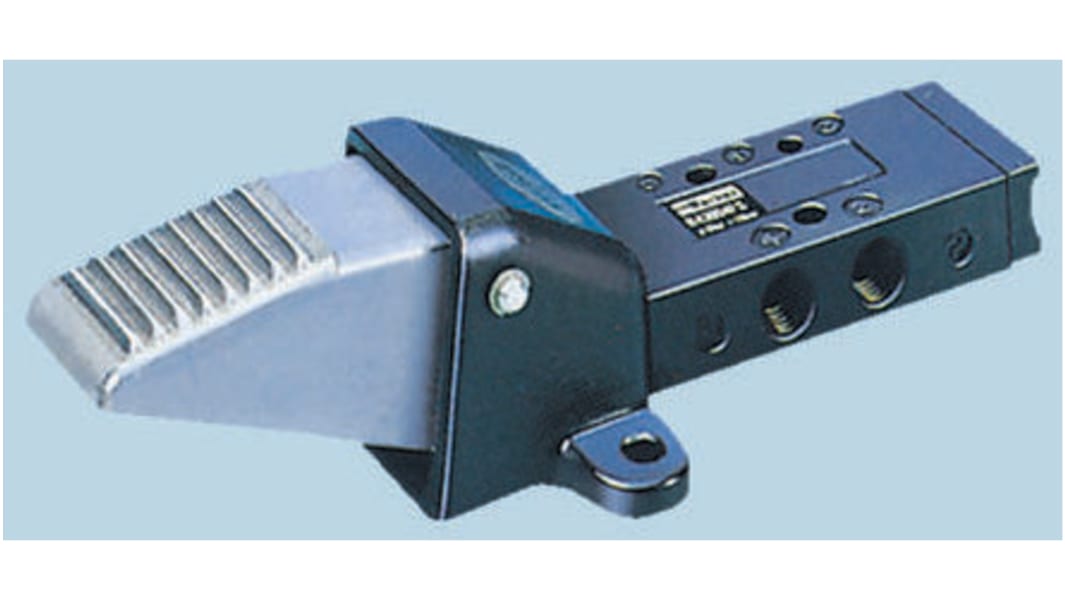

Parker Pneumatic Manual Control Valve
The Parker B53 series 5/2 port pneumatic manual control valve has a thread size of 1/4in G. This valve has a short travel and lightweight spool to obtain high operating speed. It is a foot pedal actuated spring return valve. This valve is suitable for positive pressure or vacuum line applications.
Features and Benefits
Maximum operating pressure is 10bar
Maximum flow rate is 1740L/min
Operating temperature ranges between -10°C and 80°C
Stainless steel spool gives long service life Viton seals as standard
Integral mounting holes
Maximum flow rate is 1740L/min
Operating temperature ranges between -10°C and 80°C
Stainless steel spool gives long service life Viton seals as standard
Integral mounting holes
Specifications
Attribute | Value |
---|---|
Control Mechanism | Pedal |
Connection Port Thread | G 1/4 |
Function | 5/2 |
Thread Size | 1/4in |
Thread Standard | G |
Manufacturer Series | B53 |
Maximum Operating Pressure | 10 bar |
Body Material | Die Cast Zinc |
Maximum Flow Rate | 1740L/min |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +80°C |
Number of Ports | 5/2 |
