- RS Stock No.:
- 210-2861
- Mfr. Part No.:
- 03036702
- Brand:
- Norgren
10 In stock - FREE next working day delivery available
Added
Price Each
£131.69
(exc. VAT)
£158.03
(inc. VAT)
Units | Per unit |
1 - 4 | £131.69 |
5 - 9 | £127.74 |
10 + | £123.52 |
- RS Stock No.:
- 210-2861
- Mfr. Part No.:
- 03036702
- Brand:
- Norgren
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CZ
Product Details

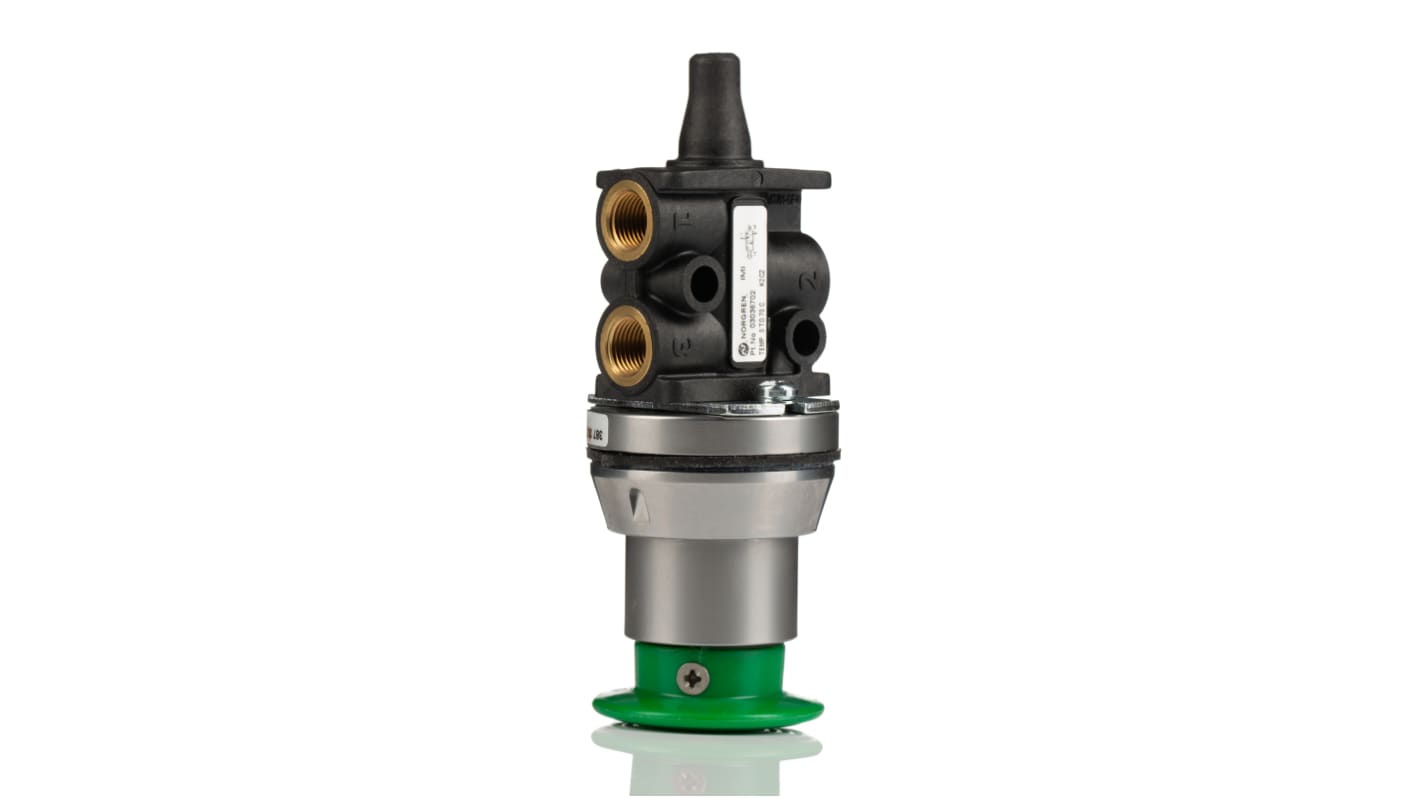

IMI Norgren Pneumatic Manual Control Valve, 3/2 Port Function, Push Button Control Mechanism - 03 Series - 03036702
This manual control valve from IMI Norgren manages the direction of your system's airflow. Its simple 3/2 port function gives you control over one airway per valve, making it suitable for handling pneumatic tools. Fitted with a 32.1mm diameter push button actuator, the device is simple to operate even when wearing gloves for reliable supply control. The unit works with system pressures between -0.9 and 10 bar so it easily directs intense air supplies.
Features & Benefits
• 335L/min maximum flow rate maintains efficient air supply
• NBR seal minimises air leakage for stable system pressure
• Corrosion-resistant PA housing protects sensitive airways in harsh settings
• Mounts with through-holes for simple installation
• NBR seal minimises air leakage for stable system pressure
• Corrosion-resistant PA housing protects sensitive airways in harsh settings
• Mounts with through-holes for simple installation
Applications
• Clamping systems
• Metalworking industry
• Vehicle repair workshops
• Goods transportation
• Metalworking industry
• Vehicle repair workshops
• Goods transportation
What media can I use this manual control valve with?
As it's a pneumatic valve, the device is recommended only for use with compressed air. Using filtered air helps to keep the valve clear of blockages. While the unit supports lubricated air supplies, you should make sure all future supplies are also lubricated to prevent contamination of clean air.
Push Button & Selector - Norgren
3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.
Specifications
Attribute | Value |
---|---|
Control Mechanism | Push Button |
Connection Port Thread | G 1/8 |
Function | 3/2 |
Thread Size | 1/8in |
Thread Standard | G |
Manufacturer Series | 03 |
Control Button/Switch Colour | Green |
Maximum Operating Pressure | 10 bar |
Body Material | Zinc Alloy |
Maximum Flow Rate | 335L/min |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +70°C |
Number of Positions | 2 |
Number of Ports | 3 |
