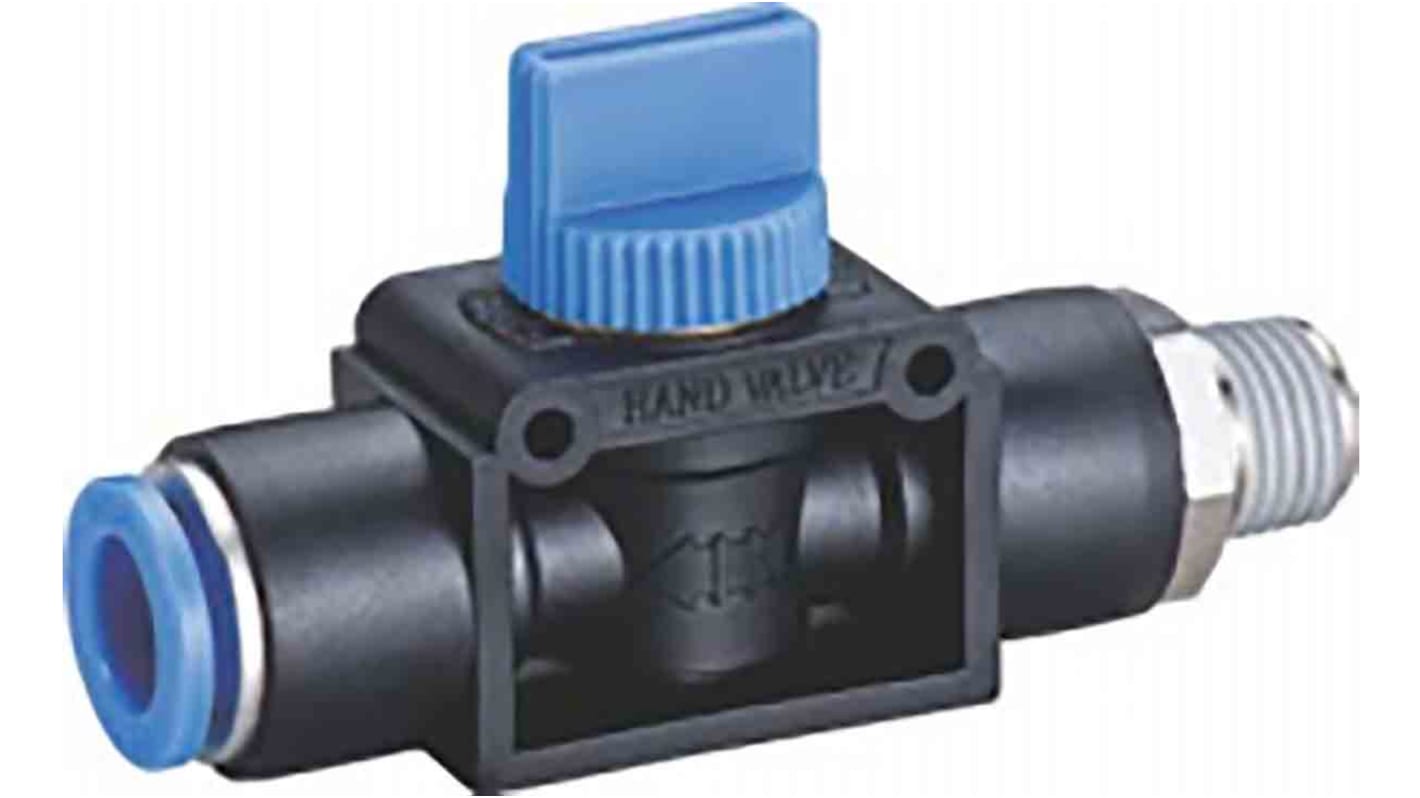

RS PRO Handle 3/2 Pneumatic Manual Control Valve

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro Manual Control Valves

Features and Benefits

• When off, the 3 way direction control valve discharges the residual pressure and blocks airflow
• It switches air pressure devices by simply turning the handle (on/off)
• Maintenance or inspection is possible when the remaining pressure in the device is removed
• A 3 way valve discharges the remaining pressure and blocks the incoming air in the off state
• There are 4 types available depending on the way it is applied to the air pressure flow
• Applicable fluid type, air (no other type of gas or liquid)
• Working pressure range 0 to 150 psi
• Working temperature range 0 to 60 °C

When off, the three way direction control valve discharges the residual pressure and blocks air flow inThis product switches air pressure devices air on/off by simply turning the handleMaintenance or inspection is possible when the remaining pressure in the device is removedA three way valve discharges the remaining pressure out and blocks the incoming air in the off stateThere are 4 types available depending on the way it is applied to the air pressure flow

Specifications
Attribute Value
Control Mechanism Handle
Function 3/2
Thread Size 1/8in
Thread Standard BSPT
Control Button/Switch Colour Blue
Maximum Operating Pressure 9.9 kgf/cm², 990 kPa
Minimum Operating Temperature 0°C
Maximum Operating Temperature +60°C
Number of Positions 3
Number of Ports 2
15 In stock for FREE next working day delivery
Price 1 Bag of 10
£ 22.64
(exc. VAT)
£ 27.17
(inc. VAT)
Bag(s)
Per Bag
Per unit*
1 +
£22.64
£2.264
*price indicative
