Festo 3/2 Closed, Monostable Pneumatic Manual Control Valve SV Series, Metric M5, M5, 6817
- RS Stock No.:
- 121-5860
- Mfr. Part No.:
- SV-3-M5
- Brand:
- Festo
46 In stock - FREE next working day delivery available
73 available from Europe for delivery within 1 working day(s).
Added
Price Each
£54.56
(exc. VAT)
£65.47
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £54.56 |
| 5 - 9 | £52.38 |
| 10 + | £50.19 |
- RS Stock No.:
- 121-5860
- Mfr. Part No.:
- SV-3-M5
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

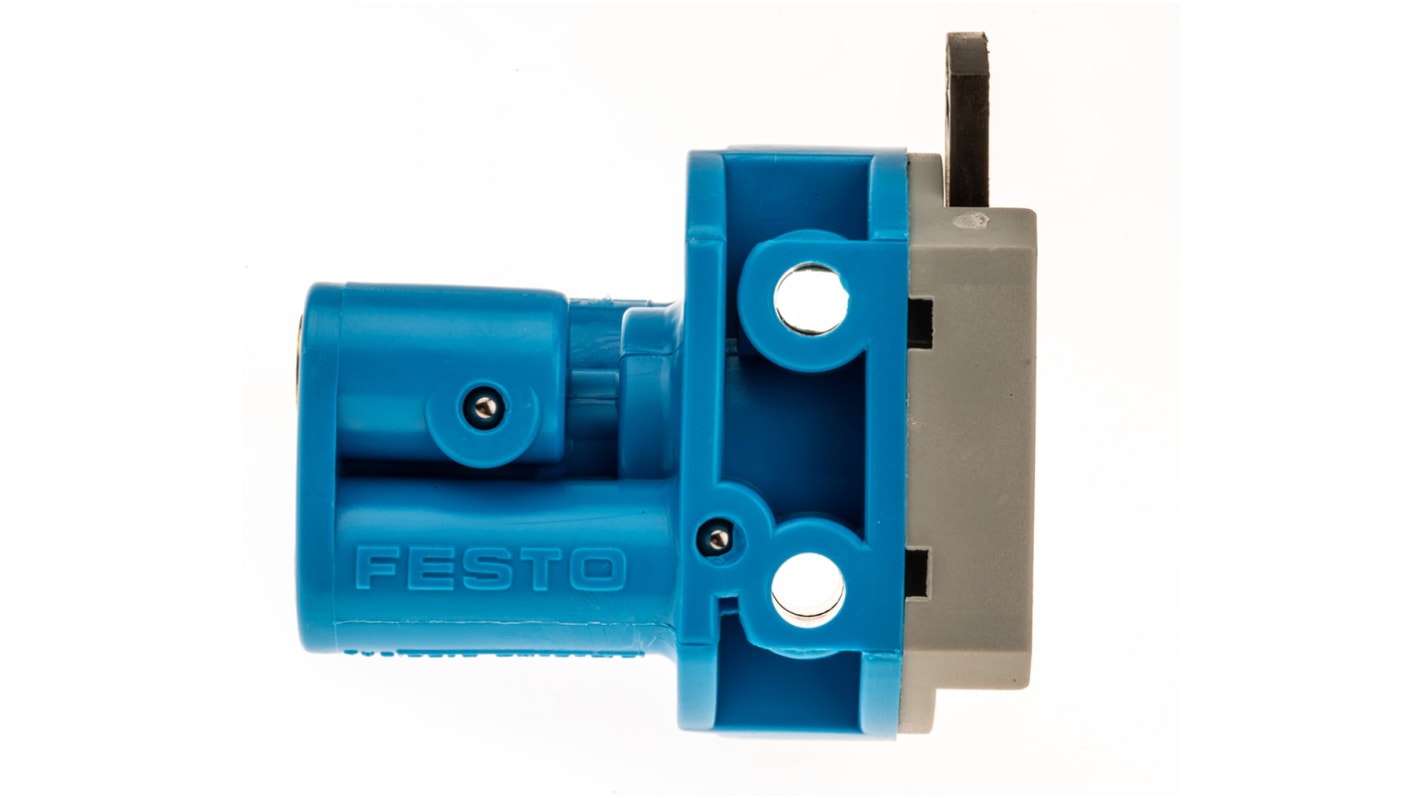

Festo Pneumatic Manual Control Valve - SV Series - SV-3-M5
This manually operated pneumatic control valve by Festo combines functionality and simplicity. The valve opens immediately when actuated, offering accuracy when fast response times are needed. It's also compatible with a variety of attachments. A controlled flow of air ensures smooth operation with every use. The three-way, two-position valve is soft-sealing and durable, so you can expect long-lasting quality. A mechanical spring reset makes it easy to use again and again. Three-port valves like this one are often used to fill and vent single-acting cylinders.
• SV panel-mount valve with M5 connection port
• Robust plastic body
• Maximum operating pressure of 8 bar
• Operating temperature of -10 °C to +60 °C
• Ultra-lightweight at 40 g
• Single solenoid valve with closed monostable function
• 2 positions, 3 ports
• No overflow between channels during switching
• Airflow provides some self-cleaning during operation
• Metric thread standard
• RoHS (Restriction of Hazardous Substances) compliant
- • The Festo SV range of modular pneumatic valves offers long-lasting service thanks to sturdy brass and plastic construction
• Each valve is compatible with pushbutton actuators, mushroom pushbuttons, selector switches and toggle switches
• A reliable coupling system ensures quick mounting and dismounting
• Items in this range meet or exceed the requirements of the ISO 9001 Standard for Quality Management and the ISO 14001 Standard for Environmental Management
Push Button & Selector - Festo
Specifications
Attribute | Value |
|---|---|
| Connection Port Thread | Metric M5 |
| Function | 3/2 Closed, Monostable |
| Thread Size | M5 |
| Thread Standard | Metric |
| Manufacturer Series | SV |
| Maximum Operating Pressure | 8 bar |
| Body Material | Plastic |
| Maximum Flow Rate | 65L/min |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Number of Ports | 3 |
| Number of Positions | 2 |
| Model Number p | 6817 |
- RS Stock No.:
- 121-5860
- Mfr. Part No.:
- SV-3-M5
- Brand:
- Festo
