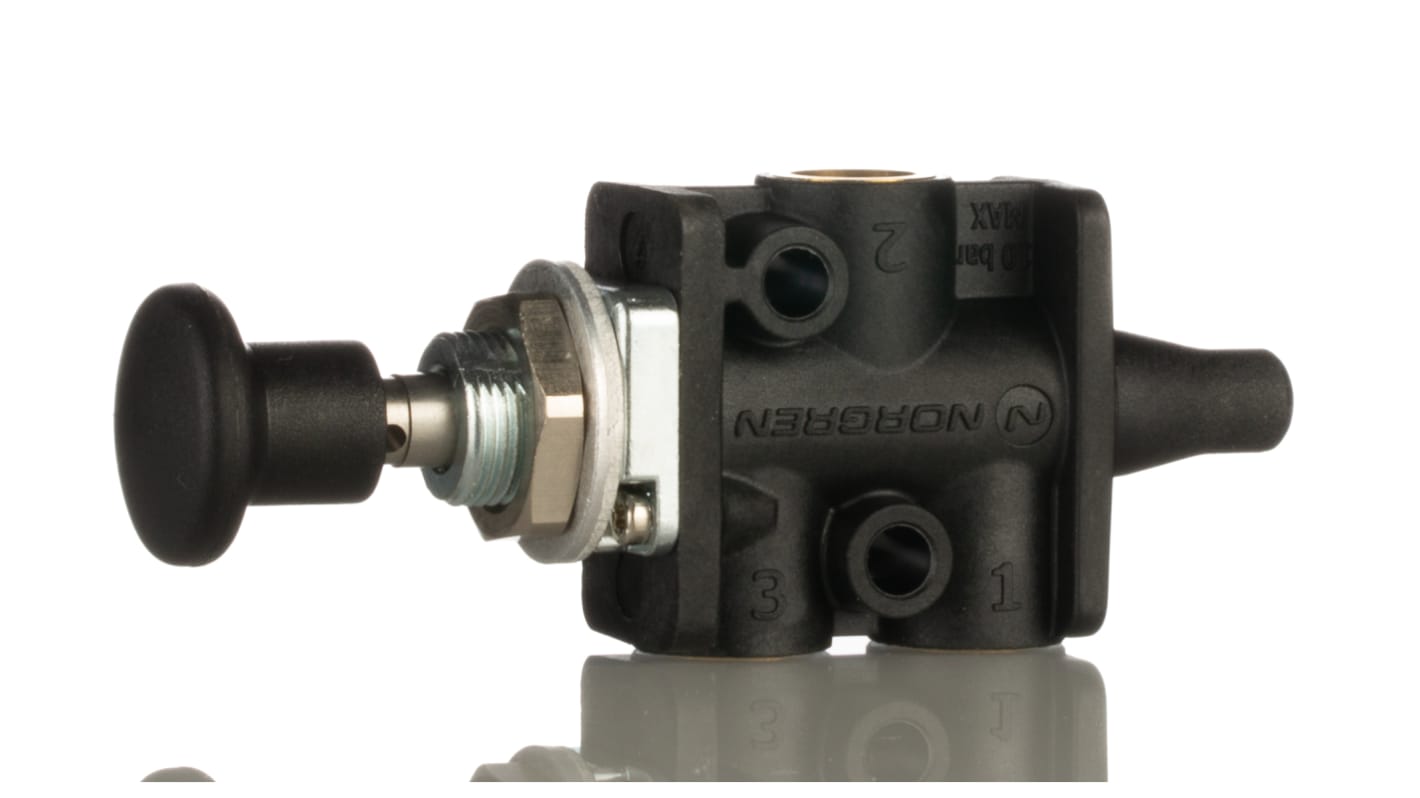

Norgren Knob 3/2 Pneumatic Manual Control Valve 03 Series

  • RS Stock No. 722-340
  • Mfr. Part No. 03042502
  • Brand Norgren
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Button/Button Valve

Note

Due to manufacturer change, valves of 3/2 function now have moulded polymer (Fortron PPS) body which replaces the older metal body

//media.rs-online.com/t_line/L722340-01.gif
//media.rs-online.com/t_line/L722429-02.gif
//media.rs-online.com/t_line/LD722429-02.gif

Push Button & Selector - Norgren

3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.

Specifications
Attribute Value
Control Mechanism Knob
Function 3/2
Connection Port Thread G 1/8
Thread Size 1/8in
Thread Standard G
Manufacturer Series 03
Control Button/Switch Colour Black
Maximum Operating Pressure 10 bar
Body Material Zinc Alloy
Maximum Flow Rate 335L/min
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Number of Ports 3/2
3 In stock for FREE next working day delivery
Price Each
£ 47.80
(exc. VAT)
£ 57.36
(inc. VAT)
Units
Per unit
1 - 4
£47.80
5 - 9
£46.34
10 +
£44.84
