- RS Stock No.:
- 299-4165
- Brand:
- RS PRO
- RS Stock No.:
- 299-4165
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

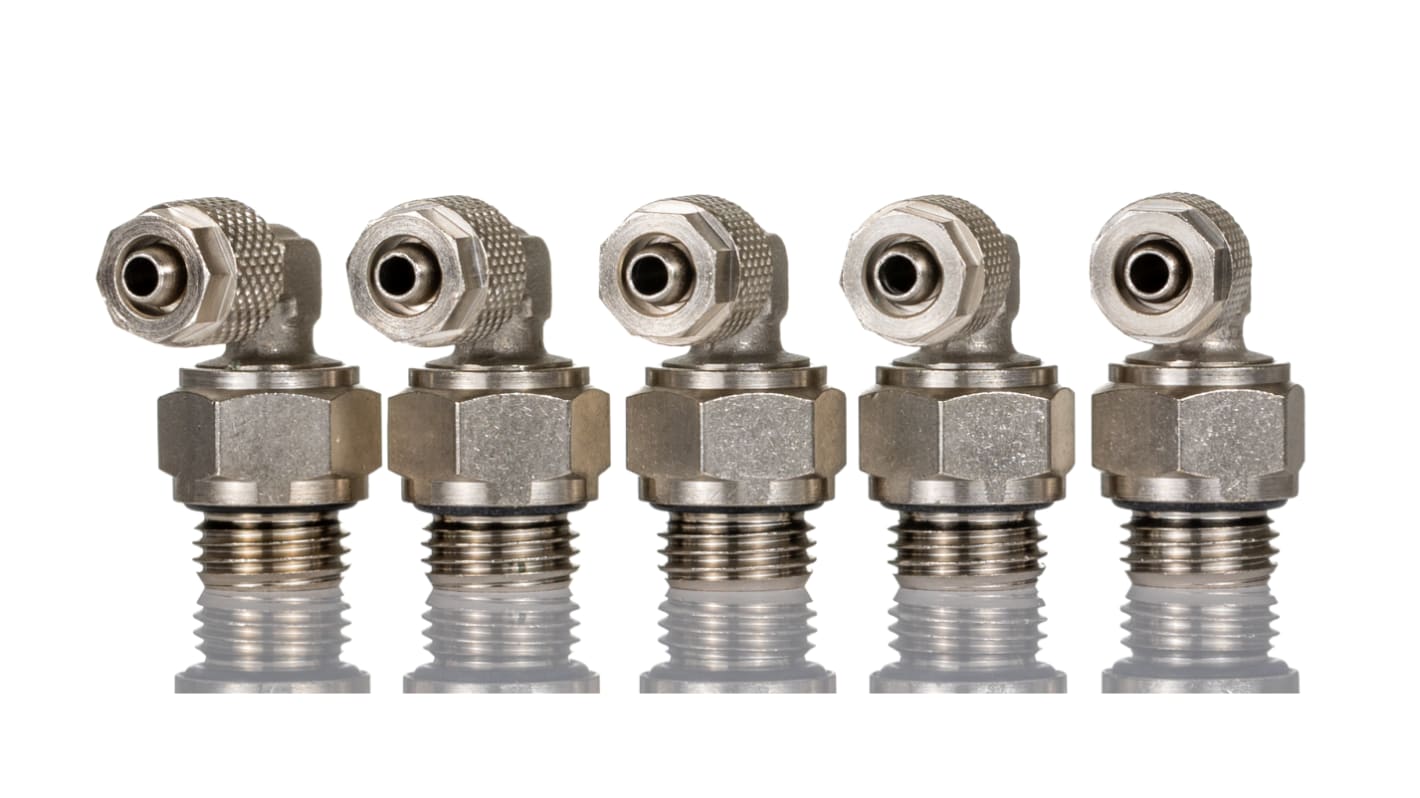

Elbow Adaptor - Male Tapered/Parallel
Threaded Tube-to-Tube & Adaptors
The push-on and screw collar design of these fittings makes them secure and suitable for instrumentation, vacuum and general purpose applications, and they can be used with nylon or polyurethane tubing.
Operating Temperature Range -18 to +70°C
Operating Pressure of -1 to 15 bar
Operating Pressure of -1 to 15 bar
Specifications
Attribute | Value |
---|---|
Connector A | G 1/4 Male |
Connector B | Push In 6 mm |
Pneumatic Fitting Type | Elbow Threaded Adaptor |
Connection Style | Threaded-to-Tube |
Threaded Connection | G 1/4 Male |
Angle | 90° |
Swivel Connection | No |
Maximum Operating Pressure | 15 bar |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -18°C |
Standards Met | RoHS Compliant |
