- RS Stock No.:
- 267-9248
- Mfr. Part No.:
- F74G-6GN-AP3
- Brand:
- Norgren
- RS Stock No.:
- 267-9248
- Mfr. Part No.:
- F74G-6GN-AP3
- Brand:
- Norgren
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- MX
Product Details

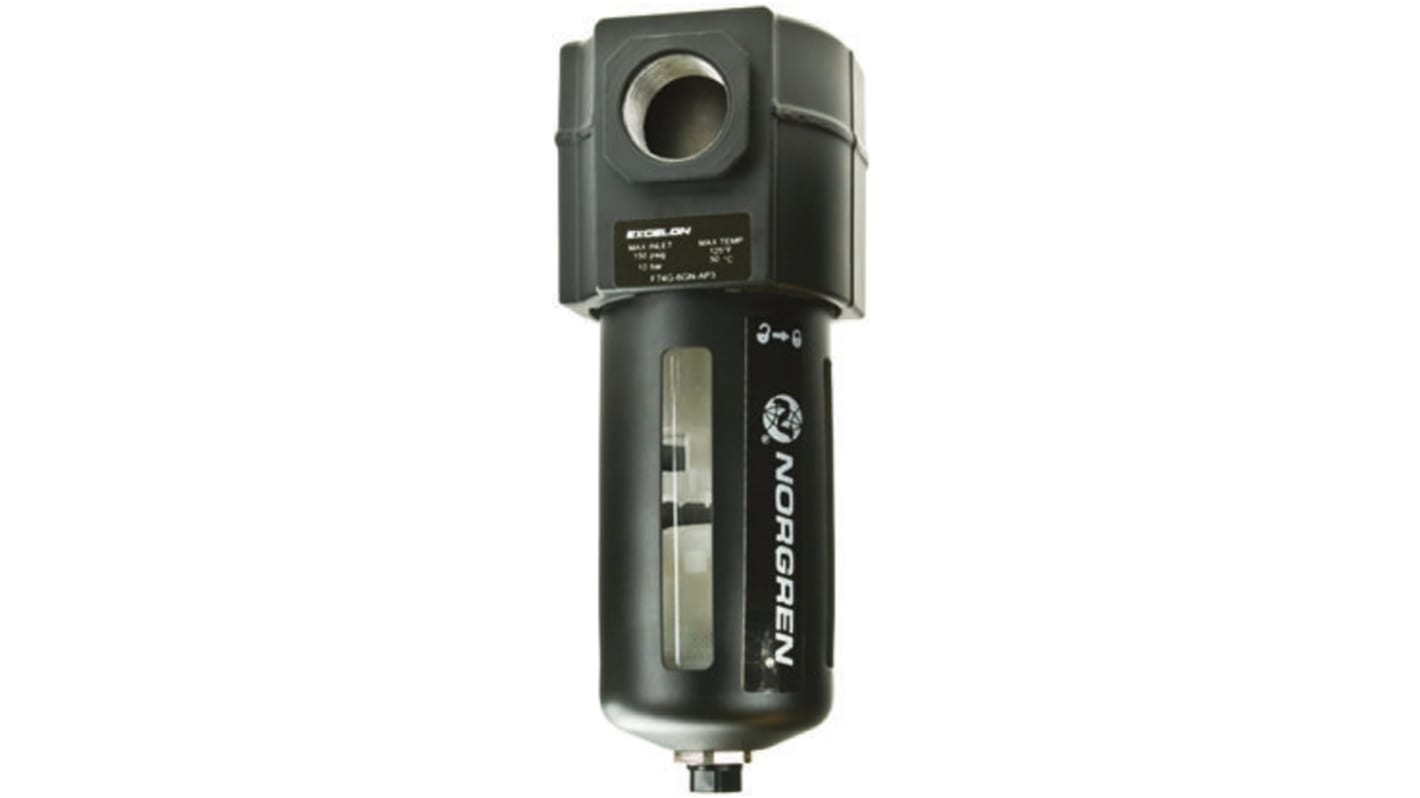

General Duty Filter
Removes water vapour and impurities from the air supply
Filtration size 40 μm
Manual drain filter incorporates a quarter-turn knob with threaded pipe-away outlet
Transparent polycarbonate bowl
Temperature range -34°C to +50°C
Element material sintered polypropylene
Filtration size 40 μm
Manual drain filter incorporates a quarter-turn knob with threaded pipe-away outlet
Transparent polycarbonate bowl
Temperature range -34°C to +50°C
Element material sintered polypropylene
Note
Typical flow @ 6 bar inlet pressure and 0.5 bar pressure drop.
Standards
ISO 8573-1, Class 5 & Class 3
Filters
Specifications
Attribute | Value |
---|---|
Filtration Size | 40µm |
Port Connection | G 3/4 |
Drain Type | Automatic |
Manufacturer Series | F74G |
Typical Flow Rate | 83L/s |
Maximum Operating Pressure | 10 bar |
Maximum Operating Temperature | +50°C |
Port Connection Thread Standard | G |
Minimum Operating Temperature | -34°C |
Port Connection Thread Size | 3/4 in |
