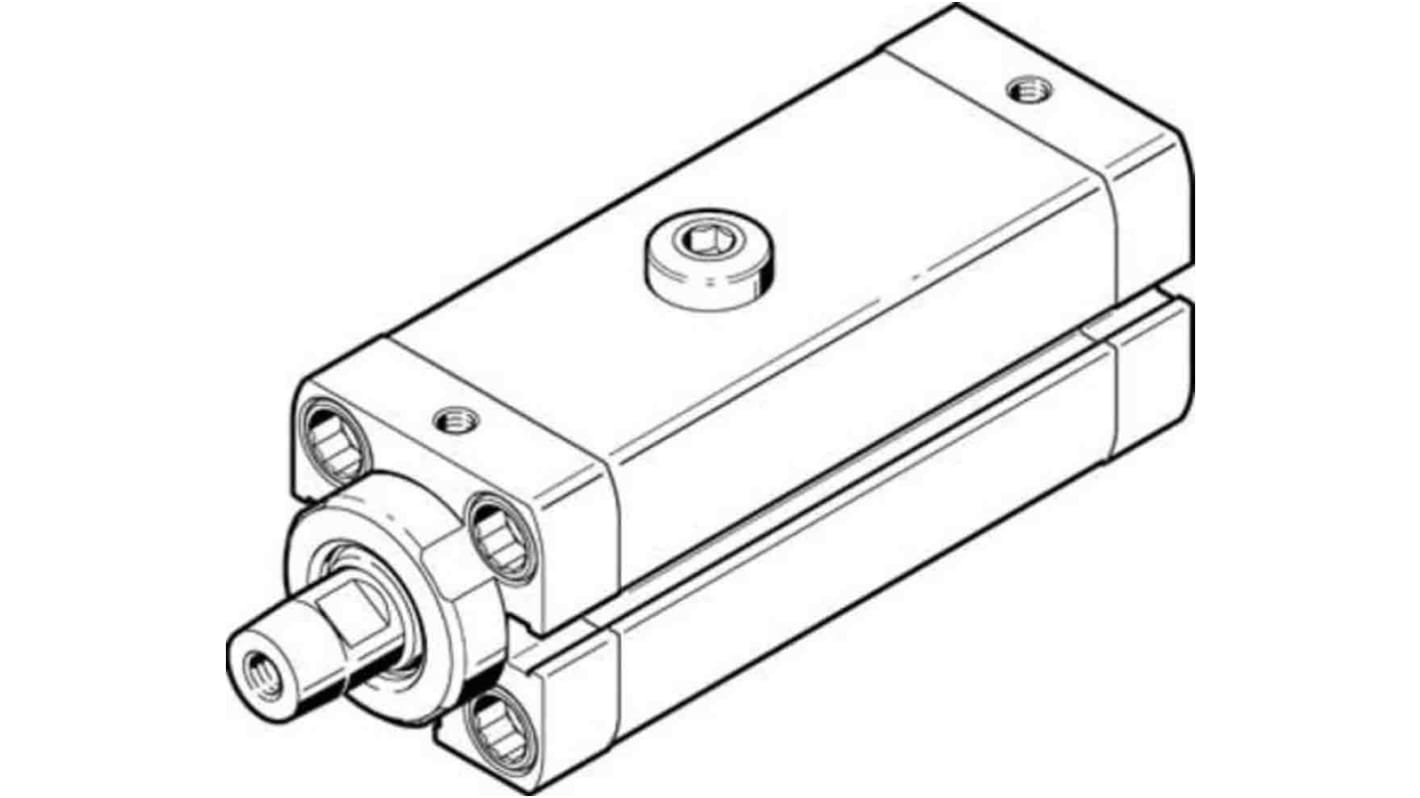

Festo Clamping Actuator CLR-25-20-R-P-A-K11-R8
- RS Stock No.:
- 202-9478
- Mfr. Part No.:
- CLR-25-20-R-P-A-K11-R8
- Brand:
- Festo
Available to back order for despatch 21/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£395.64
(exc. VAT)
£474.77
(inc. VAT)
| Units | Per unit |
| 1 + | £395.64 |
- RS Stock No.:
- 202-9478
- Mfr. Part No.:
- CLR-25-20-R-P-A-K11-R8
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Festo linear/swivel clamp CLR-25-20-R-P-A-K11-R8 clamping system with linear and swivel motion 90 degrees to the right. It has standard hole pattern according to ISO 21287 With dust and weld spatter protection.
Total stroke 33 mm
Piston diameter 25 mm
Piston rod thread M6
Swivel angle 90 deg +/- 3 deg
Clamping stroke 20 mm
Piston diameter 25 mm
Piston rod thread M6
Swivel angle 90 deg +/- 3 deg
Clamping stroke 20 mm
Specifications
Attribute | Value |
|---|---|
| Clamp Stroke | 20mm |
| Bore | 25mm |
| Maximum Operating Pressure | 10 bar |
| Rotary Angle | 90° |
| Manufacturer Series | CLR-25-20-R-P-A-K11-R8 |
| Absolute Maximum Pressure | 10bar |
