MK Electric RAL5015 2 Gang Plug Socket, 2 Poles, 13A, Type G - British

  • RS Stock No. 666-5164
  • Mfr. Part No. K2947CE BLU
  • Brand MK Electric
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

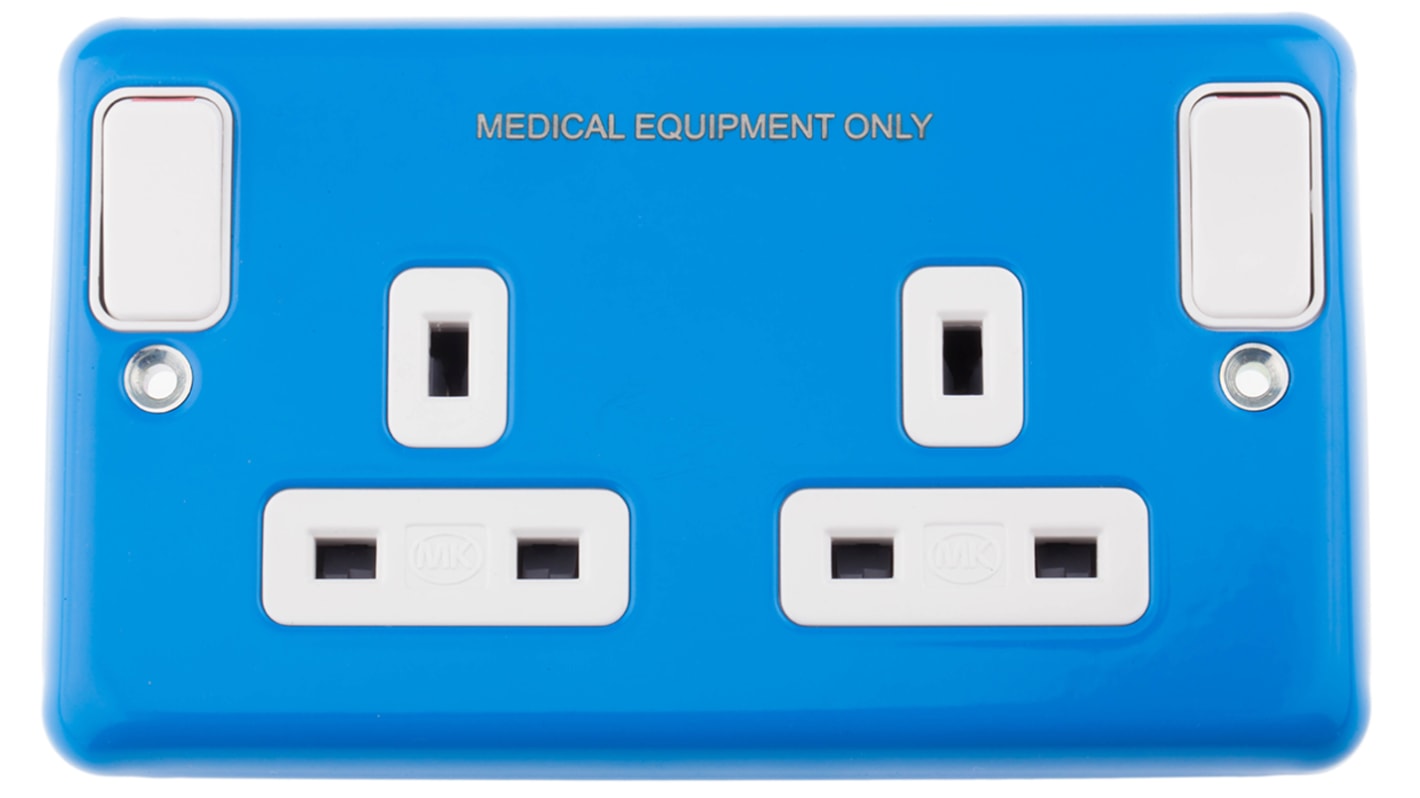

Isolated Power Supply (IPS) Sockets

The MEIGan document published in September 2007 has givenhealthcare organisations clear and strict guidance regarding electrical wiring and installation within new, refurbished or upgraded healthcare establishments. The guidance is not retrospective.

Double pole or unswitched 'clean earth' sockets
Colour coded blue
Engraved in white lettering 'Medical Equipment Only'
Meets the requirements of the MEIGAN document

Note

Where existing metal back boxes are to be used, clean earth sockets should be fitted.

Specifications
Attribute Value
Number of Gangs 2
Colour RAL5015
Switched Yes
Indoor or Outdoor Use Indoor
Socket Type Type G - British
Mounting Style Flush Mount
Current Rating 13A
Voltage Rating 230V ac
Material Steel Metal Clad
Minimum Box Depth 25mm
Overall Height 86mm
Overall Width 146mm
Colour Family Blue
Switch Style Rocker
Series Albany Plus
Fixing Standard BS
Faceplate Depth 7mm
Finish Semi Gloss
International Protection Rating IP2XD
Earth Terminal Yes
Faceplate Mounting Type Screwed
Terminal Type Captive Screw
Number of Poles 2
Number of Modules 2
8 In stock for FREE next working day delivery
Price Each
£ 38.23
(exc. VAT)
£ 45.88
(inc. VAT)
Units
Per unit
1 - 9
£38.23
10 - 49
£36.33
50 +
£34.41
