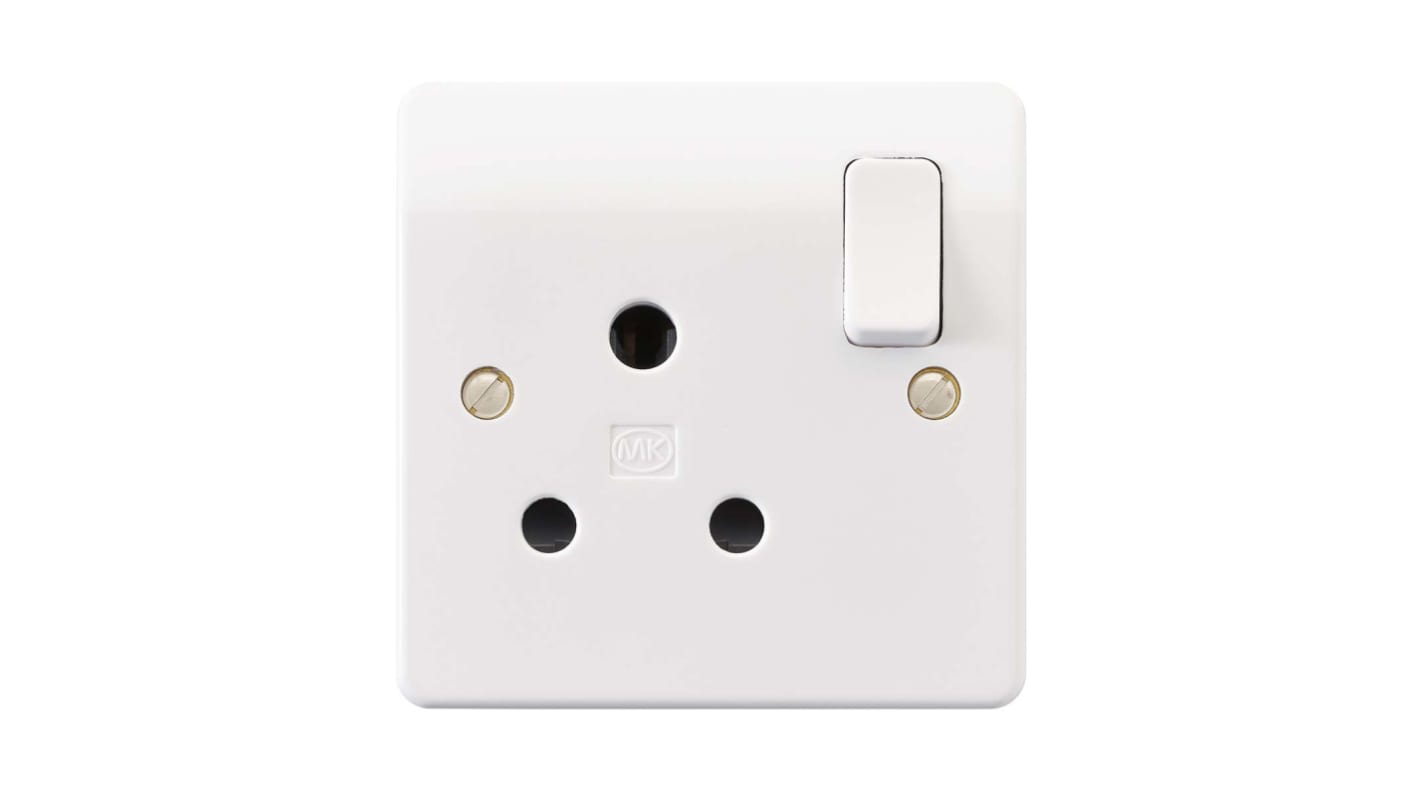

MK Electric White 1 Gang Electrical Socket, 1 Pole, 15A
- RS Stock No.:
- 188-4368
- Mfr. Part No.:
- K2893WHI
- Brand:
- MK Electric
25 In stock - FREE next working day delivery available
Added
Price Each
£16.88
(exc. VAT)
£20.26
(inc. VAT)
| Units | Per unit |
| 1 + | £16.88 |
- RS Stock No.:
- 188-4368
- Mfr. Part No.:
- K2893WHI
- Brand:
- MK Electric
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- MY
Product Details
Moulded ’on’ indicator flash on plastic switches will not rub off – totally safe
Matching Metal rocker Switches (Edge™ and Aspect only)
Optional neon indicators in the switch rockers with 175° visibility in the horizontal and vertical planes
3 pin operated safety shutter
Printed terminal markings on grey rear mouldings for clearer identification
Top access, angled terminals make wiring easier and quicker
3mm minimum switch contact gap
Double pole switching
Choice of inboard or outboard positioned rockers
Additional electrical safety from DP Switch, neutral ’make first’, ’break last’ feature
Switch contacts with silver contacts on both surfaces for good continuity
Only one size of screwdriver required for installation
Selection of products incorporating dual earth terminals for high integrity earthing
Backed out and captive terminal screws
’Clean earth’ sockets available
Non-standard ’clean earth’ sockets available
Matching Metal rocker Switches (Edge™ and Aspect only)
Optional neon indicators in the switch rockers with 175° visibility in the horizontal and vertical planes
3 pin operated safety shutter
Printed terminal markings on grey rear mouldings for clearer identification
Top access, angled terminals make wiring easier and quicker
3mm minimum switch contact gap
Double pole switching
Choice of inboard or outboard positioned rockers
Additional electrical safety from DP Switch, neutral ’make first’, ’break last’ feature
Switch contacts with silver contacts on both surfaces for good continuity
Only one size of screwdriver required for installation
Selection of products incorporating dual earth terminals for high integrity earthing
Backed out and captive terminal screws
’Clean earth’ sockets available
Non-standard ’clean earth’ sockets available
Specifications
Attribute | Value |
|---|---|
| Number of Gangs | 1 |
| Colour | White |
| Mounting Style | Flush Mount |
| Current Rating | 15A |
| Voltage Rating | 250 V |
| Minimum Box Depth | 25mm |
| Overall Height | 86mm |
| Overall Width | 86mm |
| Series | Logic Plus |
| International Protection Rating | IP2XD |
| Overall Dimensions | 86 x 86mm |
| Earth Terminal | Yes |
| Colour Family | White |
| Faceplate Mounting Type | Screwed |
| Faceplate Depth | 23mm |
| Terminal Type | Screw Terminal |
| Number of Poles | 1 |
| Switch Style | Rocker |
