- RS Stock No.:
- 158-5293
- Mfr. Part No.:
- 02 06 180
- Brand:
- Knipex
- RS Stock No.:
- 158-5293
- Mfr. Part No.:
- 02 06 180
- Brand:
- Knipex
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

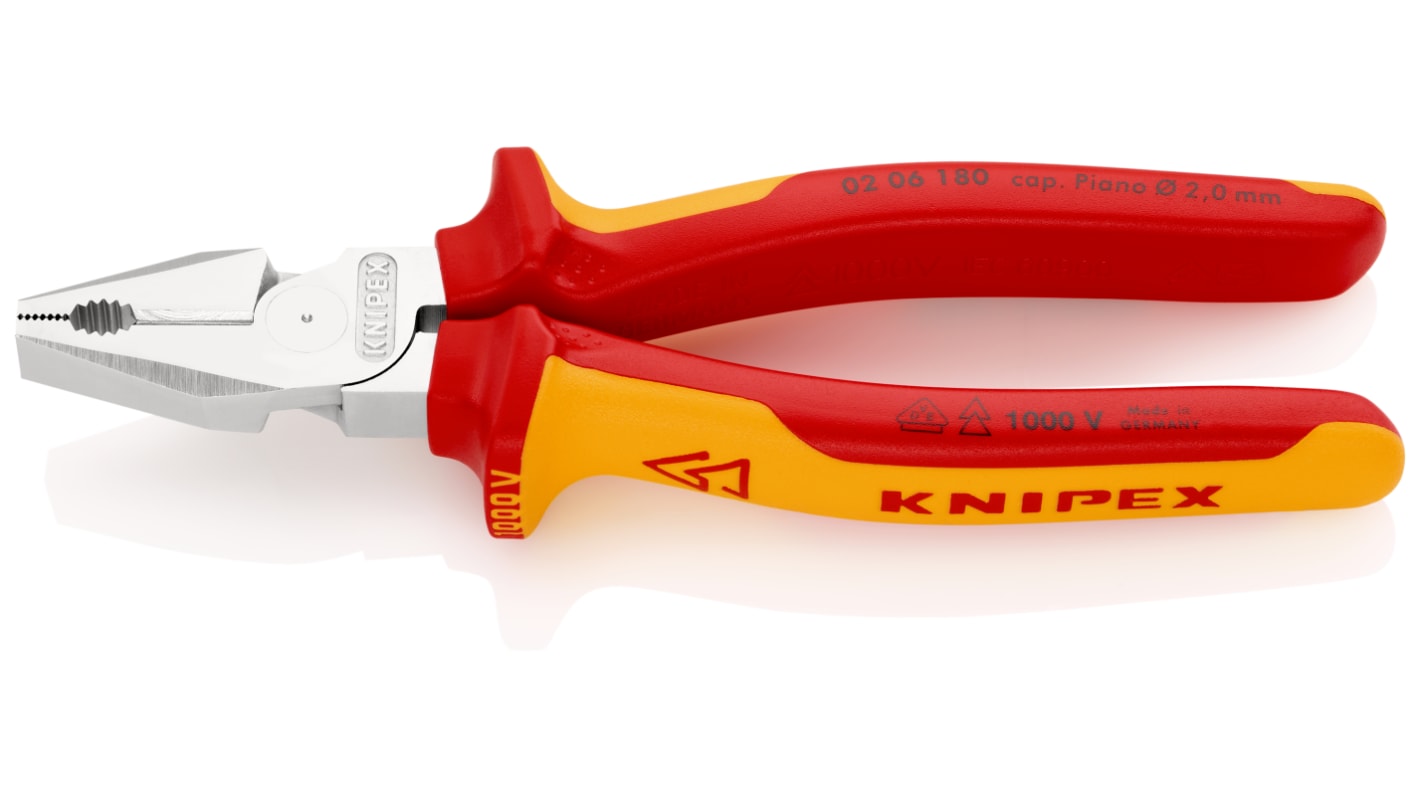

180mm high leverage universal pliers - Chrome plated - 1000V insulated
High leverage - 180mm - 1000V VDE certified insulated bi-material sheath
For easy cutting and powerful gripping, bending and pulling
Combination pliers capable of withstanding the highest stress continuously
35% reduction in force required due to improved leverage / easier to work with due to optimised gearing
Long cutting edges / Cutting edges for all wires, even thick cables
With cutting edges (hardness approx. 63 HRC) for use in rough conditions
With special grip zones for flat and round materials for versatile use
Long cutting edges for thick cables
Special quality tool steel, forged, oil-hardened
For easy cutting and powerful gripping, bending and pulling
Combination pliers capable of withstanding the highest stress continuously
35% reduction in force required due to improved leverage / easier to work with due to optimised gearing
Long cutting edges / Cutting edges for all wires, even thick cables
With cutting edges (hardness approx. 63 HRC) for use in rough conditions
With special grip zones for flat and round materials for versatile use
Long cutting edges for thick cables
Special quality tool steel, forged, oil-hardened
Standards
DIN ISO 5746
Specifications
Attribute | Value |
---|---|
Plier Type | Combination Pliers |
Number of Pieces | 1 |
VDE/1000V Approved | Yes |
Overall Length | 180 mm |
Cutting Capacity | Hard Wire: 2,5 mm Piano Wire: 2 mm Stranded Wire: 11,5 mm |
ESD Safe | No |
Tip Style | Straight |
Material | Special Quality Tool Steel |
Non Sparking | No |
Height Safe | No |
Material Cutting Capability | Hard Wire; Piano Wire; Stranded Wire |
