- RS Stock No.:
- 508-3993
- Mfr. Part No.:
- 750963
- Brand:
- Wago
- RS Stock No.:
- 508-3993
- Mfr. Part No.:
- 750963
- Brand:
- Wago
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

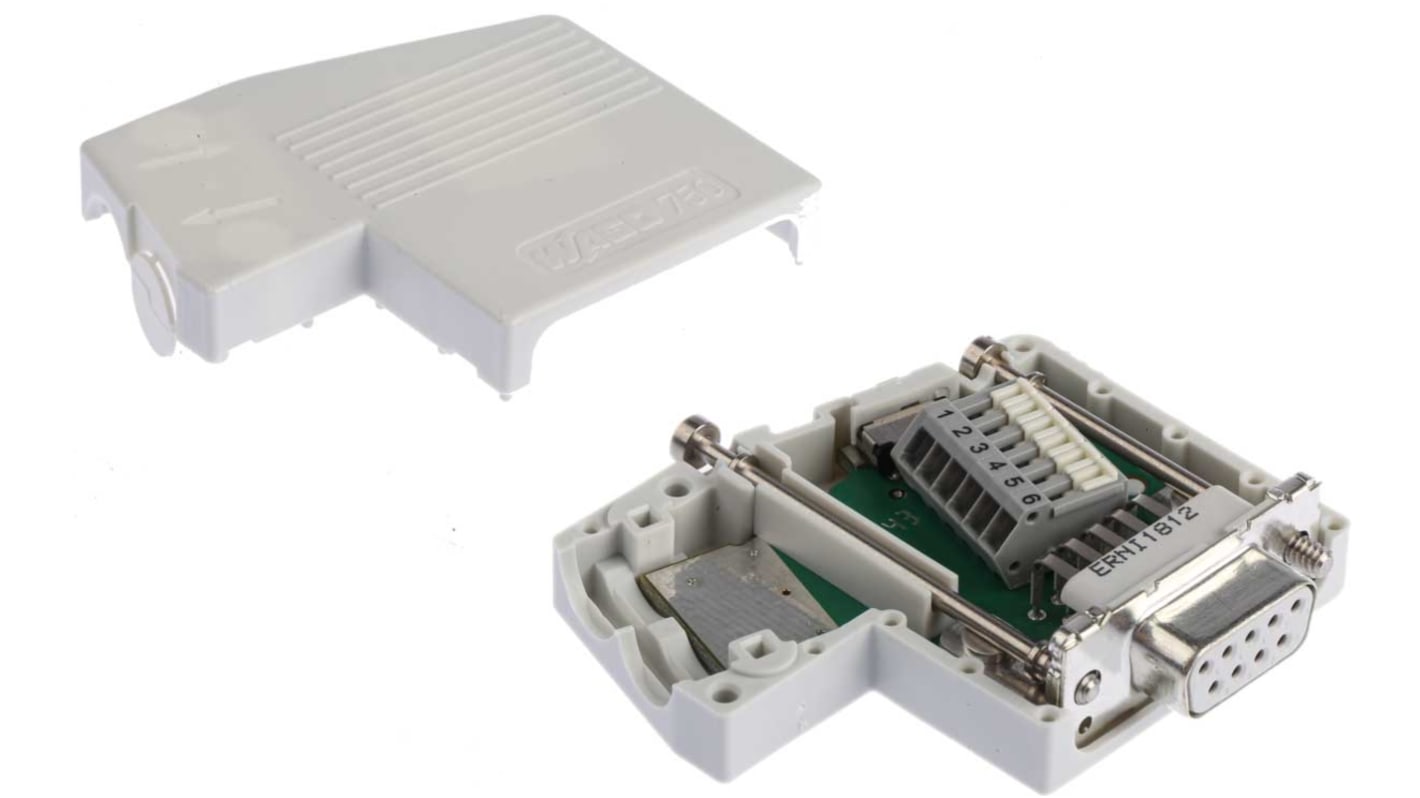

Wago CANopen Connector
The Wago CANopen connector is an innovation that links a CANopen device to a CANopen line It has Buchse D-Sub 9 female connector.
BUS connectors:
Rewireable bus interface connectors are suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus), and Profibus systems. Compact and high quality, the 9-poles sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.
Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
BUS connectors:
Rewireable bus interface connectors are suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus), and Profibus systems. Compact and high quality, the 9-poles sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.
Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
Features and Benefits
Two horizontal cable entries: one input and one output
Fast and maintenance‐free cage clamp connection can be held in the open position with the help of an actuation slide mechanism
Externally operable switch to activate and/or deactivate the network terminating resistor
Enables the quick, easy connection of incoming and outgoing bus lines
Baud rate:1Mbit/s
Supply voltage: 4.75VDC to 5.25VDC
Operating temperature ranges between 0°C and 60°C
Fast and maintenance‐free cage clamp connection can be held in the open position with the help of an actuation slide mechanism
Externally operable switch to activate and/or deactivate the network terminating resistor
Enables the quick, easy connection of incoming and outgoing bus lines
Baud rate:1Mbit/s
Supply voltage: 4.75VDC to 5.25VDC
Operating temperature ranges between 0°C and 60°C
Certifications
IP20 rated
IEC 60068-2-6
cULus 508 approved
TUV certified
EN 60079-0
IEC 60079-0
IEC 60068-2-6
cULus 508 approved
TUV certified
EN 60079-0
IEC 60079-0
Specifications
Attribute | Value |
---|---|
Accessory Type | Connector |
For Use With | CANOpen |
