RS PRO Black Plastic Sheet, 500mm x 500mm x 50mm
- RS Stock No.:
- 193-5519
- Brand:
- RS PRO
6 In stock - FREE next working day delivery available
Added
Price 1 Lot of 1
£263.77
(exc. VAT)
£316.52
(inc. VAT)
| Lot(s) | Per Lot |
| 1 - 2 | £263.77 |
| 3 - 9 | £245.30 |
| 10 - 29 | £232.11 |
| 30 + | £211.02 |
- RS Stock No.:
- 193-5519
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

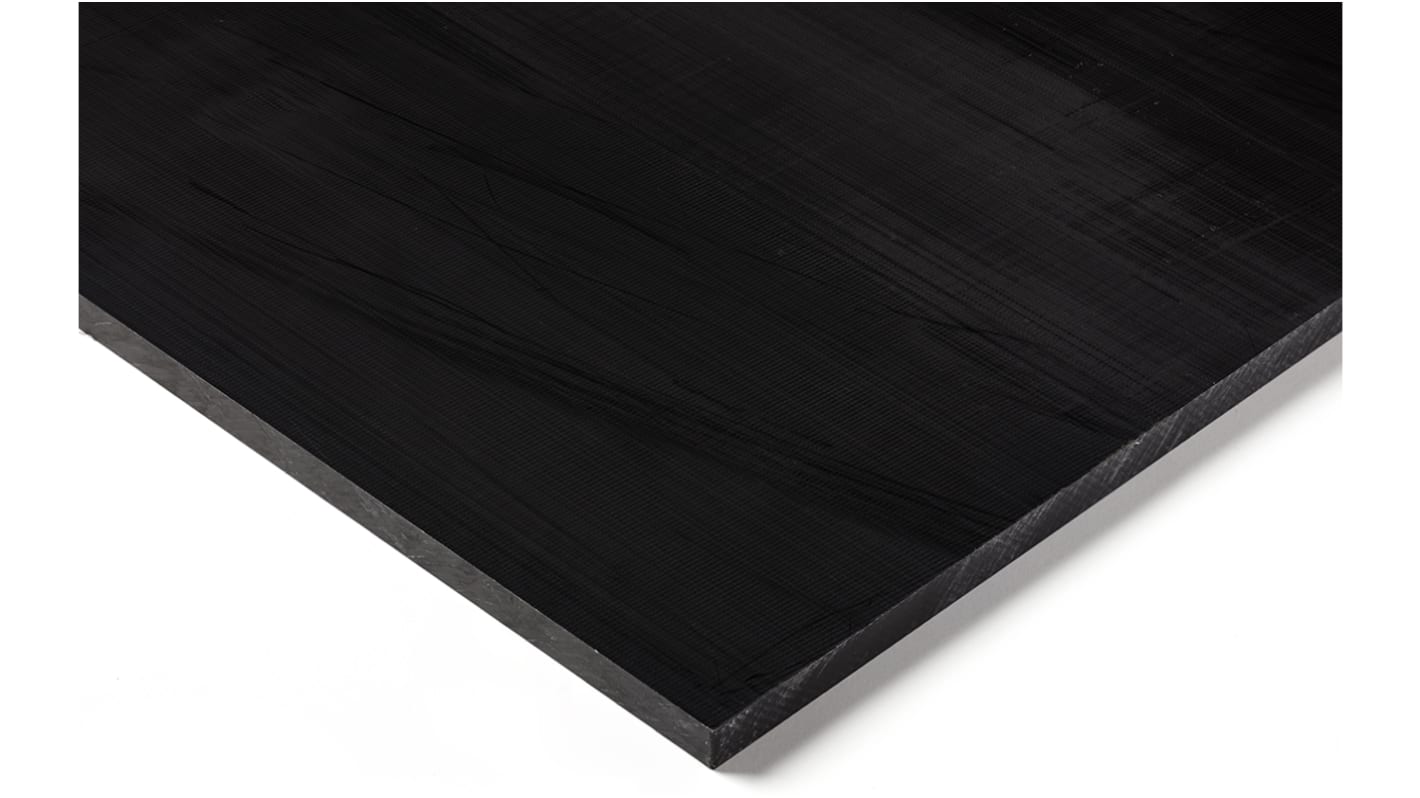

MoS2 Filled Cast Nylon 6 Sheet, 500 mm x 500 mm x 50mm
A high quality and durable Cast Nylon sheet with a Molybdenum Disulphide (MoS2) with a tensile strength of 82 MPa.
Made from Cast Nylon 6 the sheet has a high level of mechanical strength, is resistant to common oils and fuels, abrasion and is ultra-violet light resistant.
The Cast Nylon sheet is electrically insulating and is safe for use at temperatures up to +170°C with melting point of +217°C.
Low friction and self lubricating the Molybdenum Disulphide Cast Nylon 6 sheet has good slide and wear properties, good damping properties and is suitable for the creation of bushes, bearings, gears and wheels.
Features and Benefits
Cast Nylon 6 sheet
Molybdenum Disulphide filler
500 x 500 x 50mm
High mechanical strength
Flame retardant
Good slide and wear properties
Resistance to common oils, greases and fuels
Resistant to all common solvents
Standards and Approvals: DIN 5014, ISO 9001
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Nylatron® / MoS2 Filled Nylon
These materials are abrasion resistant and self-lubricating and have reasonably good chemical resistance to weak acids.
Specifications
Attribute | Value |
|---|---|
| Colour | Black |
| Form | Full |
| Length | 500mm |
| Width | 500mm |
| Thickness | 50mm |
| Material | Nylon |
| Laminated | No |
| Density | 1.15g/cm³ |
| Tensile Strength | 75 MPa |
| Hardness | 170 Ball Indentation |
| Flammability Rating | UL 94 HB |
| Water Absorption | 6% |
| Thermal Conductivity | 0.33W/mK |
| Maximum Operating Temperature | +170°C |
| Melting Point | 217°C |
| Elongation | 60% |
