Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Polycarbonate Sheet & Rod, PC Sheet : Polycarbonate
The toughest thermoplastic available
Virtually unbreakable in use
Fire resistant with very low water absorption
Temperature range -90°C to +120°C
Easy To Weld
Flammability Rating UL 94 HB
Virtually unbreakable in use
Fire resistant with very low water absorption
Temperature range -90°C to +120°C
Easy To Weld
Flammability Rating UL 94 HB
Polycarbonate sheet applications:
Machine guards
Protective screens
Signage
Displays
Illuminated signage
Poster covers
Protective screens
Signage
Displays
Illuminated signage
Poster covers
Note
The polycarbonate sheet is engineering grade material and is not UV resistant

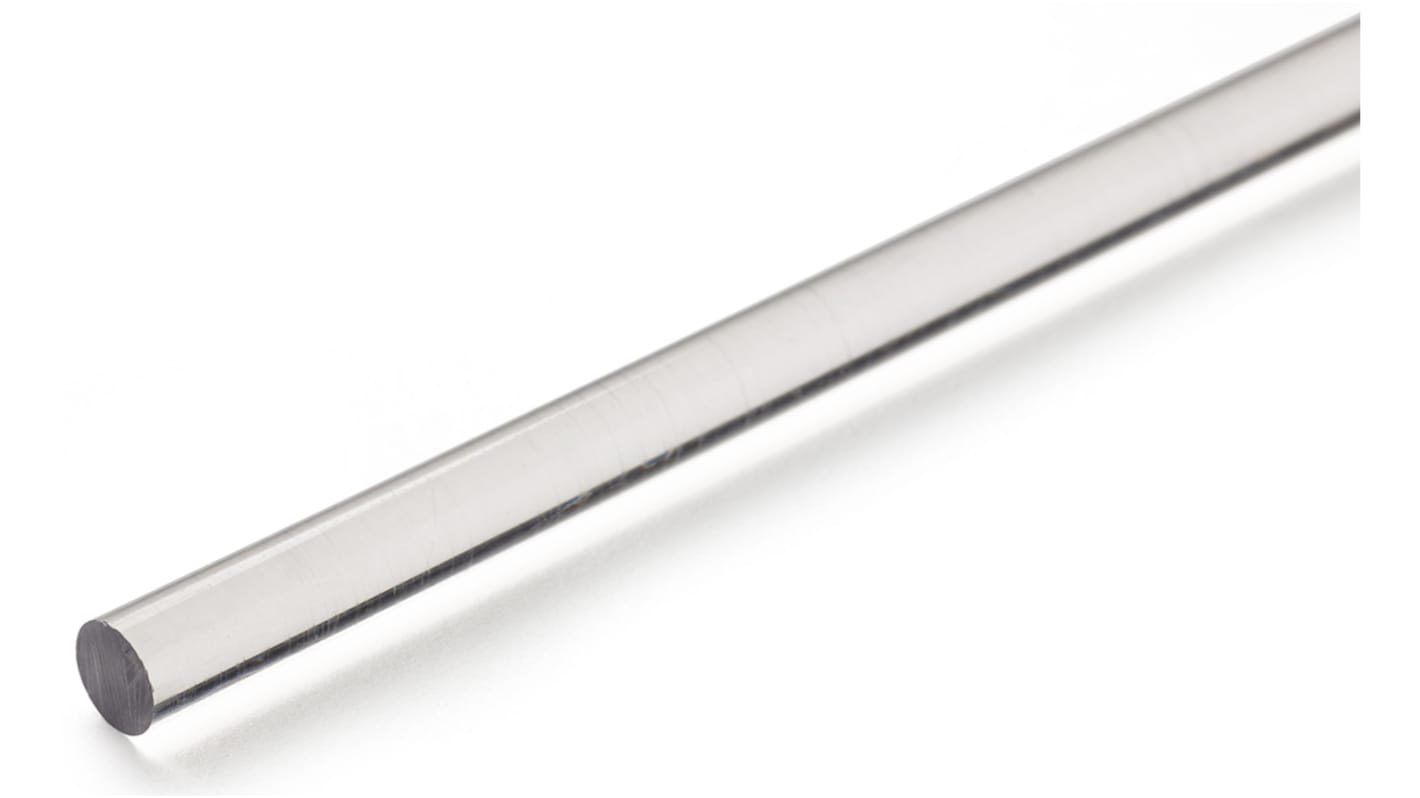

RS PRO Transparent Polycarbonate Rod, 1000 mm x 40mm Diameter
A high quality and virtually unbreakable Polycarbonate rod measuring 1m in length and 40 mm in diameter with a tensile strength of 60 MPa.
The Polycarbonate rod has excellent mechanical strength with high impact resistance, is resistant fire and has a very low water absorption rate.
Polycarbonate is electrically insulating and is safe for use at temperatures up to +140°C with a good level of hear deformation resistance.
Readily machinable and easy to polish the transparent PC rod is easy to bond, easy to weld and suitable for use in a wide range of environments including automotive, mechanical engineering, food industries and medical technology.
Common applications include including machine guards, protective screens, signage, displays, insulators, plug strips and optical components.
The Polycarbonate rod has excellent mechanical strength with high impact resistance, is resistant fire and has a very low water absorption rate.
Polycarbonate is electrically insulating and is safe for use at temperatures up to +140°C with a good level of hear deformation resistance.
Readily machinable and easy to polish the transparent PC rod is easy to bond, easy to weld and suitable for use in a wide range of environments including automotive, mechanical engineering, food industries and medical technology.
Common applications include including machine guards, protective screens, signage, displays, insulators, plug strips and optical components.
Features and Benefits
Polycarbonate rod
1000 x 40mm
Virtually unbreakable in use
Good machinability
Good slide and wear properties
Good chemical resistance
Easy to polish
Fire resistant with very low water absorption
Temperature range -90°C to +140°C
Easy To Weld and easy to bond
Flammability Rating UL 94 HB
High strength
1000 x 40mm
Virtually unbreakable in use
Good machinability
Good slide and wear properties
Good chemical resistance
Easy to polish
Fire resistant with very low water absorption
Temperature range -90°C to +140°C
Easy To Weld and easy to bond
Flammability Rating UL 94 HB
High strength
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Specifications
Attribute | Value |
---|---|
Colour | Transparent |
Length | 1m |
Material | Polycarbonate |
Form | Rod |
Rod Diameter | 40mm |
Density | 1.2g/cm³ |
Tensile Strength | 60 MPa |
Maximum Operating Temperature | +140°C |
Flammability Rating | UL 94 HB |
Hardness | 100 Ball Indentation |
Water Absorption | 0.36% |
Elongation | 100% |
Thermal Conductivity | 0.19W/mK |
