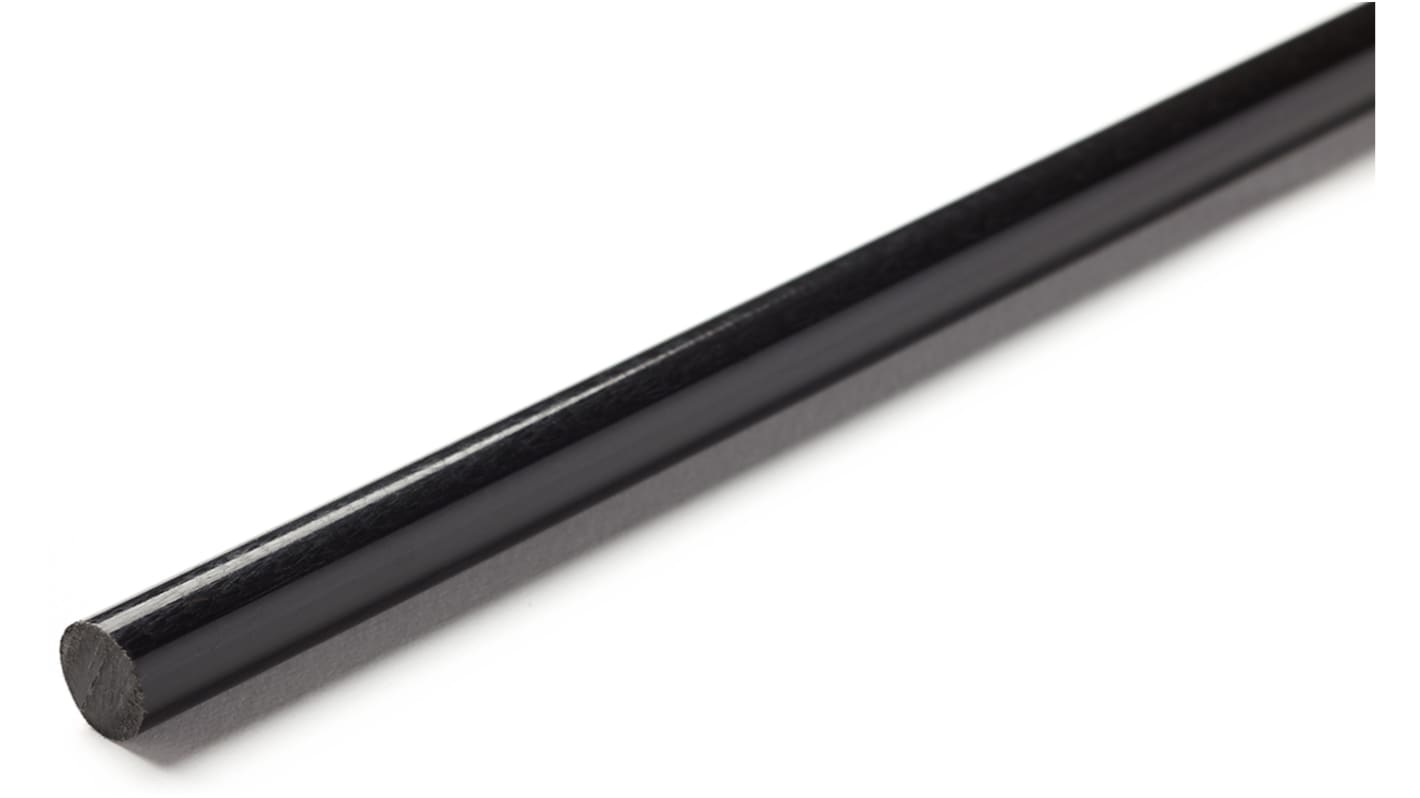

RS PRO Black Nylon Rod, 1m x 36mm Diameter
- RS Stock No.:
- 282-0682
- Brand:
- RS PRO
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 282-0682
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Nylon 6
Black extruded Nylon 6 containing MoS2
Good sliding and dry running properties
Resistant to oils, grease, petrol etc.
Easily welded, bonded, machined and polished
UV and weather resistant
Suitable for friction bearings/strips, gears, castors, pulleys, chains, wheels and machine parts etc
Black in colour
Tolerance thickness sheets: +0.2 mm → +0.9 mm
Good sliding and dry running properties
Resistant to oils, grease, petrol etc.
Easily welded, bonded, machined and polished
UV and weather resistant
Suitable for friction bearings/strips, gears, castors, pulleys, chains, wheels and machine parts etc
Black in colour
Tolerance thickness sheets: +0.2 mm → +0.9 mm
Note
This material is not electrically insulating
Standards
DIN 50 014
Natural & Cast Nylon
Specifications
Attribute | Value |
|---|---|
| Colour | Black |
| Length | 1m |
| Material | Nylon |
| Form | Rod |
| Rod Diameter | 36mm |
| Density | 1.14g/cm³ |
| Tensile Strength | 75 MPa |
| Maximum Operating Temperature | +160°C |
| Flammability Rating | UL 94 HB |
| Elongation | 25% |
| Water Absorption | 8 → 9% |
| Hardness | 107 Ball Indentation |
