- RS Stock No.:
- 752-600
- Brand:
- RS PRO
39 In stock - FREE next working day delivery available
Added
Price 1 Lot of 1
£116.72
(exc. VAT)
£140.06
(inc. VAT)
Lot(s) | Per Lot |
1 - 2 | £116.72 |
3 - 9 | £108.54 |
10 - 29 | £102.71 |
30 + | £97.58 |
- RS Stock No.:
- 752-600
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

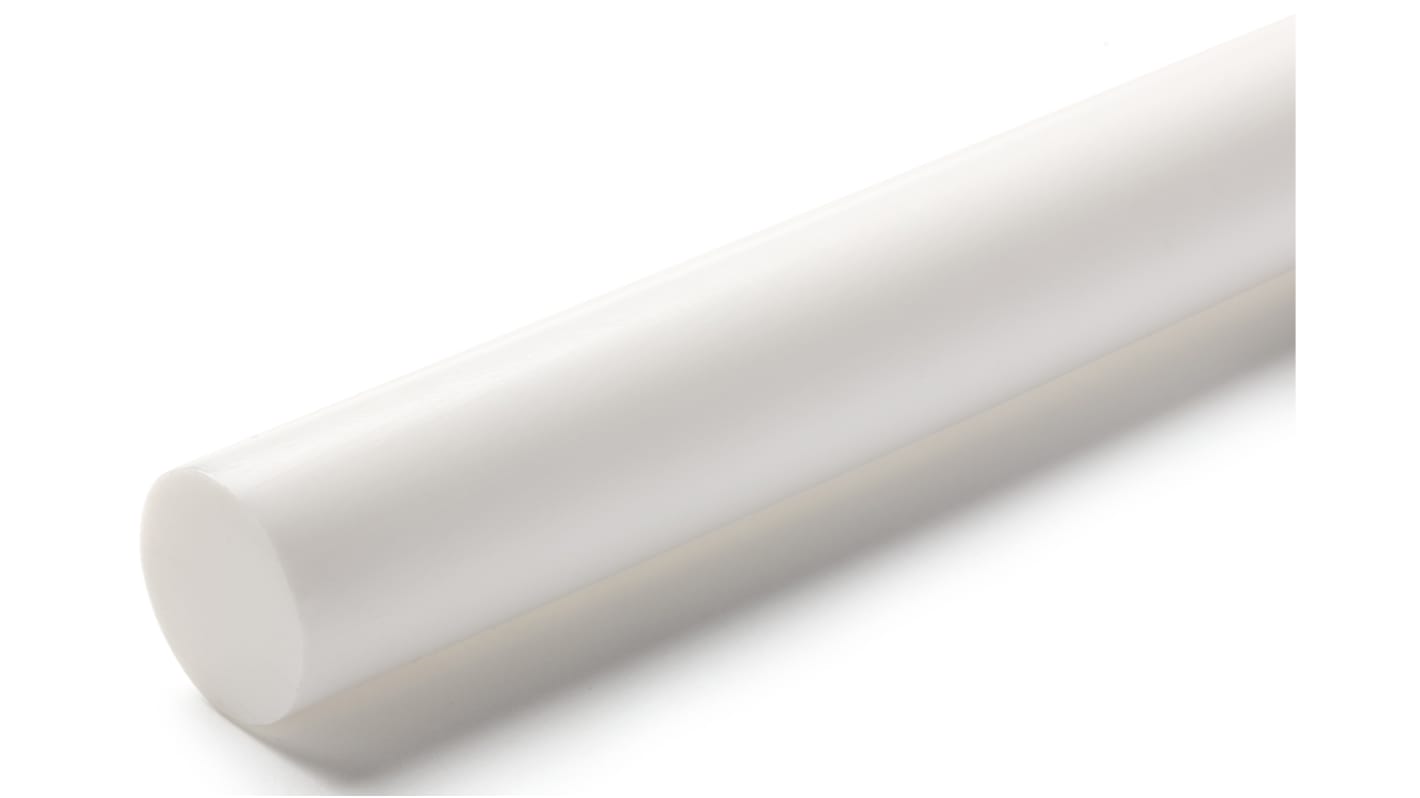

RS PRO Opaque Fluoroplastics PTFE Rod, 1 m x 40 mm Diameter
Use this PTFE (polytetrafluorethylene) rod from RS PRO to make high-quality parts and components. The rod comes in a length of one metre and is highly machinable, so you can easily modify it according to your needs.
PTFE has high dielectric properties, making it ideal for applications that are sensitive to electromagnetic fields. It also has a high level of chemical and radiation resistance and a UL (Underwriters' Laboratories) 94 V-0 fire safety certification, which means it will only burn for 30 seconds. This makes it a safe choice for use in harsh environments.
This product has minimal friction and adhesion, allowing for smooth motion while also minimising noise and heat. You'll commonly find it used in processing and industrial production for gears, bearings and gaskets.
PTFE has high dielectric properties, making it ideal for applications that are sensitive to electromagnetic fields. It also has a high level of chemical and radiation resistance and a UL (Underwriters' Laboratories) 94 V-0 fire safety certification, which means it will only burn for 30 seconds. This makes it a safe choice for use in harsh environments.
This product has minimal friction and adhesion, allowing for smooth motion while also minimising noise and heat. You'll commonly find it used in processing and industrial production for gears, bearings and gaskets.
Features and Benefits
- Opaque colour
- Density of 2.18 to 2.21 g/cm³
- Elongation of 50%
- UL 94 V-0 flammability rating
- Rod form
- Hardness of 30 ball indentation
- Length of 1 m
- PTFE material
- Maximum operating temperature of +260°C
- Rod diameter of 40 mm
- Tensile strength of 25 MPa (megapascals)
- Water absorption of 0.3%
Specifications
Attribute | Value |
---|---|
Colour | Opaque |
Length | 1m |
Material | PTFE |
Form | Rod |
Rod Diameter | 40mm |
Density | 2.18 → 2.21g/cm³ |
Tensile Strength | 25 MPa |
Flammability Rating | UL 94 V-0 |
Maximum Operating Temperature | +260°C |
Elongation | 50% |
Hardness | 30 Ball Indentation |
Water Absorption | 0.3% |
