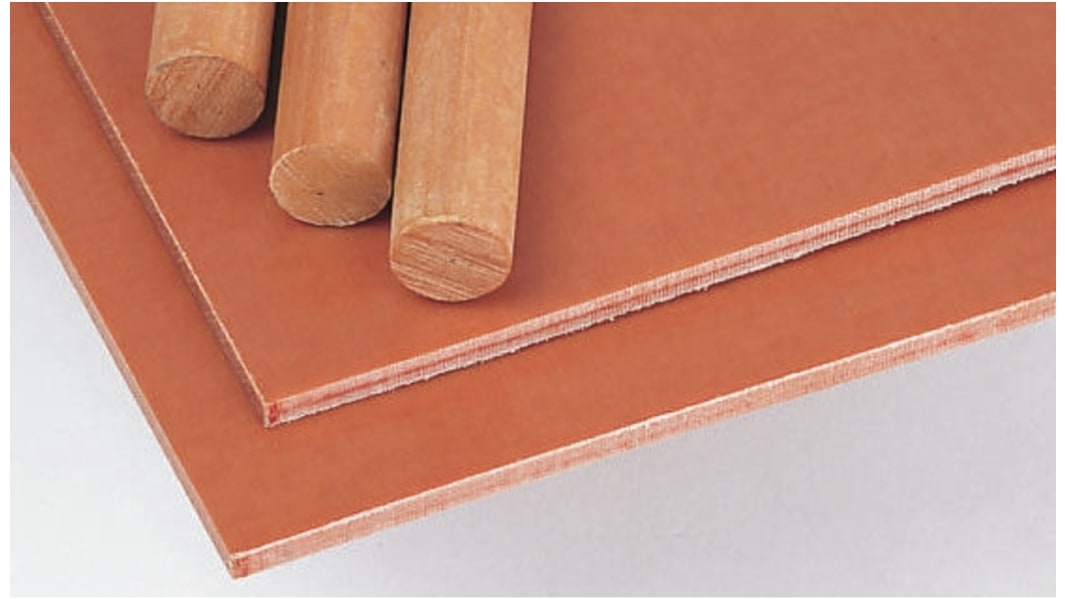

Tufnol Cotton Laminated Plastic, 1.17m x 10mm Diameter

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Tufnol®, Carp & Whale Brand

Carp brand (fine weave)

A laminate plastic based on a fine weave high quality fabric. It combines excellent mechanicals strength and low water absorption with high electrical properties.

Conforms to EN60893 type PF CC 305
Various applications include fine pitched gears and other precision components

Whale brand (medium weave)

A medium weave high quality fabric laminated plastic. Whale is the most widely used general purpose phenolic fabric.

Conforms to EN60893 type PF CC 203
Good mechanical and electrical strength
Frequently used for larger and more rugged components including rollers, thrust washers, slidways, jigs and fixtures

Standards

Carp: EN60893 type PF CC 305, Whale: EN60893 type PF CC 203

Standards

EN 60893 Type PF CC 305

Specifications
Attribute Value
Length 1.17m
Material Laminated Plastic
Laminated Yes
Laminate Material Fine Weave Cotton, Phenolic Resin
Form Rod
Rod Diameter 10mm
Density 1.36g/cm³
Cross Breaking Strength 150MPa
Impact Strength 8.6kJ/m²
Thermal Conductivity 0.37W/mK
Water Absorption 2.5mg/cm³
Maximum Operating Temperature +120°C
6 In stock for FREE next working day delivery
Price 1 Lot of 2
£ 36.27
(exc. VAT)
£ 43.52
(inc. VAT)
Lot(s)
Per Lot
Per unit*
1 - 2
£36.27
£18.135
3 - 5
£33.73
£16.865
6 - 11
£31.91
£15.955
12 +
£29.01
£14.505
*price indicative
