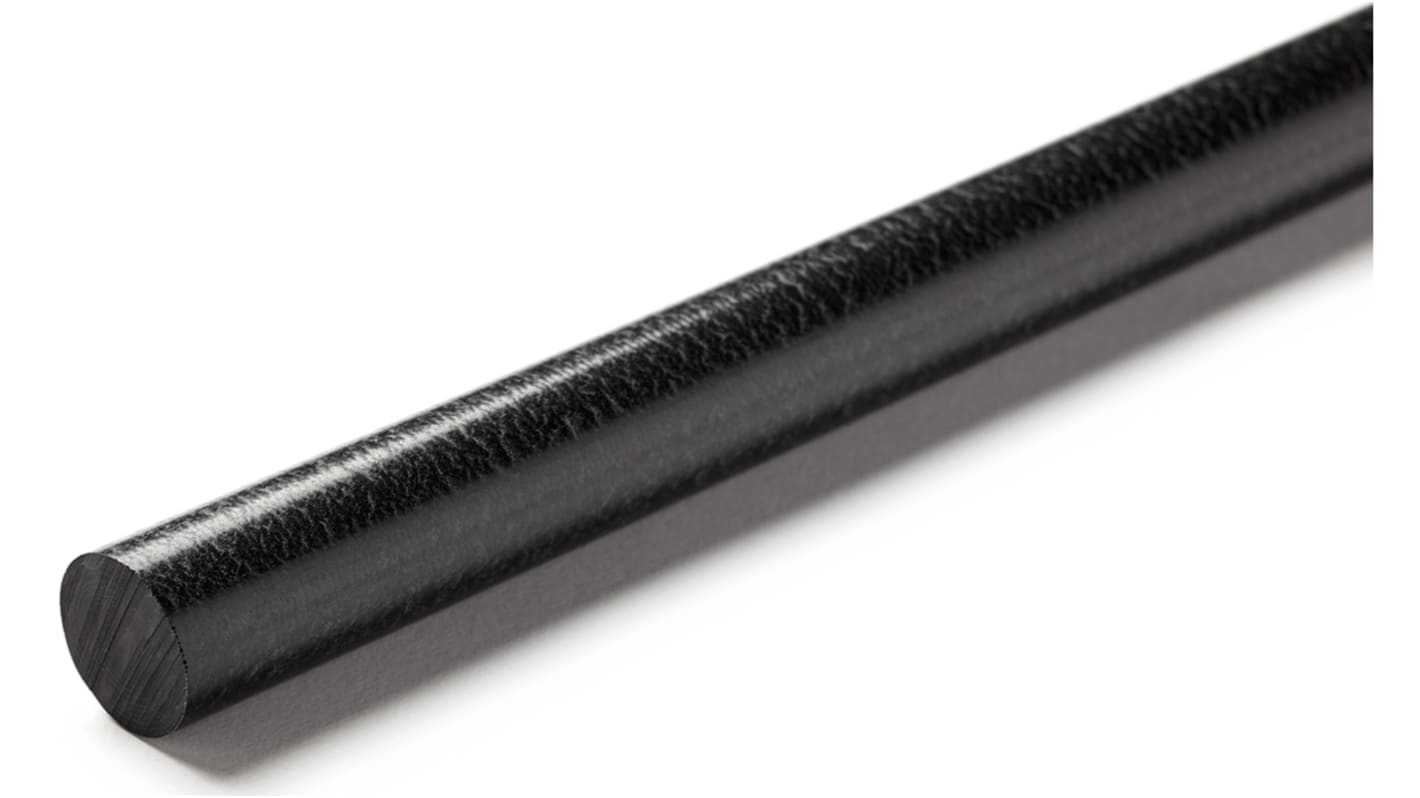

RS PRO Black Polyetheretherketone PEEK Rod, 300mm x 20mm Diameter
- RS Stock No.:
- 514-732
- Brand:
- RS PRO
Available to back order for despatch when stock is available
Added
Price Each
£66.70
(exc. VAT)
£80.04
(inc. VAT)
| Units | Per unit |
| 1 - 2 | £66.70 |
| 3 - 9 | £62.05 |
| 10 - 29 | £58.70 |
| 30 + | £53.36 |
- RS Stock No.:
- 514-732
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PEEK CF30
PEEK CF30 is a 30% carbon fibre reinforced semi-crystalline, high performance thermoplastic for extremely demanding applications. Suitable for use in Mechanical engineering, automotive industry, nuclear and vacuum technology, transport and conveyor technology, textile , packaging and paper processing machinery, precision engineering, chemical engineering, aircraft and aerospace industries
High thermal mechanical strength
Excellent creep resistance
good chemical resistance
Hydrolysis resistant
Excellent rigidity
High dimensional stability
Excellent wear resistance
Not electrically insulating
Flame retardant UL94 V-0
Excellent creep resistance
good chemical resistance
Hydrolysis resistant
Excellent rigidity
High dimensional stability
Excellent wear resistance
Not electrically insulating
Flame retardant UL94 V-0
Specifications
Attribute | Value |
|---|---|
| Colour | Black |
| Length | 300mm |
| Material | PEEK |
| Form | Rod |
| Rod Diameter | 20mm |
| Density | 1.44g/cm³ |
| Tensile Strength | 215 MPa |
| Maximum Operating Temperature | +260°C |
| Flammability Rating | UL 94 V-0 |
| Hardness | 255 Ball Indentation |
| Water Absorption | 0.1% |
| Elongation | 1.5% |
