Product Details

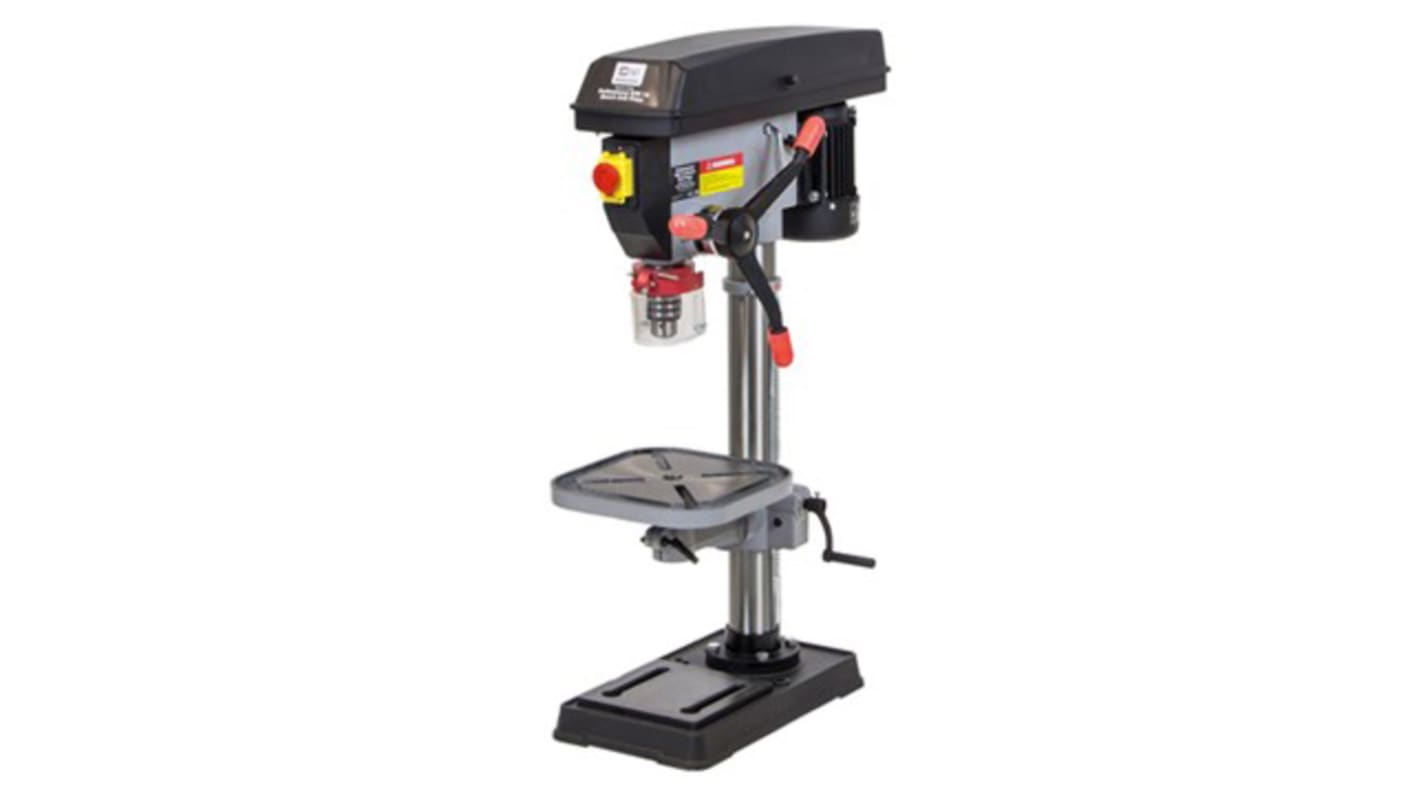

SIP Professional Pillar Drill Press
The SIP professional pillar drill press is a bench mount drill capable of drilling various metals, woods and plastics. This heavy-duty device has a fan-cooling induction motor of 550W and requires a supply voltage of 230V. It is designed for reliability and maximum performance.
Features and Benefits
16mm maximum drilling depth (mild steel)
16 working speeds (180rpm-2270rpm)
Cast iron body
Cast motor housing for improved heat dissipation
Chuck capacity ranging between 3mm to 16mm
Bench standing design
Motor features thermal protection
Integrated magnetic NVR switch
One-piece build 'soft-grip' handles
Easy-lock motor speed adjustment
Sturdy cast iron tilting table with slots
Type G- British plug
Net weight is 50kg
16 working speeds (180rpm-2270rpm)
Cast iron body
Cast motor housing for improved heat dissipation
Chuck capacity ranging between 3mm to 16mm
Bench standing design
Motor features thermal protection
Integrated magnetic NVR switch
One-piece build 'soft-grip' handles
Easy-lock motor speed adjustment
Sturdy cast iron tilting table with slots
Type G- British plug
Net weight is 50kg
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
---|---|
Drill Type | Pillar Drill |
Bench/Floor Mount | Bench |
Wattage | 550W |
Voltage Rating | 230V |
Chuck Size | 3 → 16mm |
Table Size | 290 x 290mm |
Maximum Chuck to Table Distance | 405mm |
Overall Height | 990mm |
Collar Diameter | 55mm |
Maximum Speed | 2770rpm |
Maximum Stroke | 83mm |
Throat Depth | 180mm |
Drilling Capacity Mild Steel | 16mm |
Plug Type | Type G - British 3-pin |
