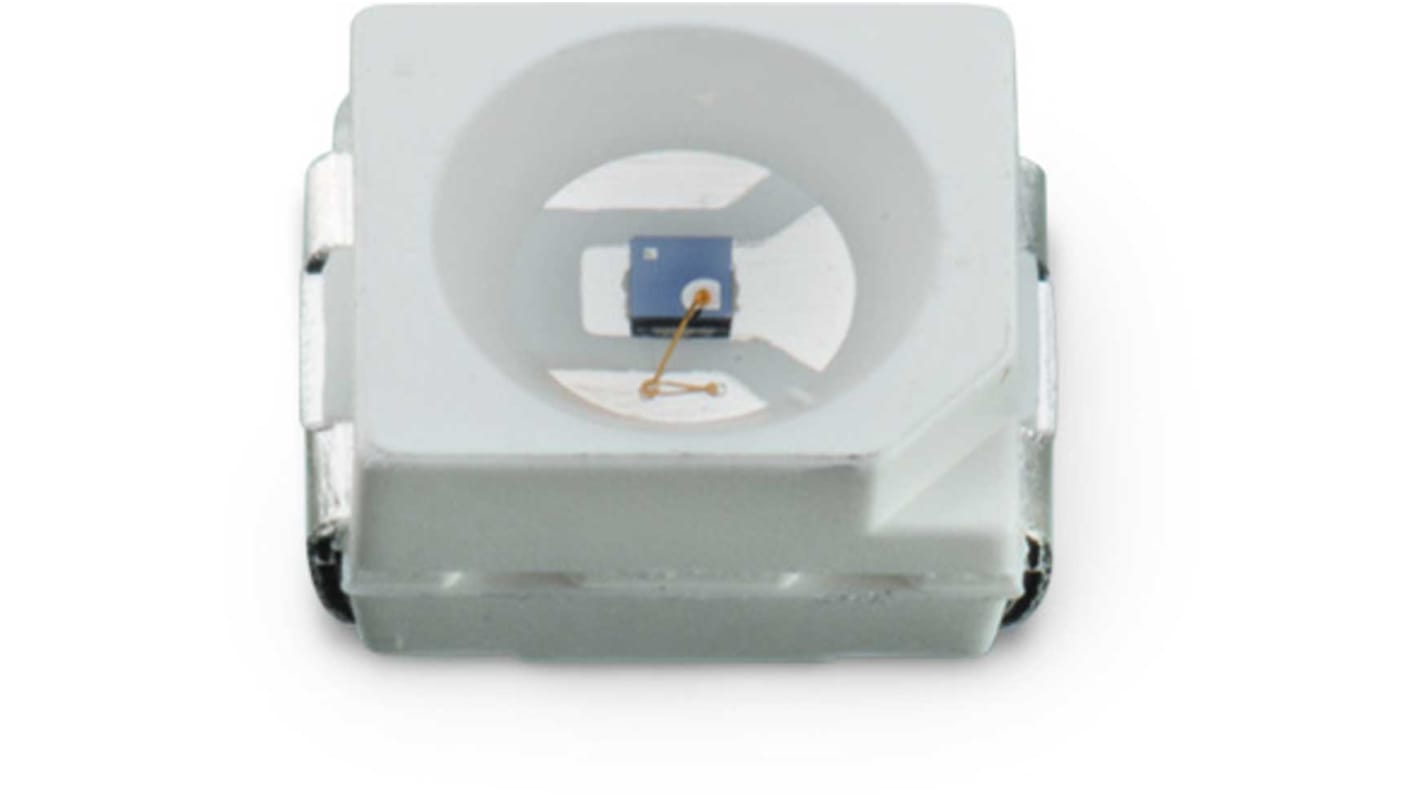

1541411NBA210 Wurth Elektronik, WL-STTW 120 ° IR + Visible Light Phototransistor, Surface Mount 2-Pin 3528 package
- RS Stock No.:
- 184-7189P
- Mfr. Part No.:
- 1541411NBA210
- Brand:
- Wurth Elektronik
950 In stock - FREE next working day delivery available
Added
Price Each (Supplied on a Reel) Quantities below 150 on continuous strip
£0.268
(exc. VAT)
£0.322
(inc. VAT)
| Units | Per unit |
| 100 - 475 | £0.268 |
| 500 - 975 | £0.231 |
| 1000 + | £0.206 |
- RS Stock No.:
- 184-7189P
- Mfr. Part No.:
- 1541411NBA210
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
High sensitivity
Fast response time
Perfect match with IR and visible emitter
compatible with automatic placement machines
High reliability
Standard PLCC 2 package
Applications
Light sensors
Position sensors
Counters
Miniature switch
Encoder
Photo interrupter
Fast response time
Perfect match with IR and visible emitter
compatible with automatic placement machines
High reliability
Standard PLCC 2 package
Applications
Light sensors
Position sensors
Counters
Miniature switch
Encoder
Photo interrupter
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Number of Channels | 1 |
| Maximum Dark Current | 100 (Collector Emitter)nA |
| Angle of Half Sensitivity | 120 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Package Type | 3528 |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Collector Current | 20mA |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Spectral Range of Sensitivity | 400 → 1100 nm |
| Width | 2.8mm |
| Output Signal Type | PLCC |
| Height | 1.9mm |
| Length | 3.5mm |
| Emitter Collector Voltage | 5V |
| Series | WL-STTW |
| Collector Emitter Voltage | 35V |
