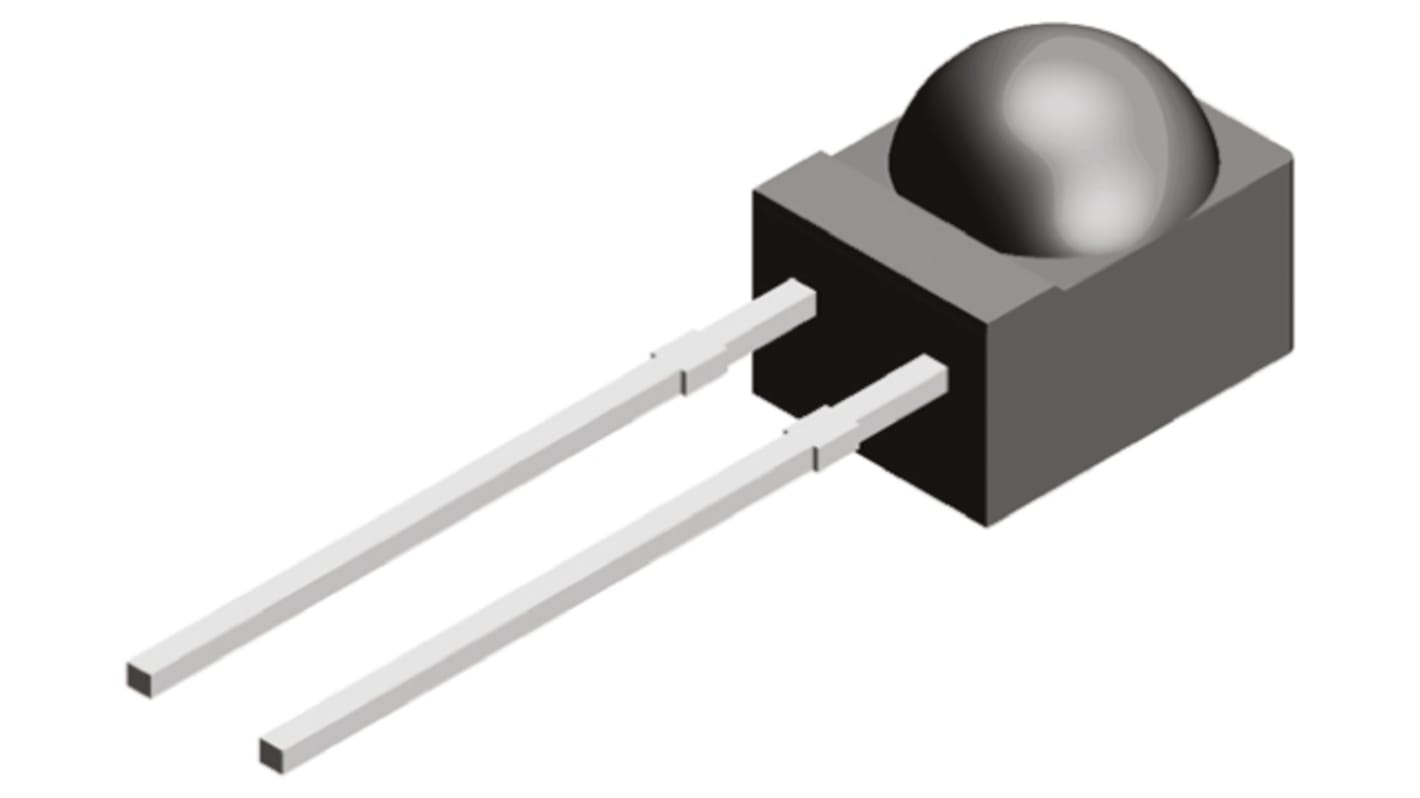

Vishay, BPV23NF IR Si PIN Photodiode, ±60 °, Through Hole

  • RS Stock No. 165-6969
  • Mfr. Part No. BPV23NF
  • Brand Vishay
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

BPV23 Series PIN Photodiodes

The BPV23 series, from Vishay Semiconductor, is a group of silicon PIN photodiodes. They are in a through-hole side-looking package with a black plastic lens and daylight filter. Its domed lens enables a higher sensitivity that flat lens packages.

Features of the BPV23 PIN photodiodes:
Side looking package
Dimensions: 4.5 x 5 x 6 mm
Radiant sensitive area: 4.4 mm²
High radiant sensitivity
Fast response times
Angle of half intensity: 60°

IR Photodiodes, Vishay Semiconductor

Specifications
Attribute Value
Spectrums Detected Infrared
Wavelength of Peak Sensitivity 940nm
Mounting Type Through Hole
Number of Pins 2
Diode Material Si
Minimum Wavelength Detected 790nm
Maximum Wavelength Detected 1050nm
Angle of Half Sensitivity ±60 °
Peak Photo Sensitivity 0.6A/W
3000 In stock for FREE next working day delivery
Price Each (In a Bag of 1000)
£ 0.259
(exc. VAT)
£ 0.311
(inc. VAT)
Units
Per unit
Per Bag*
1000 +
£0.259
£259.00
*price indicative
