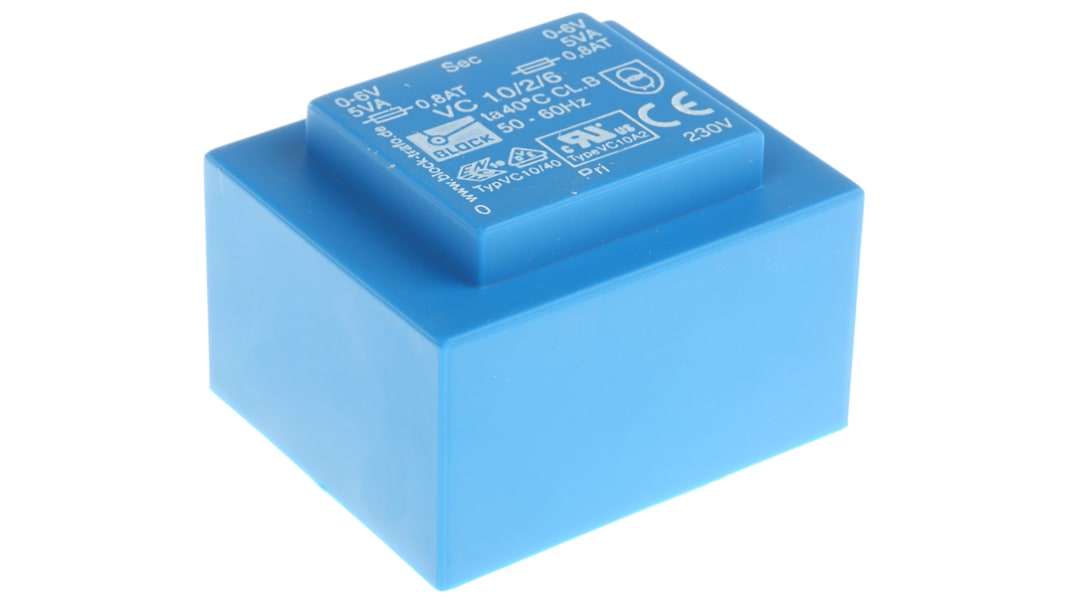

Block 6V ac 2 Output Through Hole PCB Transformer, 10VA
- RS Stock No.:
- 347-2593
- Mfr. Part No.:
- VC 10/2/6
- Brand:
- Block
31 In stock - FREE next working day delivery available
Added
Price Each
£14.24
(exc. VAT)
£17.09
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £14.24 |
| 10 - 49 | £11.72 |
| 50 - 99 | £11.38 |
| 100 - 199 | £10.94 |
| 200 + | £10.75 |
- RS Stock No.:
- 347-2593
- Mfr. Part No.:
- VC 10/2/6
- Brand:
- Block
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB Mount 230Vac Primary VC/VCM Series
Single and twin secondary windings for series or parallel connection
Vacuum resin moulded to UL94-V0 rating
Low inter-winding capacitance
Low radiated noise
100% electrical and flash tested
Extra fixing points for secure board mounting (25 VA and 36 VA)
Vacuum resin moulded to UL94-V0 rating
Low inter-winding capacitance
Low radiated noise
100% electrical and flash tested
Extra fixing points for secure board mounting (25 VA and 36 VA)
Note
To conform to VDE 0550,UL506 all transformers with 2 x 24V outputs should not have their secondaries connected in series.
Standards
EN 61 558 IEC 61558
Approvals
ENEC, UL recognised
Specifications
Attribute | Value |
|---|---|
| Secondary Voltage Rating | 6V ac |
| Power Rating | 10VA |
| Primary Voltage Rating | 230V ac |
| Number of Outputs | 2 |
| Length | 51mm |
| Width | 34.6mm |
| Depth | 43mm |
| Dimensions | 51 x 34.6 x 43mm |
| Weight | 280g |
| Mounting Type | Through Hole |
| Maximum Temperature | +40°C |
