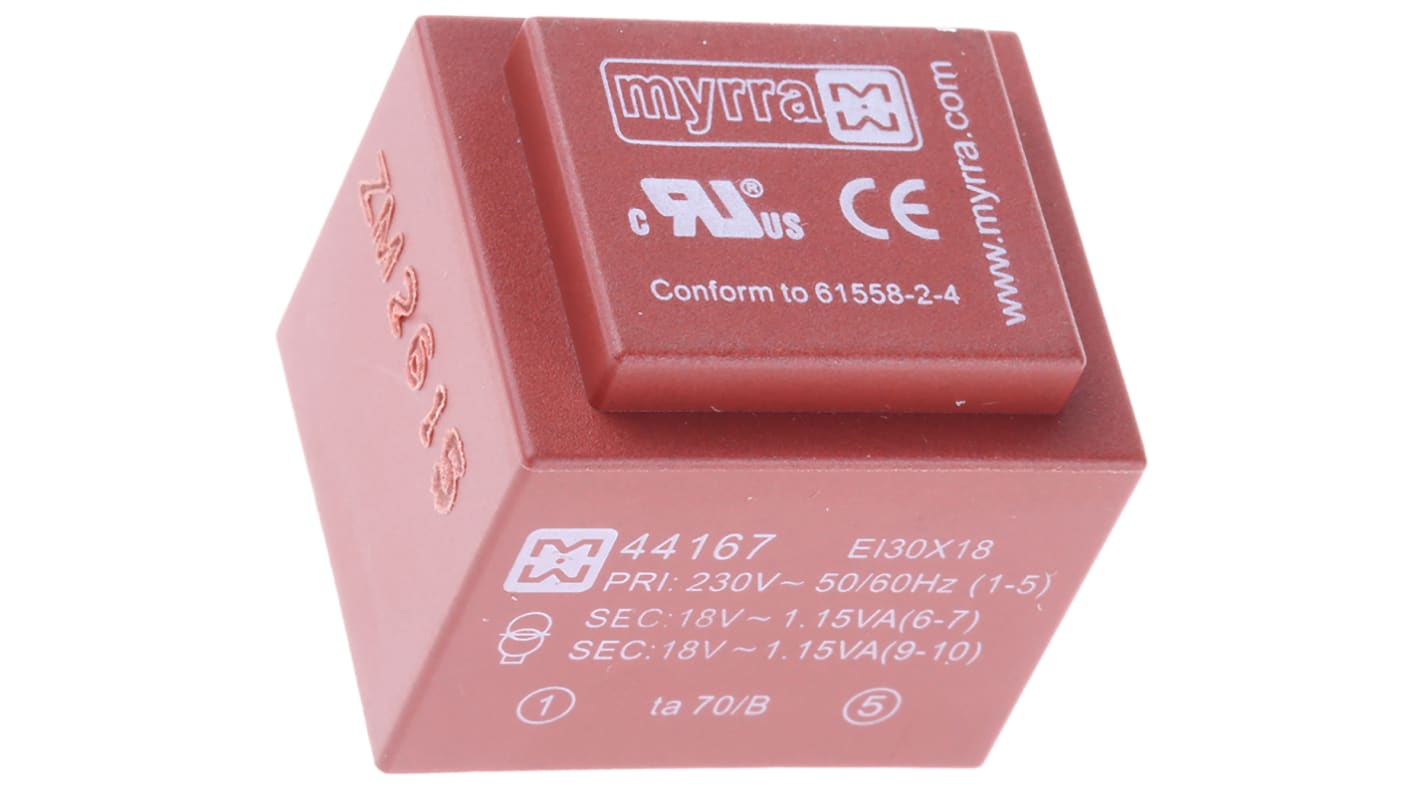

Myrra 18V ac 2 Output Through Hole PCB Transformer, 2.5VA
- RS Stock No.:
- 173-9822
- Mfr. Part No.:
- 44167
- Brand:
- Myrra
6 In stock - FREE next working day delivery available
38 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.43
(exc. VAT)
£5.32
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £4.43 |
| 25 - 49 | £4.06 |
| 50 - 99 | £3.89 |
| 100 - 249 | £3.69 |
| 250 + | £3.49 |
- RS Stock No.:
- 173-9822
- Mfr. Part No.:
- 44167
- Brand:
- Myrra
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
Type EI 30 - 1 VA → 2.3 VA series 44000 transformers
From Myyra, the 44000 Series of type EI transformers are professional safety transformers featuring an insulation of above 4000V. Inherently short circuit proof and comprising of non-flammable and self-extinguishing materials, the 44000 series of transformers are extrememly reliable.
Features and Benefits:
• Professional safety transformers with insulation above 4000V.
• For installation on printed circuit boards (according to European grid).
• Coupling in series or parallel.
• Vacuum-filled with resin to ensure materials withstand aging.
• Unit and 100% control on automated line.
• Secondary voltages are nominal load voltages on resistive loads.
• For installation on printed circuit boards (according to European grid).
• Coupling in series or parallel.
• Vacuum-filled with resin to ensure materials withstand aging.
• Unit and 100% control on automated line.
• Secondary voltages are nominal load voltages on resistive loads.
Standards
UL 94-V0; VDE 0551; IEC 742
Approvals
UL, VDE
Encapsulated – Toroidal
Note
Fixing screws not provided
Specifications
Attribute | Value |
|---|---|
| Secondary Voltage Rating | 18V ac |
| Power Rating | 2.5VA |
| Primary Voltage Rating | 230V ac |
| Number of Outputs | 2 |
| Length | 32.6mm |
| Width | 27.6mm |
| Depth | 29.8mm |
| Dimensions | 32.6 x 27.6 x 29.8mm |
| Weight | 70g |
| Mounting Type | Through Hole |
| Maximum Temperature | +70°C |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
